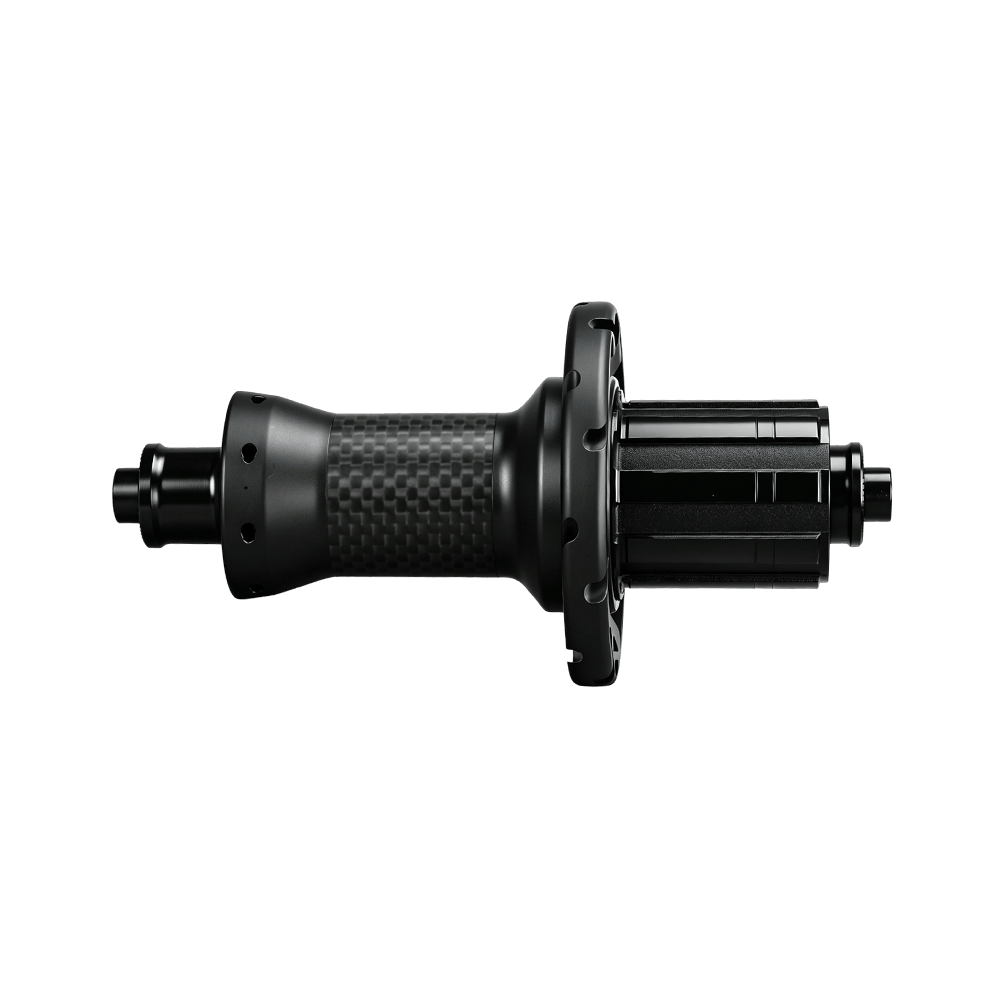

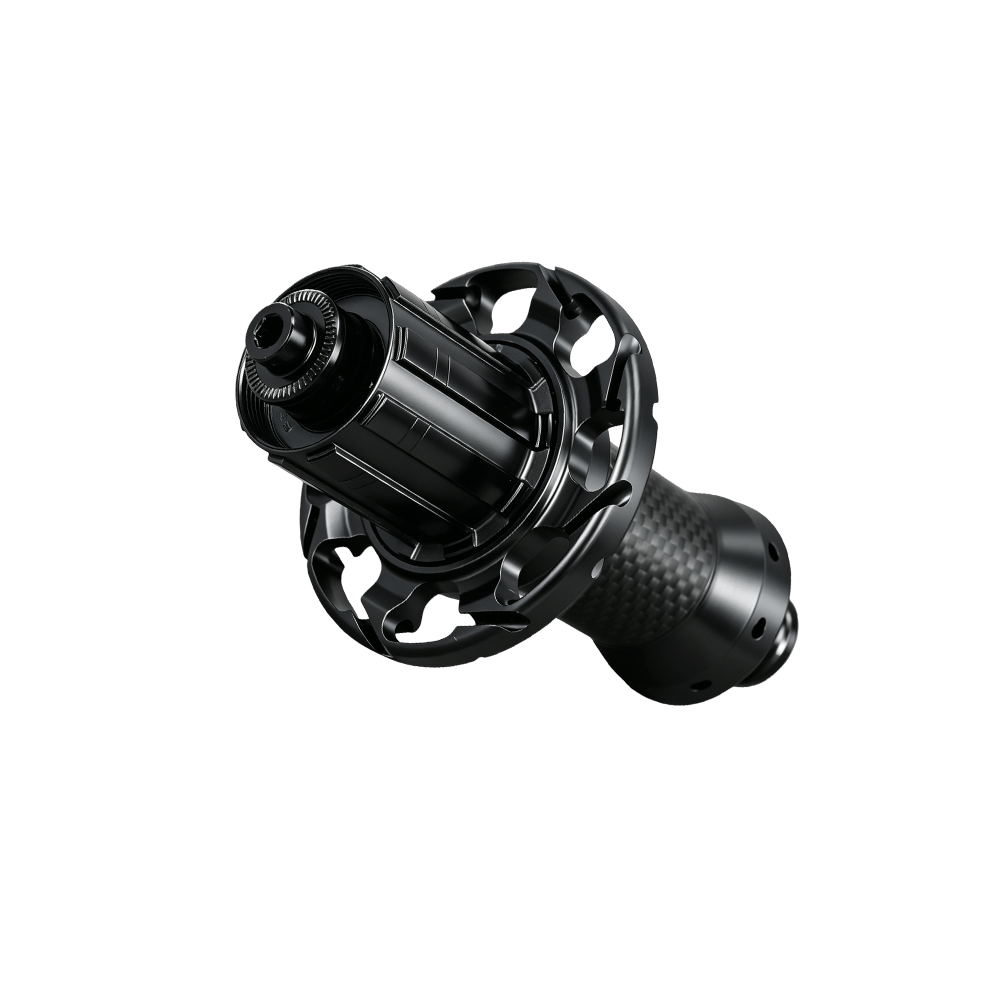

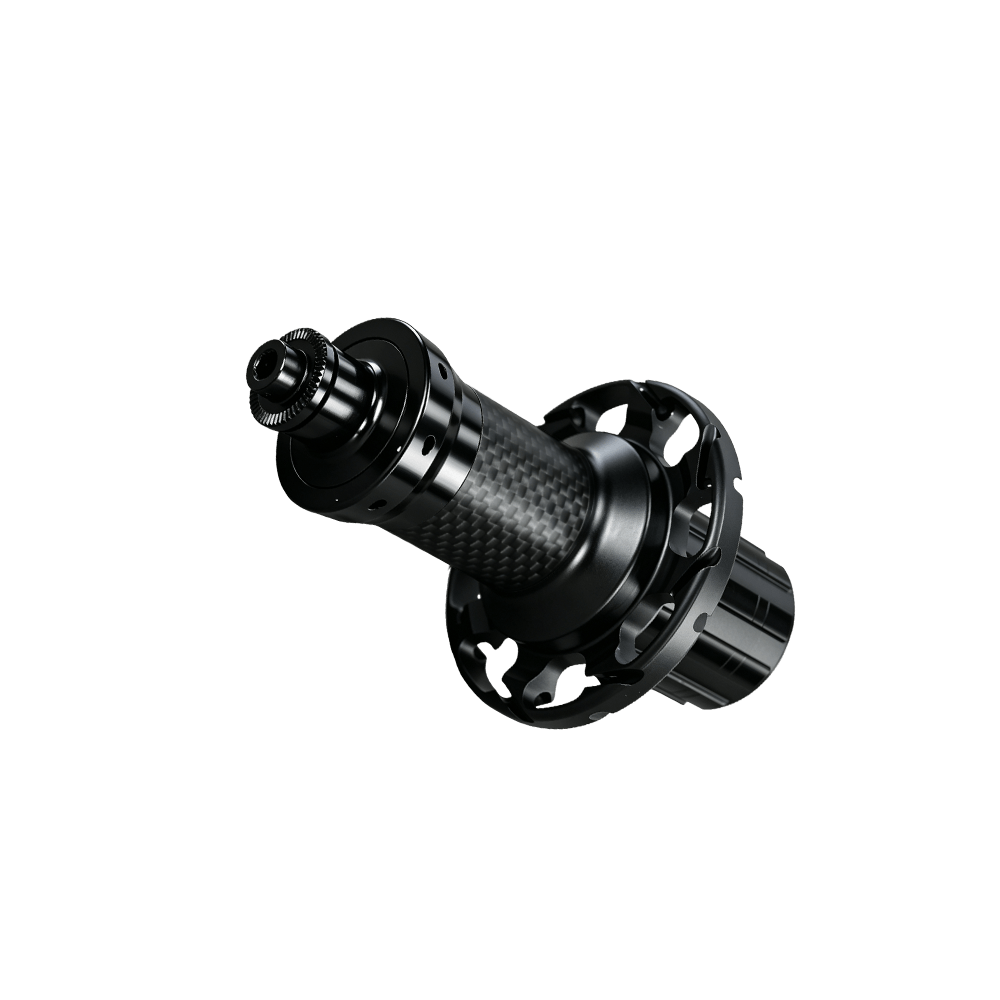

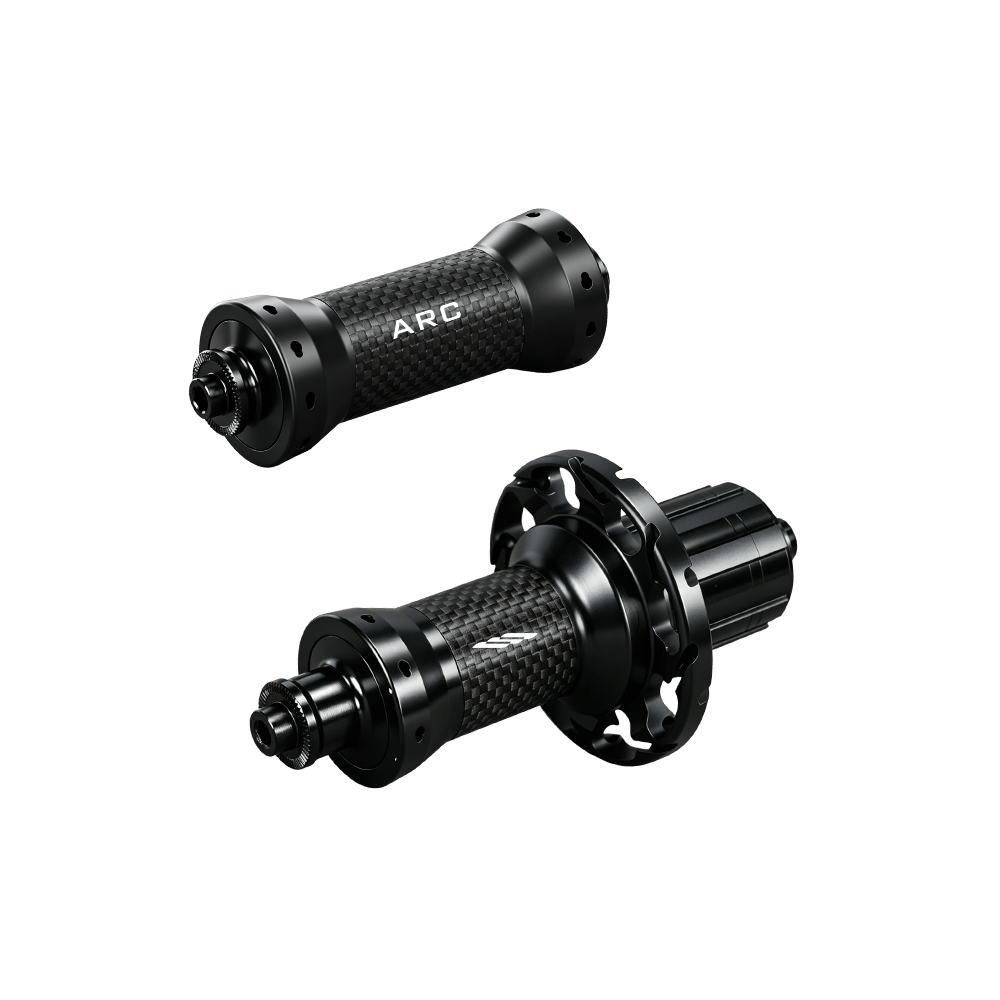

ARC RT-035FCB/RCB Carbon Straight-Pull Road Hub Set

RT-035F / RCB

Specification

Freehub system

Spoke holes

Bearing

Clear

Inquiry

Product Details

Built for Lightweight. Straight-Pull Road.Performance

Designed specifically for modern road rim brake wheel builds, RT-035FCB/RCB combines a lightweight AL6061-T6 aluminum and carbon tube construction with a dedicated straight-pull hub configuration. Featuring a 20H front and 24H rear spoke layout with 1:1 and 2:1 configurations, the hubset is engineered to optimize spoke tension distribution, wheel stiffness, and structural efficiency while keeping the complete hubset weight to just 358.3g.

Full-Surface Ratchet Engagement

36T / 54T Ratchet System for Consistent Power Transfer

Compared with conventional pawl systems, the larger contact area distributes drivetrain loads more evenly, reducing localized stress while improving durability, engagement stability, and pedaling efficiency under demanding riding conditions.

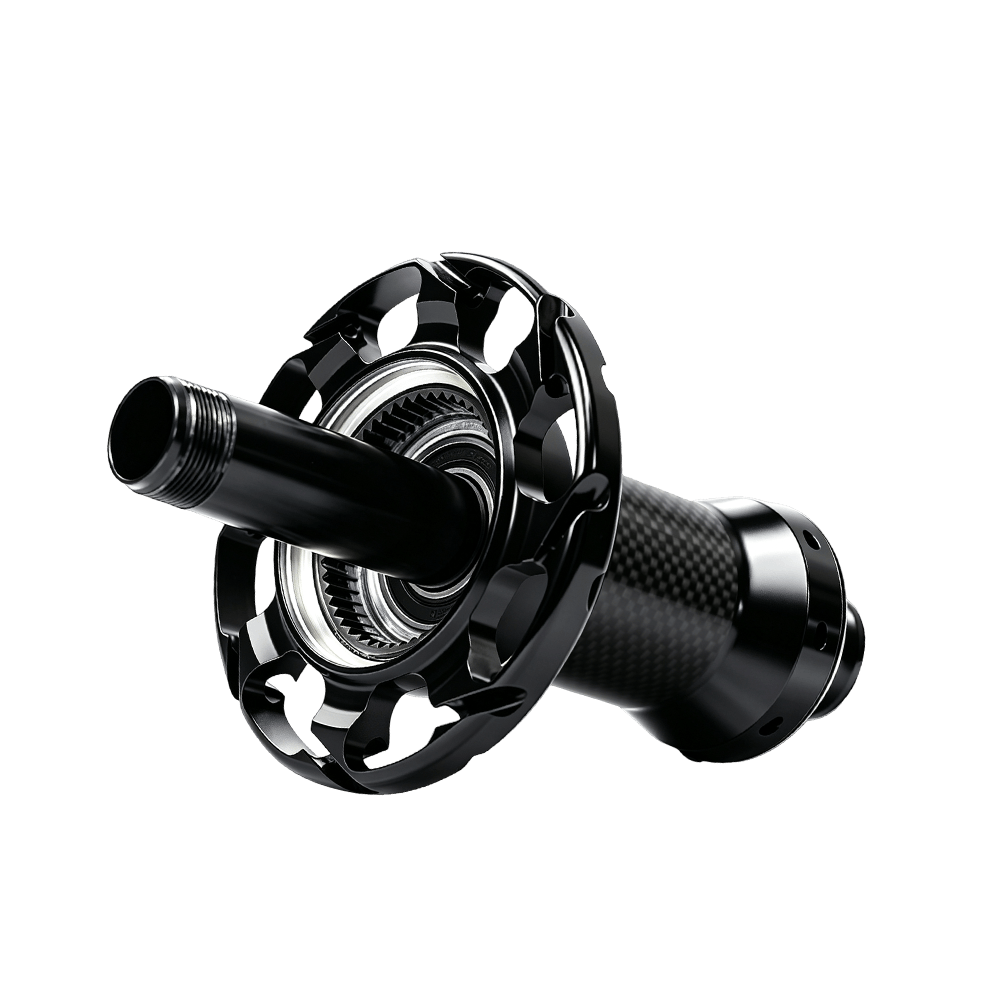

Patented One-Piece Ratchet Architecture

Integrated Design for Higher Strength & Reduced Failure Risk

ARC's patented one-piece ratchet design integrates the engagement structure into a single precision-engineered component. The system increases structural rigidity, reduces overall weight, and improves machining accuracy. The simplified construction also enhances long-term reliability while making assembly and maintenance more efficient.

Technical Specification

#	Type	Details
1	Hub Shell Material	AL6061-T6 Aluminum alloy + carbon tube（100% Forging）
2	Axle Material	AL7075 aluminum alloy（100% Forging）
3	Freehub Body Material	AL7075 aluminum alloy（100% Forging）
4	End Cap Material	AL7075 aluminum alloy（100% Forging）
5	Disc Brake Interface	Road V-brake direct-pull hub
6	Hole Count	F-20H(1:1)/R-24H(2:1)
7	Hole Diameter	14G
8	Surface Color	Sandblasted anodized black
9	Freehub Body Color	Anodized Black
10	Bearing Configuration	S&S steel bearings (standard), ENDURO, CeramicSpeed
11	Hub Structure	36T ratchet/54T ratchet
12	Freehub Body Standard	Shimano HG/SRAM XDR
13	Quick Release Included	QR019 Road bike quick release
14	O.L.D.	F-9100MM/R-10130MM
15	Weight	358.3g±5g

Precision Materials.

Flexible Configuration.

Engineered with a lightweight aluminum-carbon composite hub shell and high-strength aerospace-grade aluminum components to meet the demands of modern road rim brake wheel builds.

✓ High-Strength Aerospace-Grade 7075 Aluminum Alloy Axle & Freehub Body
The axle, freehub body, and end caps are manufactured from aerospace-grade AL7075 aluminum alloy, enhancing structural stiffness and durability while maintaining a lightweight construction.

✓ 20H / 24H Straight-Pull Configuration
The 20-hole front and 24-hole rear configuration supports 1:1 and 2:1 spoke layouts, providing flexible options for optimizing spoke tension distribution, wheel stiffness, and overall wheel balance.

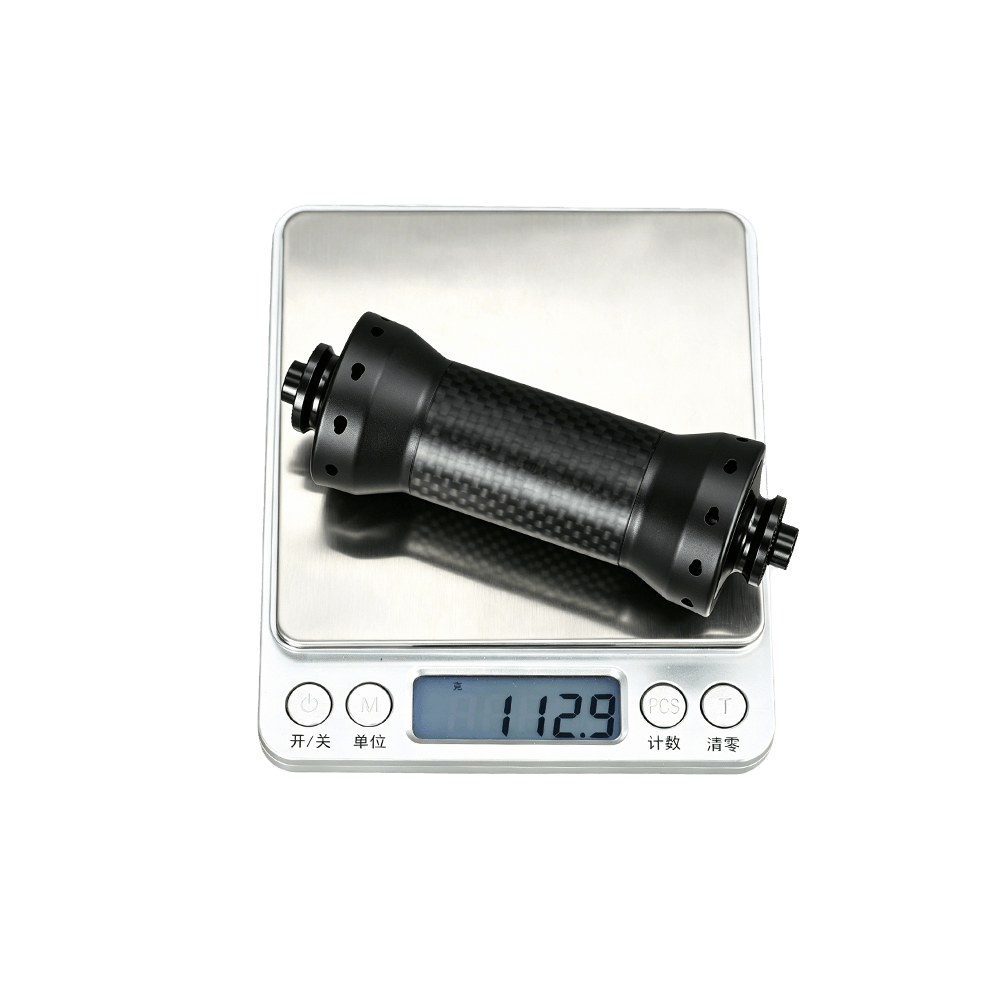

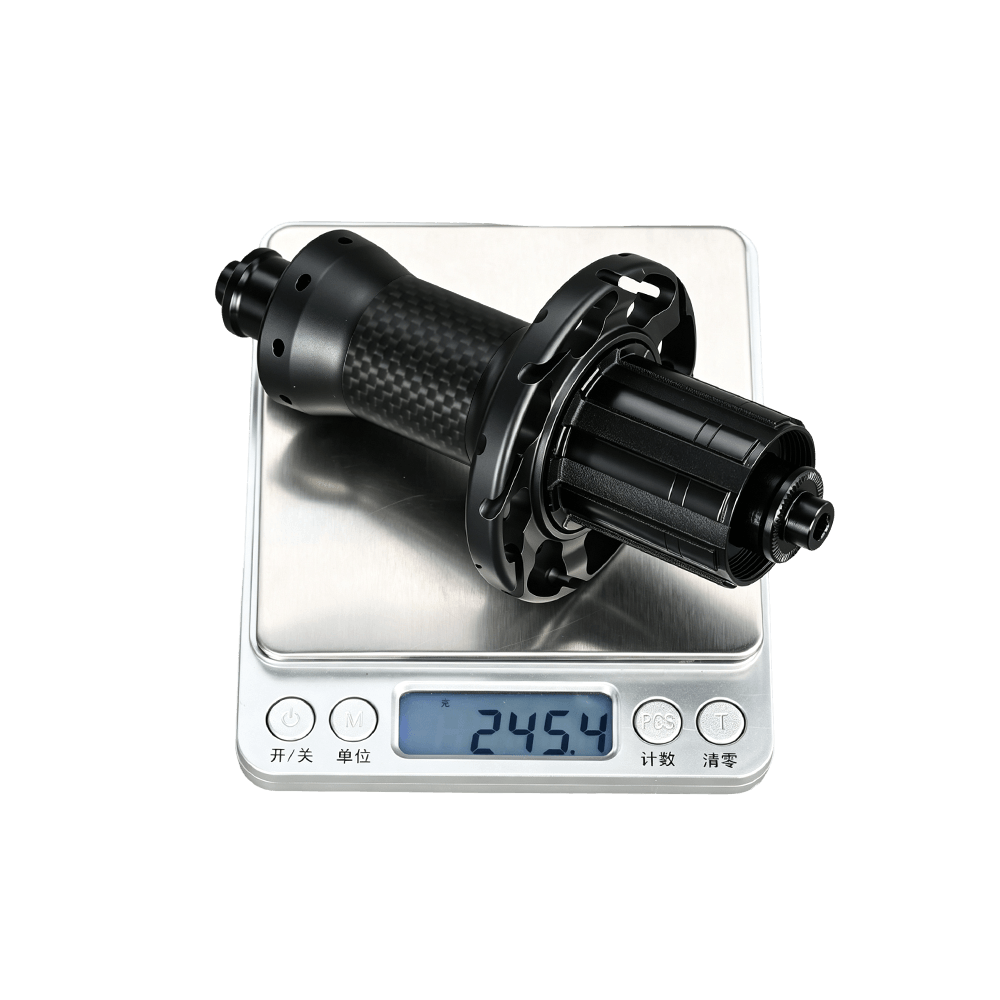

✓ Lightweight 358.3g±5g Hubset Construction
A carefully optimized aluminum-carbon composite structure keeps the complete hubset weight to just 358.3g±5g, reducing rotational mass while maintaining the structural strength and reliability required for responsive road performance.

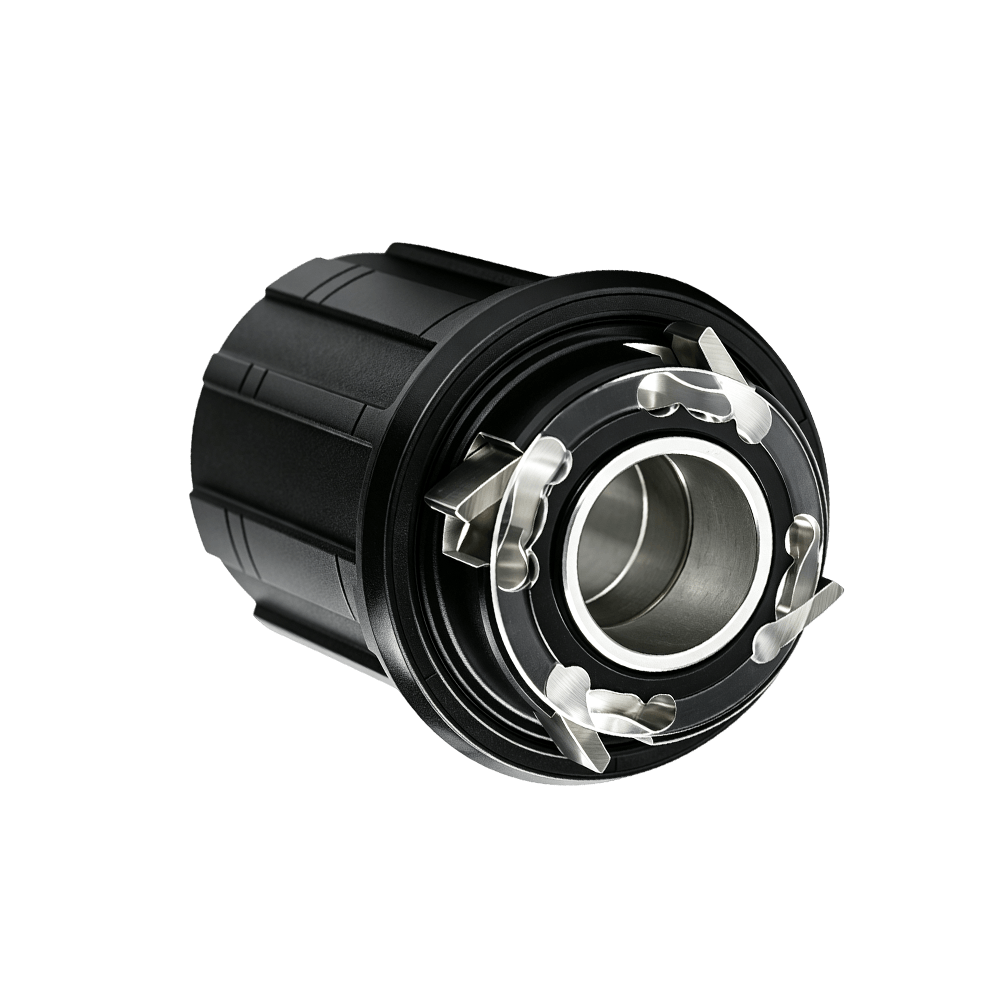

✓ Multiple Freehub Standards Available
HG and XDR freehub options support different road drivetrain configurations, providing flexible compatibility for a wide range of modern road wheelset applications.

✓ Road Rim Brake & Quick-Release Compatibility
Designed for 100mm front and 130mm rear spacing, with the QR019 road quick-release system, providing compatibility with traditional road rim brake wheel builds.
