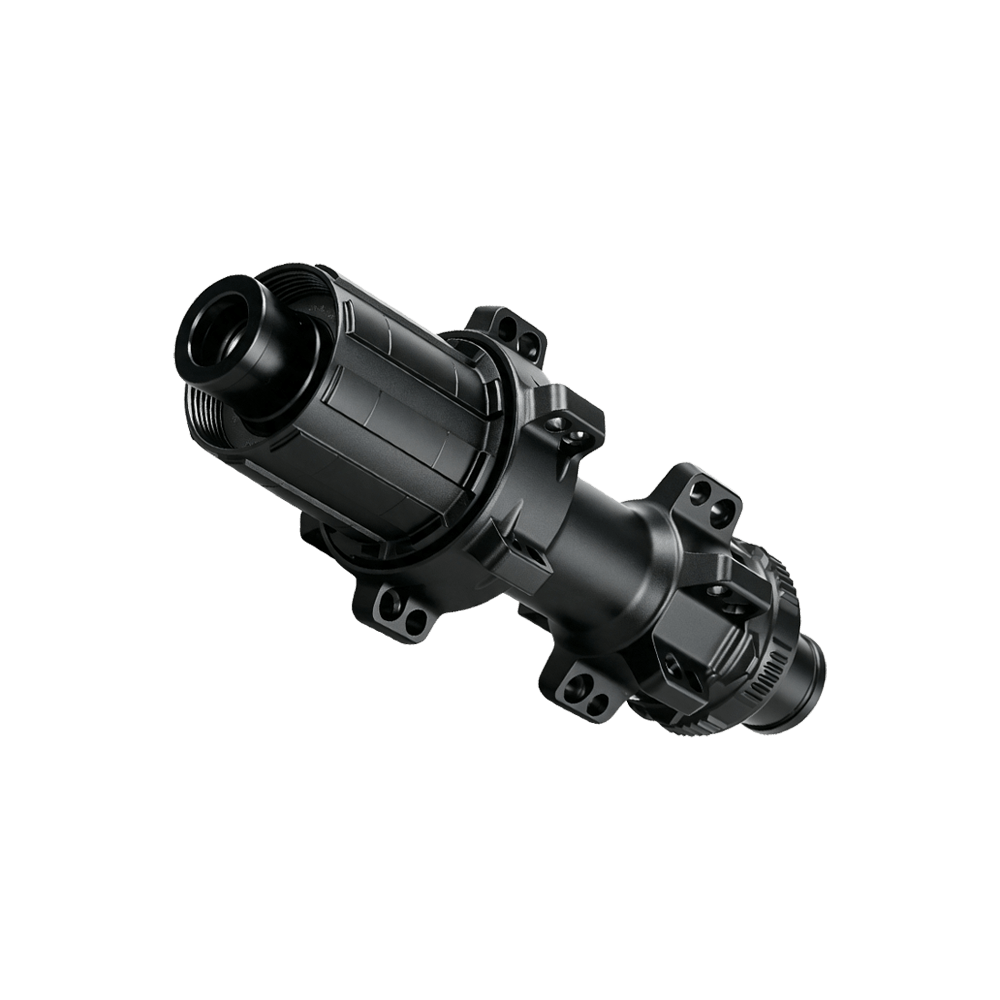

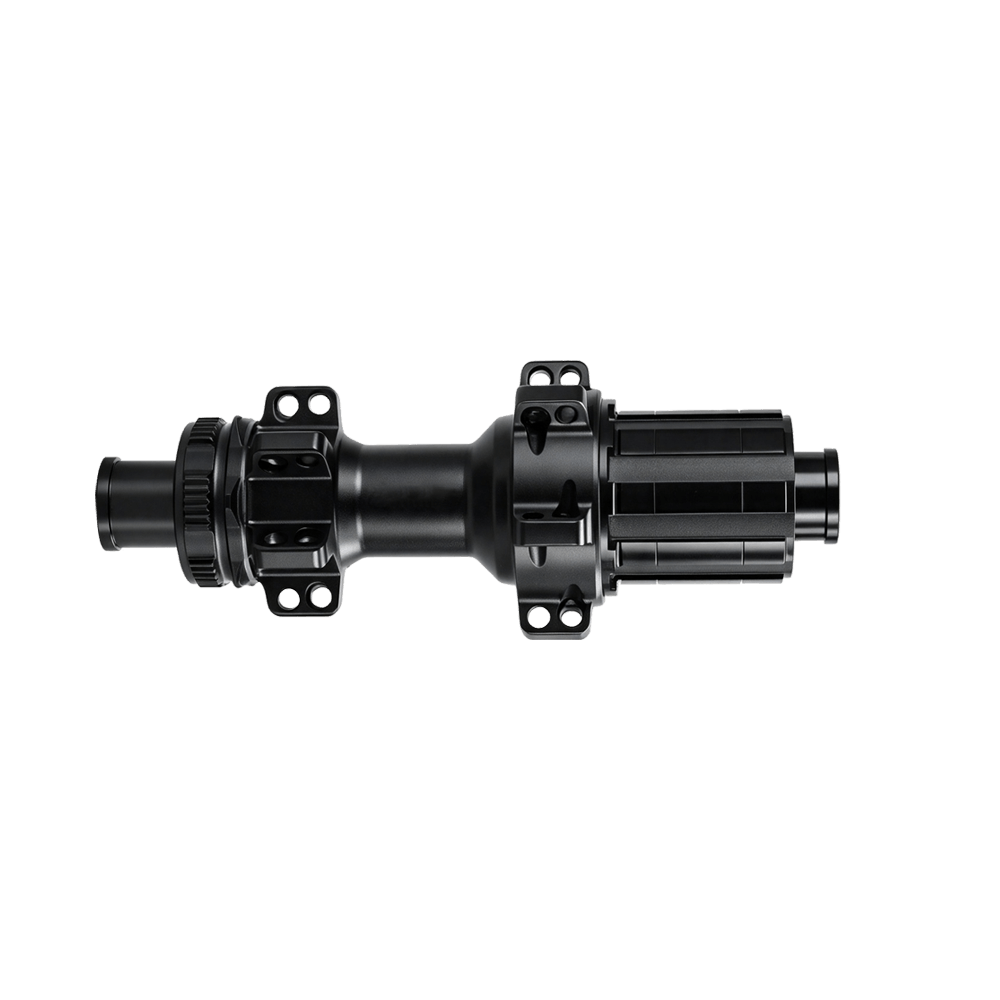

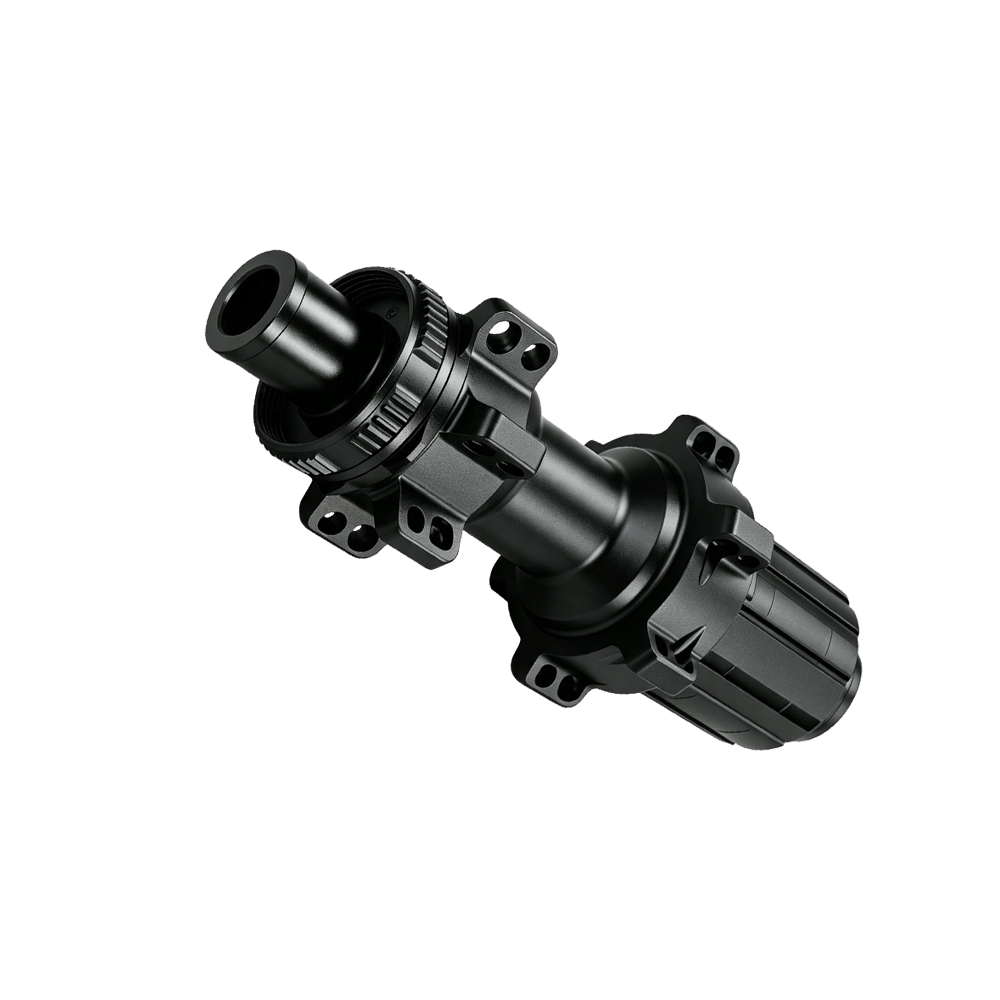

ARC MT-116F/R 24H Carbon-Spoke Boost Center Lock MTB Hub Set

MT-116F/R 24H Carbon-Spoke Boost Center Lock MTB Hub Set 5

ARC MT-116F/R 24H Carbon-Spoke Boost Center Lock MTB Hub Set

MT-116F/R BOOST

Specification

Freehub system

Spoke holes

Bearing

Clear

Inquiry

Product Details

Built for Lightweight Carbon-Spoke MTB Performance

Designed for modern Boost MTB wheel builds, this lightweight hub system is engineered specifically for carbon-spoke applications. The hub combines lightweight construction with race-ready durability, providing an optimized solution for high-performance MTB carbon wheel systems.

Full-Surface Ratchet Engagement

36T / 54T Ratchet System for Consistent Power Transfer

Compared with conventional pawl systems, the larger contact area distributes drivetrain loads more evenly, reducing localized stress while improving durability, engagement stability, and pedaling efficiency under demanding MTB conditions.

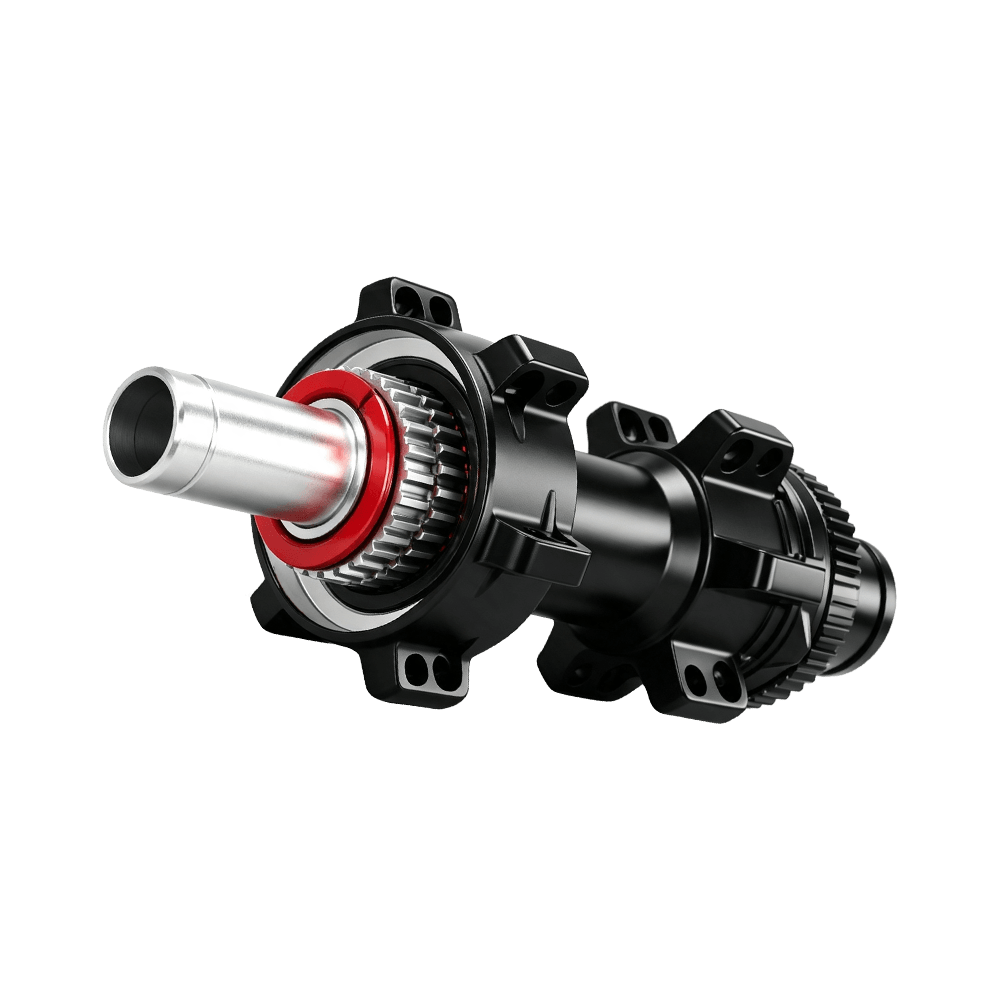

Patented One-Piece Ratchet Architecture

Integrated Design for Higher Strength & Reduced Failure Risk

ARC's patented one-piece ratchet design integrates the engagement structure into a single precision-engineered component. The system increases structural rigidity, reduces overall weight, and improves machining accuracy. The simplified construction also enhances long-term reliability while making assembly and maintenance more efficient.

Technical Specification

#	Type	Details
1	Hub Shell Material	AL6061-T6 aluminum alloy（100% Forging）
2	Axle Material	AL7075 aluminum alloy（100% Forging）
3	Freehub Body Material	AL7075 aluminum alloy（100% Forging）
4	End Cap Material	AL7075 aluminum alloy（100% Forging）
5	Disc Brake Interface	Road Bike Center Lock Disc Brake Hub for Carbon Spokes/BOOST
6	Hole Count	F-24H(1:1)/R-24H(1:1)
7	Surface Color	Precision polished and sandblasted anodized matte black
8	Freehub Body Color	Black anodized
9	Bearing Configuration	S&S steel bearings (standard), ENDURO, CeramicSpeed
10	Hub Structure	36T ratchet、54T ratchet
11	Freehub Body Standard	Shimano HG / Shimano Microspline (MS) / Sram XD
12	O.L.D.	F-15MM/110MM; R-12MM/148MM

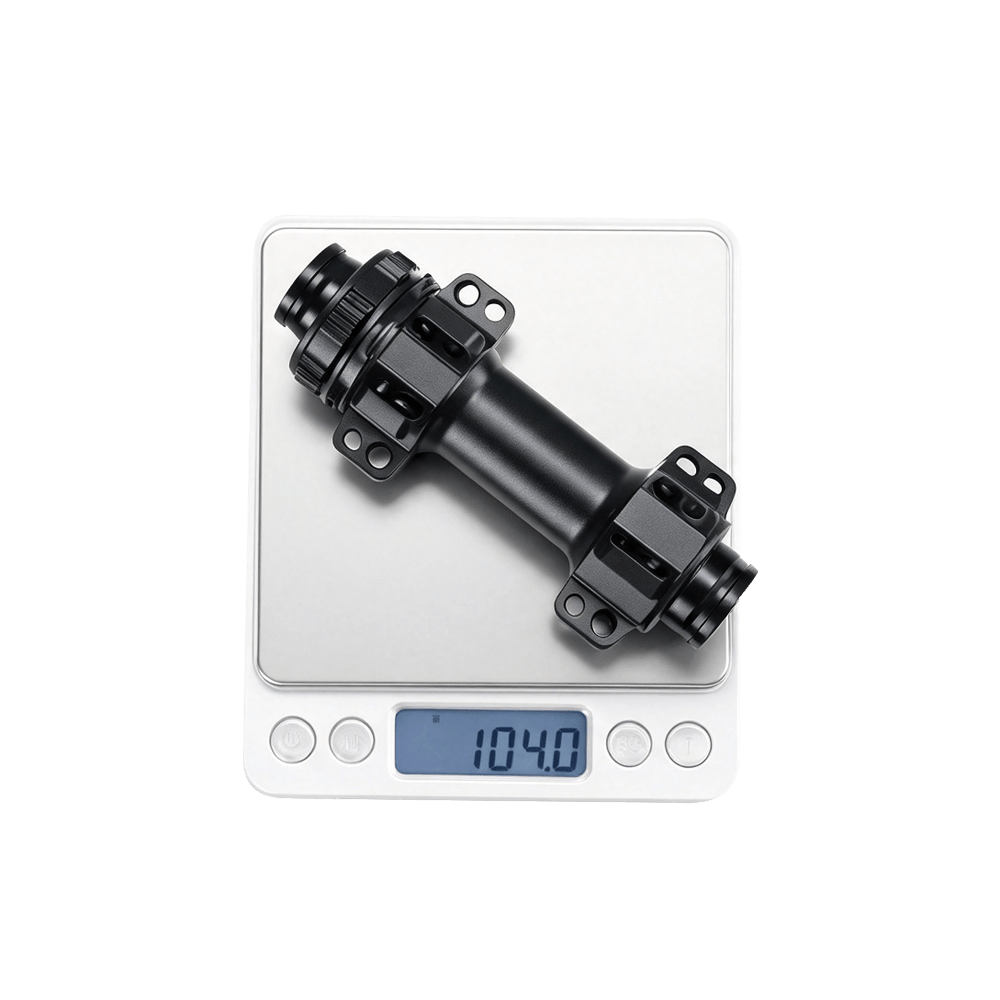

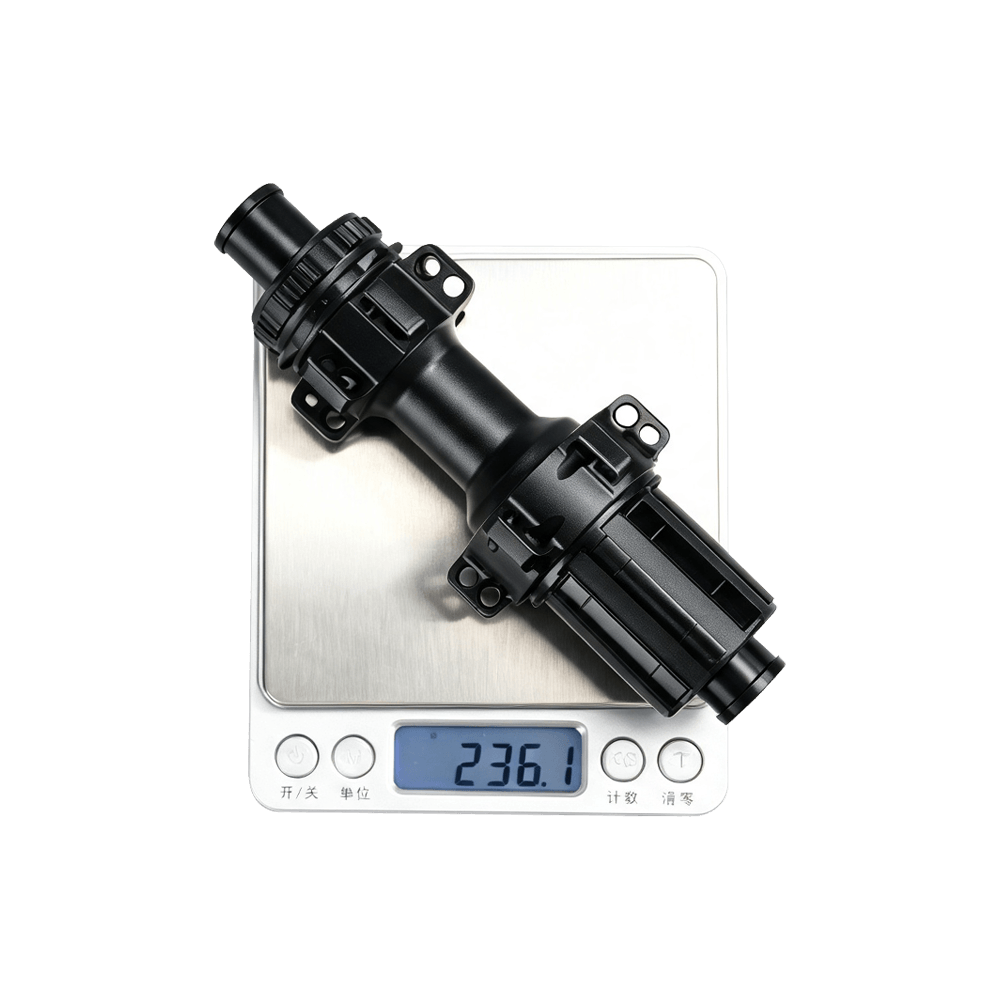

13	Weight	340.1g±5

Precision Materials.

Flexible Configuration.

Engineered with premium aluminum materials and adaptable design to meet the demands of modern MTB carbon wheel builds.
✓ High-Strength Aerospace-Grade 7075 Aluminum Alloy Axle & Freehub Body
Enhance structural stiffness and durability for reliable performance.
✓ Integrated Ratchet Structure
ARC patented one-piece ratchet design improves structural strength, enhances load distribution, and delivers more reliable engagement performance under high-torque MTB riding conditions.

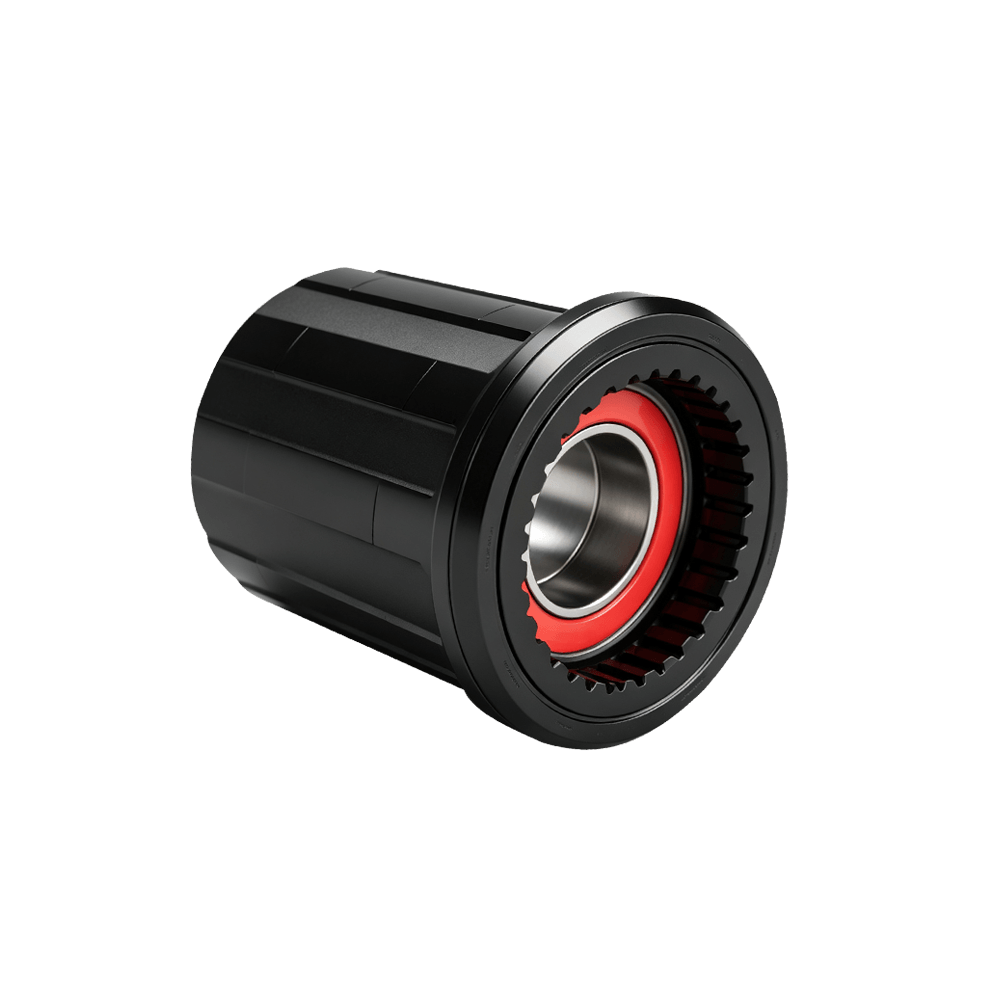

✓ Multiple Freehub Standards Available
Shimano HG, Microspline and SRAM XD for different drivetrain setups
✓ Boost MTB Compatibility
Designed for 110×15mm front and 148×12mm rear axle standards with wide frame compatibility.
