The enlarged pawl structure improves engagement stability and distributes drivetrain loads effectively, providing reliable performance and durability during demanding MTB riding.

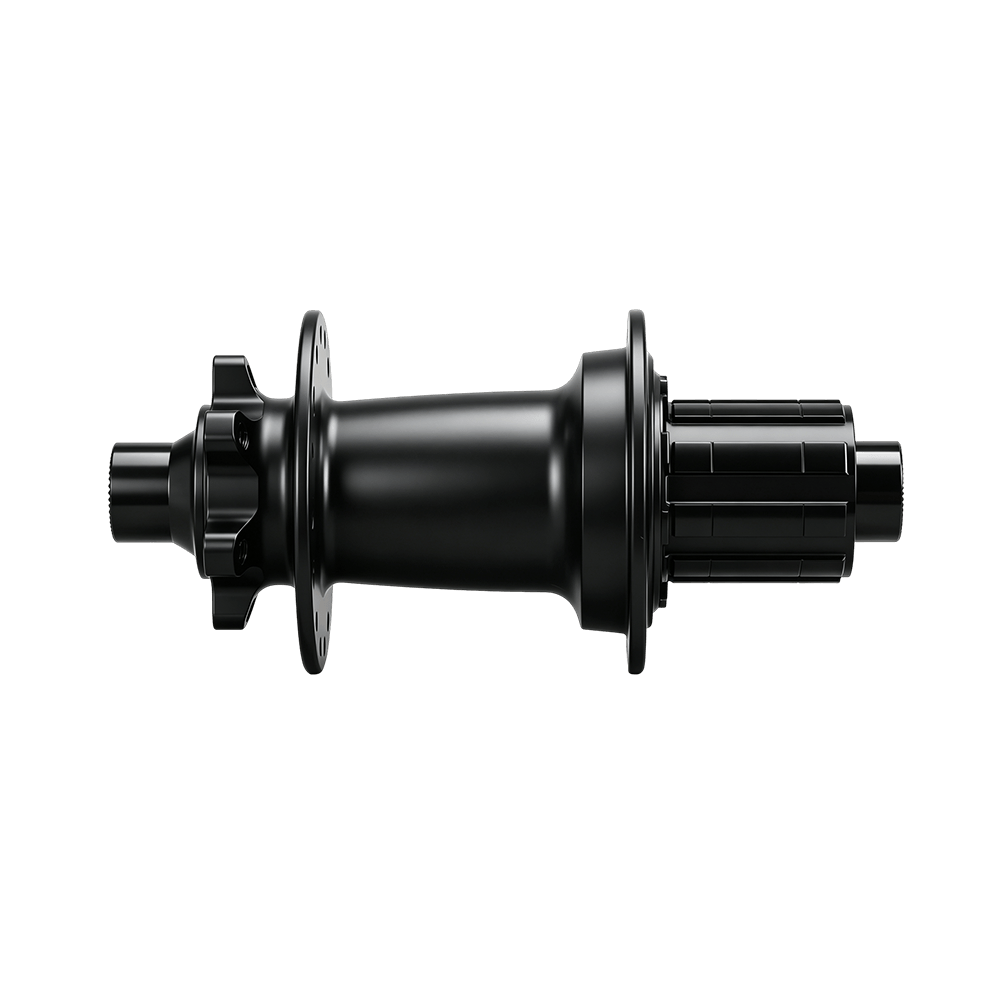

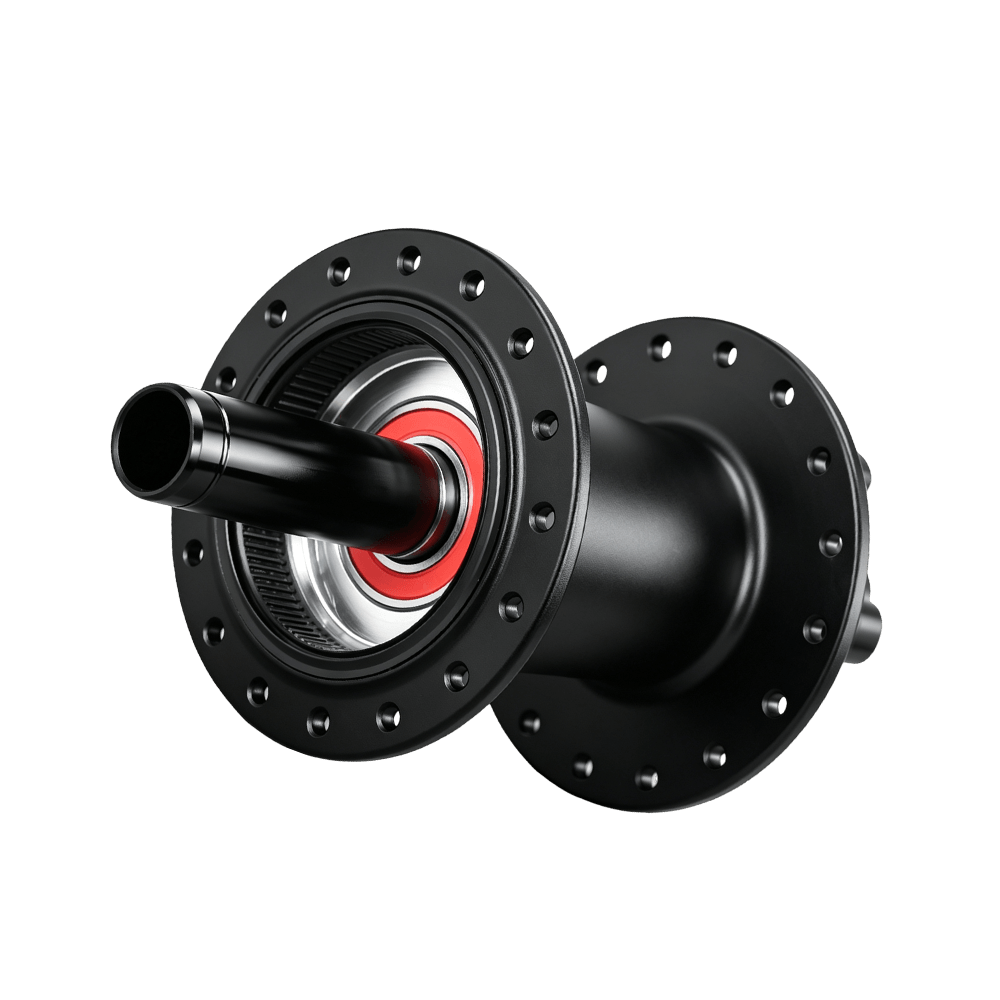

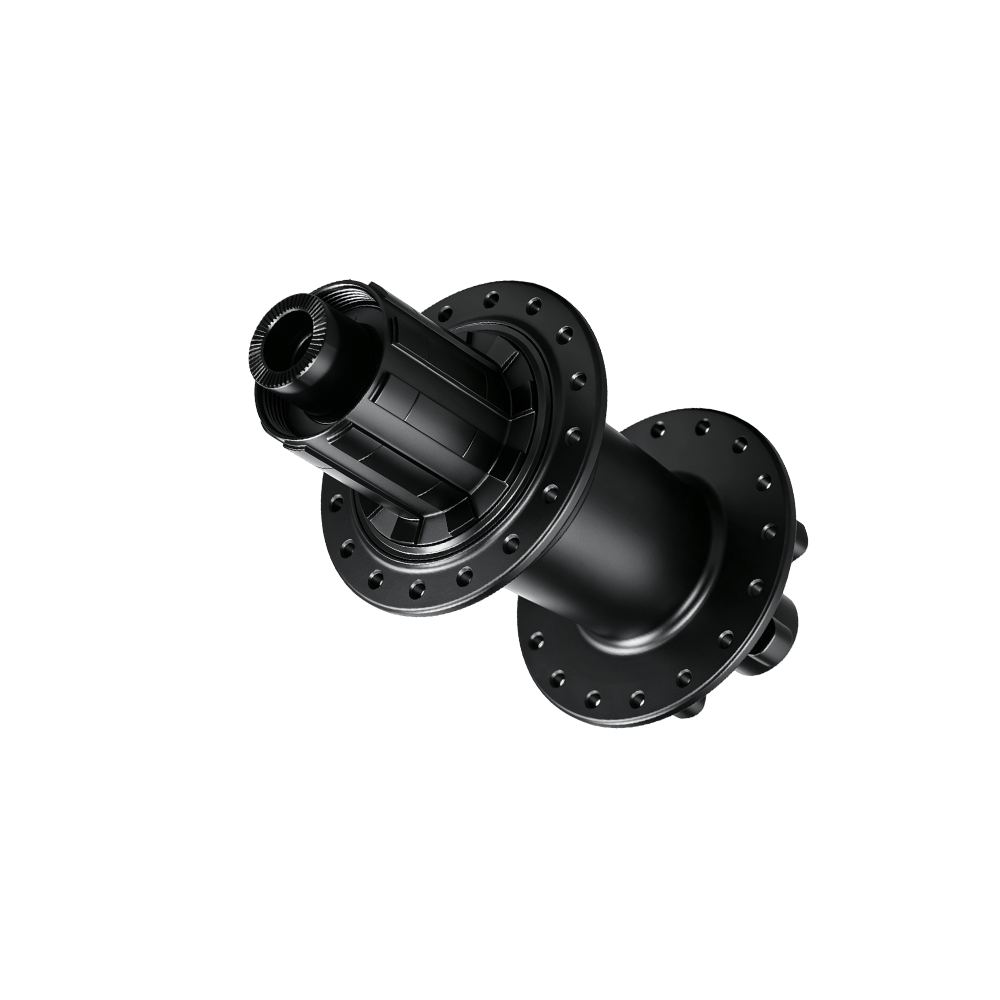

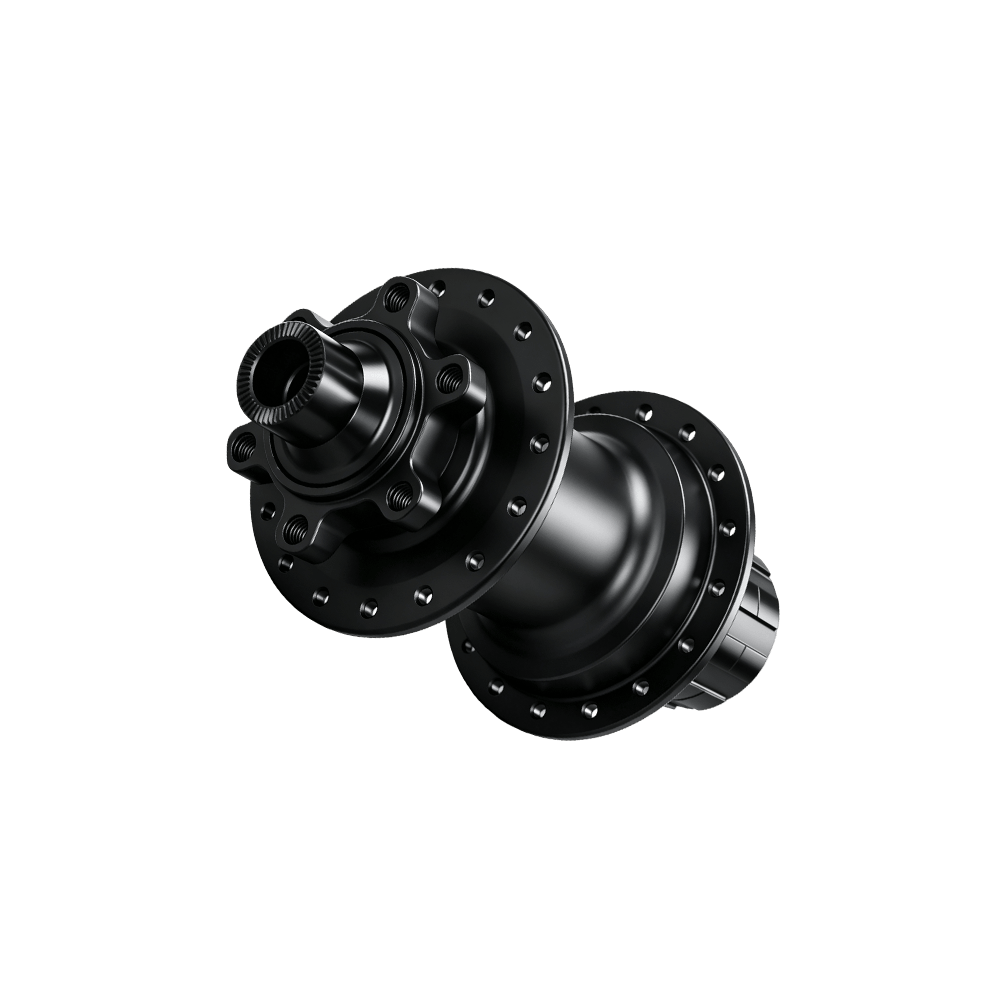

Designed with Boost axle spacing and a reinforced J-bend spoke interface, the MT-088F/R combines lightweight aluminum construction with optimized stiffness for modern mountain bike wheel builds.
| # |
Type
|
Details
|
|---|---|---|
1 |
Hub Shell Material
|
AL6061-T6 aluminum alloy（100% Forging）
|
2 |
Axle Material
|
AL7075 aluminum alloy（100% Forging）
|
3 |
Freehub Body Material
|
AL7075 aluminum alloy（100% Forging）
|
4 |
End Cap Material
|
AL7075 aluminum alloy（100% Forging）
|
5 |
Disc Brake Interface
|
MTB 6-Bolt Disc Brake J-Bend Hub / BOOST
|
6 |
Hole Count
|
F-28H/R-28H;F-32H/R-32H;F-36H/R-36H
|
7 |
Hole Diameter
|
14G
|
8 |
Surface Color
|
Sandblasted (glass beads), bright black anodized
|
9 |
Freehub Body Color
|
Anodized Black
|
10 |
Bearing Configuration
|
S&S steel bearings (standard), ENDURO, CeramicSpeed
|
11 |
Hub Structure
|
6 claws, 2 teeth, 180 clicks (widened upgraded model large pawl)
|
12 |

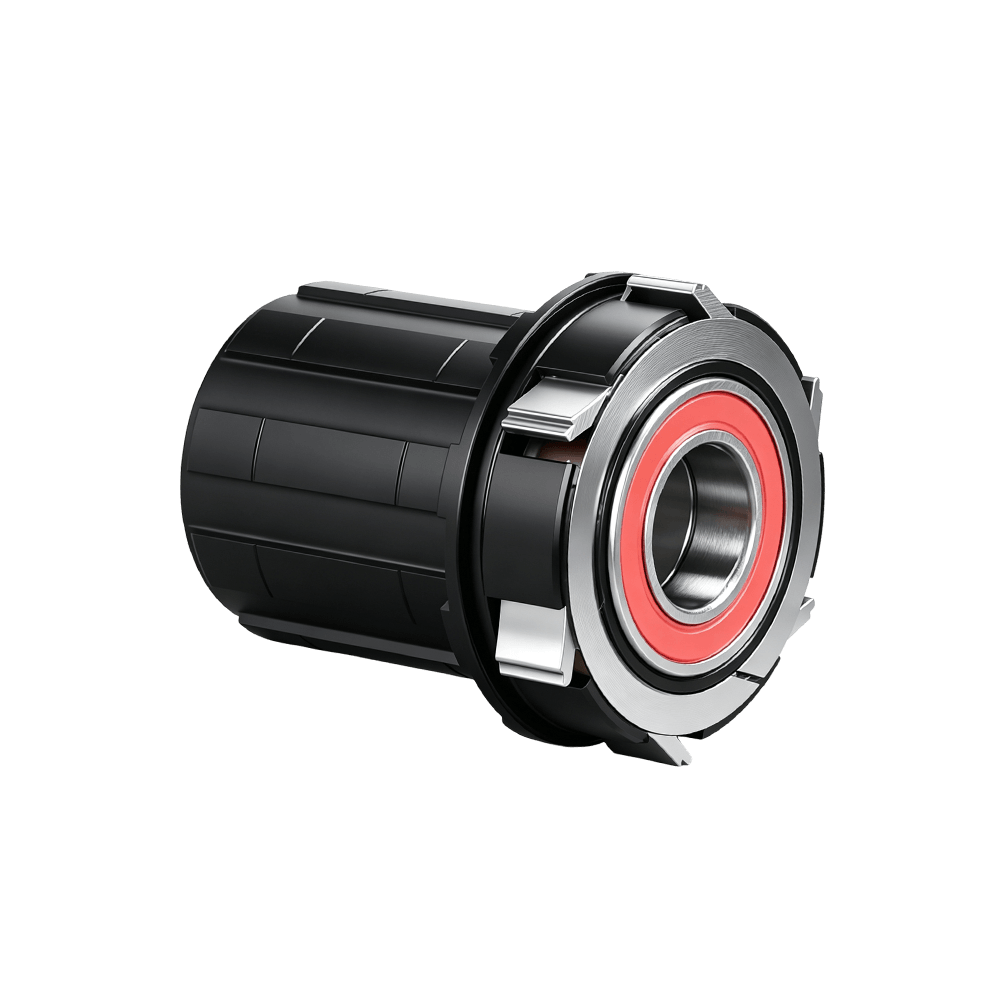

Freehub Body Standard
|
Shimano HG / Shimano Microspline (MS) / Sram XD
|
13 |
O.L.D.
|
F-15*110MM / R-12*148MM
|
14 |

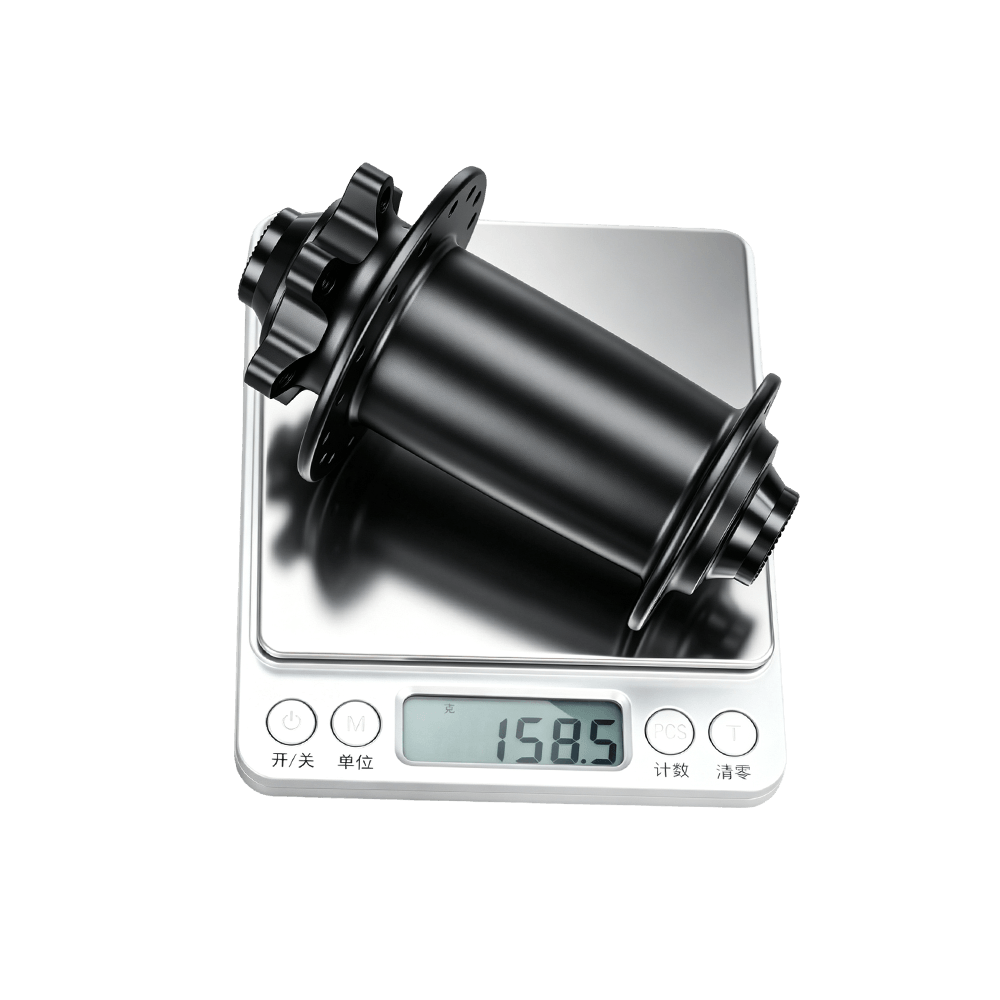

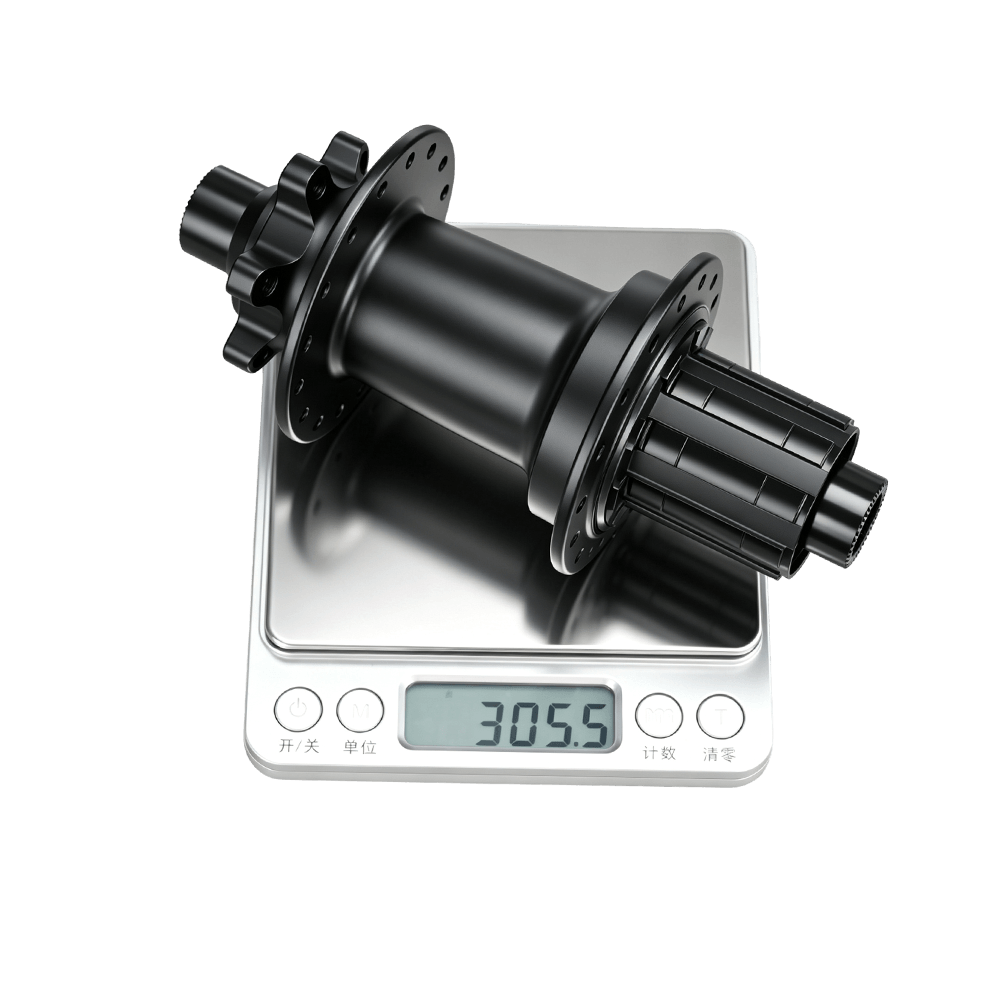

Weight
|
464g±5g
|
Built with durable aluminum components for high-performance Boost MTB wheel builds.
✓ High-Strength Aerospace-Grade 7075 Aluminum Alloy Axle & Freehub Body
Axle, end caps, and freehub body provide reliable stiffness and durability.
✓ 180-Point Engagement
Upgraded 6-pawl, 2-tooth system delivers fast pickup and responsive power transfer.
✓ Multiple Freehub Options
Compatible with Shimano HG, Micro Spline, and SRAM XD.
✓ Boost MTB Platform
Features 15×110mm front and 12×148mm rear thru-axle spacing.
✓ Flexible Spoke Configurations
Available in 28H, 32H, and 36H with 14G J-bend spokes and 6-bolt disc mounting.
