The upgraded pawl width increases by approximately 36%, creating a larger engagement surface for improved torque transfer and reduced stress concentration.
The drive ring width increases by approximately 21%, expanding the load-bearing area by approximately 35% and improving overall hub fatigue strength by approximately 30%.
| # |
Type
|
Details
|
|---|---|---|
1 |
Hub Shell Material
|
AL6061-T6 aluminum alloy（100% Forging）
|
2 |
Axle Material
|
CR-MO
|
3 |
End Cap Material
|
AL7075 aluminum alloy（100% Forging）
|
4 |
Disc Brake Interface
|
MTB / Dirt Jump 6-Bolt Disc Brake J-Bend Hub
|
5 |
Hole Count
|
R-24H/28H/32H/36H
|
6 |
Hole Diameter
|
3/8*14G
|
7 |
Surface Color
|
Anodized Black
|
8 |
Freehub Body Color
|
Anodized Black
|
9 |
Bearing Configuration
|
S&S steel bearings (standard), ENDURO, CeramicSpeed
|
10 |
Hub Structure
|
6 pawls 3 teeth
|
11 |
Freehub Body Standard
|
Single-Speed Driver, M10 Bolt-On Axle
|
12 |
O.L.D.
|
M10*135MM
|
13 |

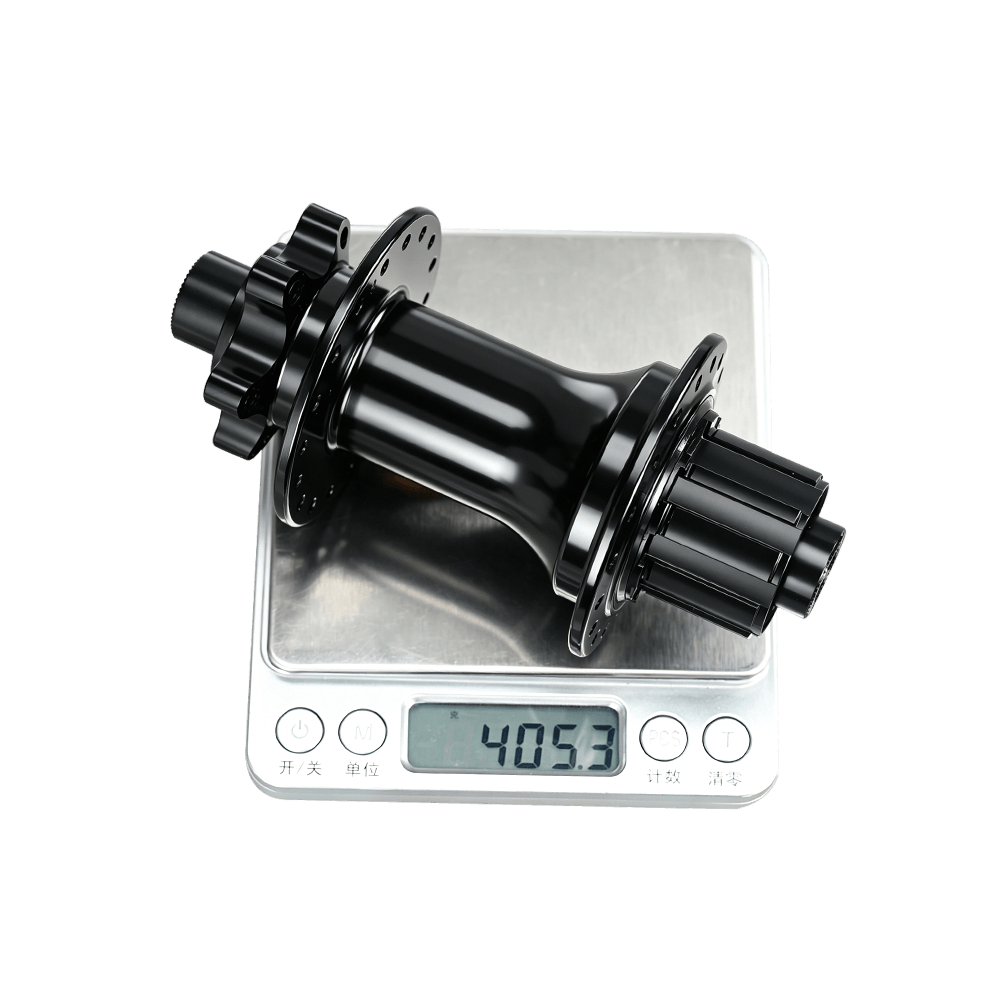

Weight
|
405.3g±5g
|
Engineered with a reinforced aluminum hub shell, high-strength CR-MO axle, and dedicated single-speed configuration to meet the demands of dirt jump and aggressive MTB riding.
✓ High-Strength CR-MO Axle
The CR-MO axle provides enhanced impact resistance and structural strength, making it well suited for repeated landings, jumps, and high-load riding conditions.

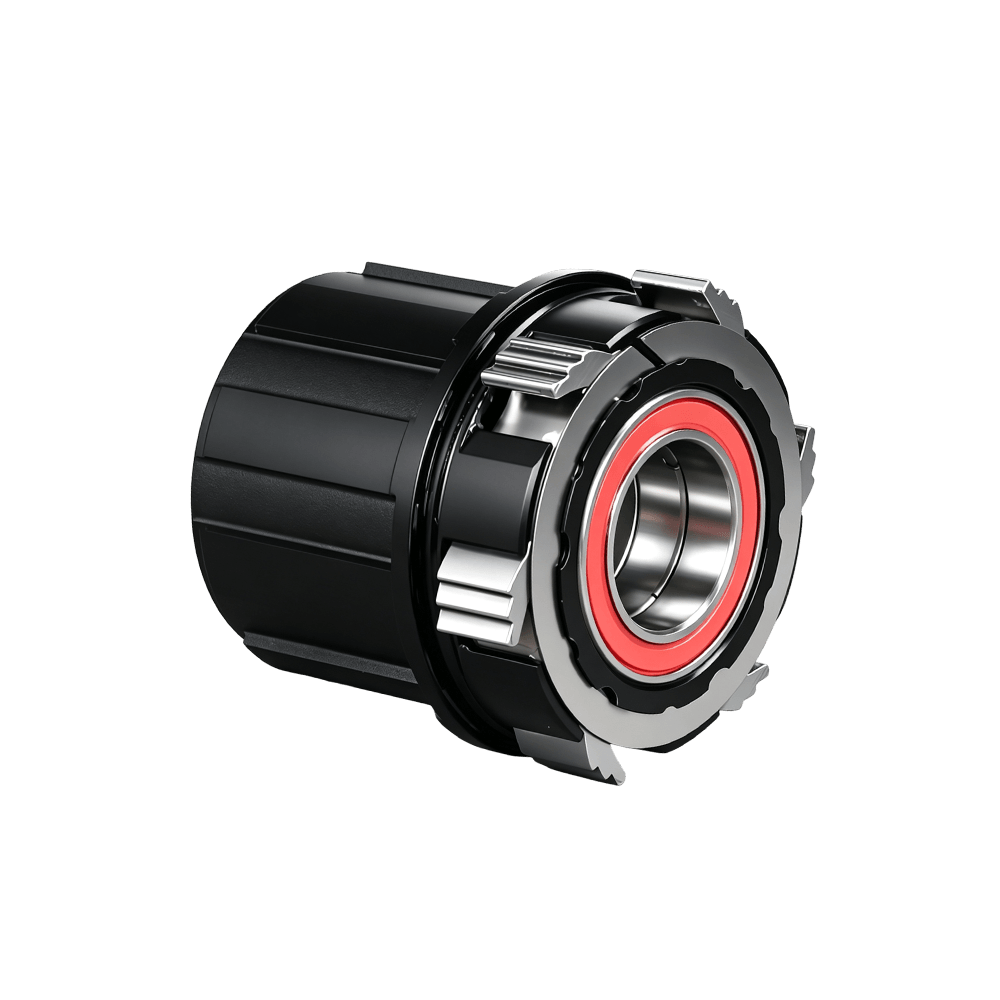

✓ 6-Pawl / 3-Tooth Freehub System with 120 Clicks
The 6-pawl / 3-tooth engagement system provides 120 clicks for rapid engagement response, delivering quick power transfer and precise drivetrain response during acceleration and technical riding.

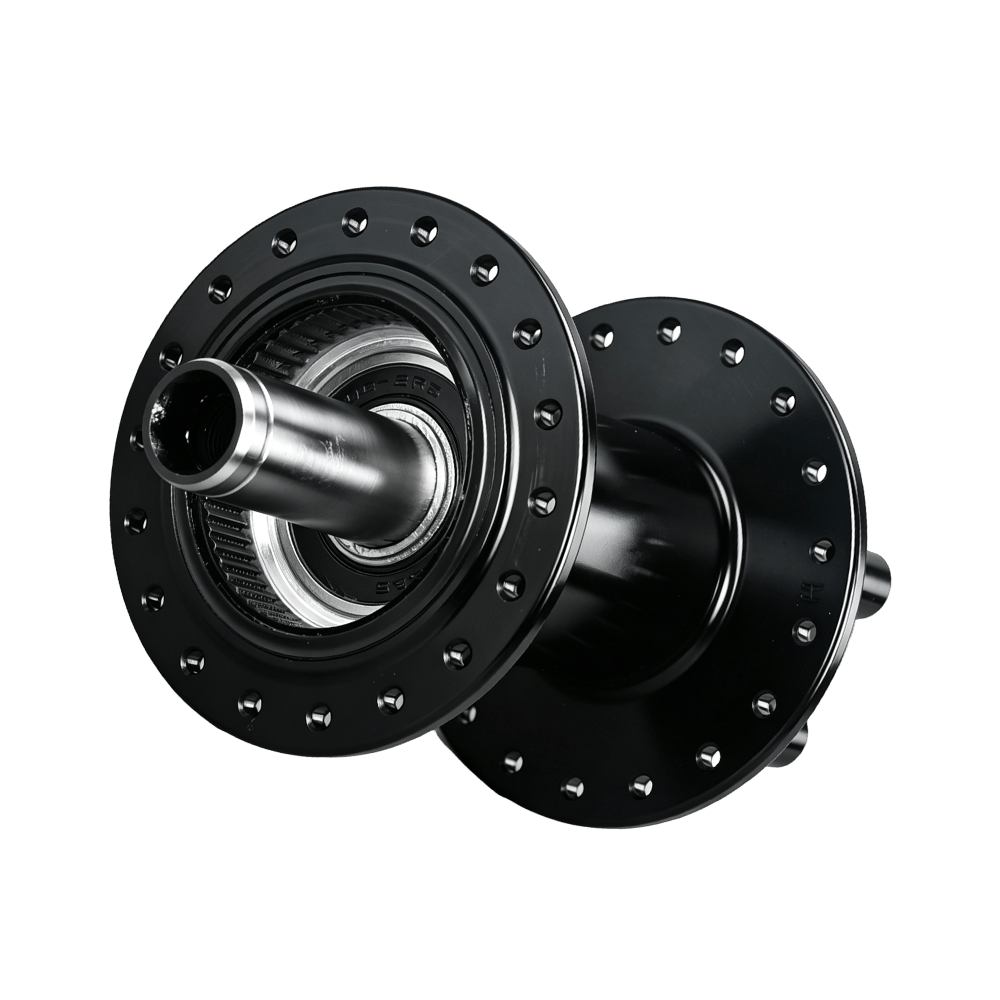

✓ 5-Bearing Support System
The five-bearing configuration provides stable internal support and smooth rotation while enhancing load distribution across the hub structure for demanding riding conditions.
✓ Single-Speed Freehub Configuration
The dedicated single-speed freehub body is designed specifically for single-speed drivetrain setups, providing a simple and reliable drivetrain interface for dirt jump and jump-oriented builds.
✓ M10×135mm Rear Axle Standard
Designed around a 10mm × 135mm rear spacing configuration, providing a robust and stable axle interface for dirt jump and aggressive MTB frames.
✓ Flexible Spoke Configurations
Available in 24H, 28H, 32H, and 36H drilling options, providing flexible wheel-building solutions for different riding styles, spoke layouts, and strength requirements.
✓ 3/8 inch × 14G Spoke Interface
The 3/8 inch × 14G spoke hole specification provides a secure and reliable interface for conventional MTB spokes, supporting durable wheel construction under repeated impact loads.
✓ 515g Heavy-Duty Hub Construction
With a complete hub weight of 515g, the MT-086R prioritizes structural strength and impact resistance for aggressive dirt jump riding where durability and reliability take priority.
✓ M10 Locknut Configuration
Equipped with M10 locknuts to provide a secure axle connection and stable hub installation for demanding dirt jump applications.
