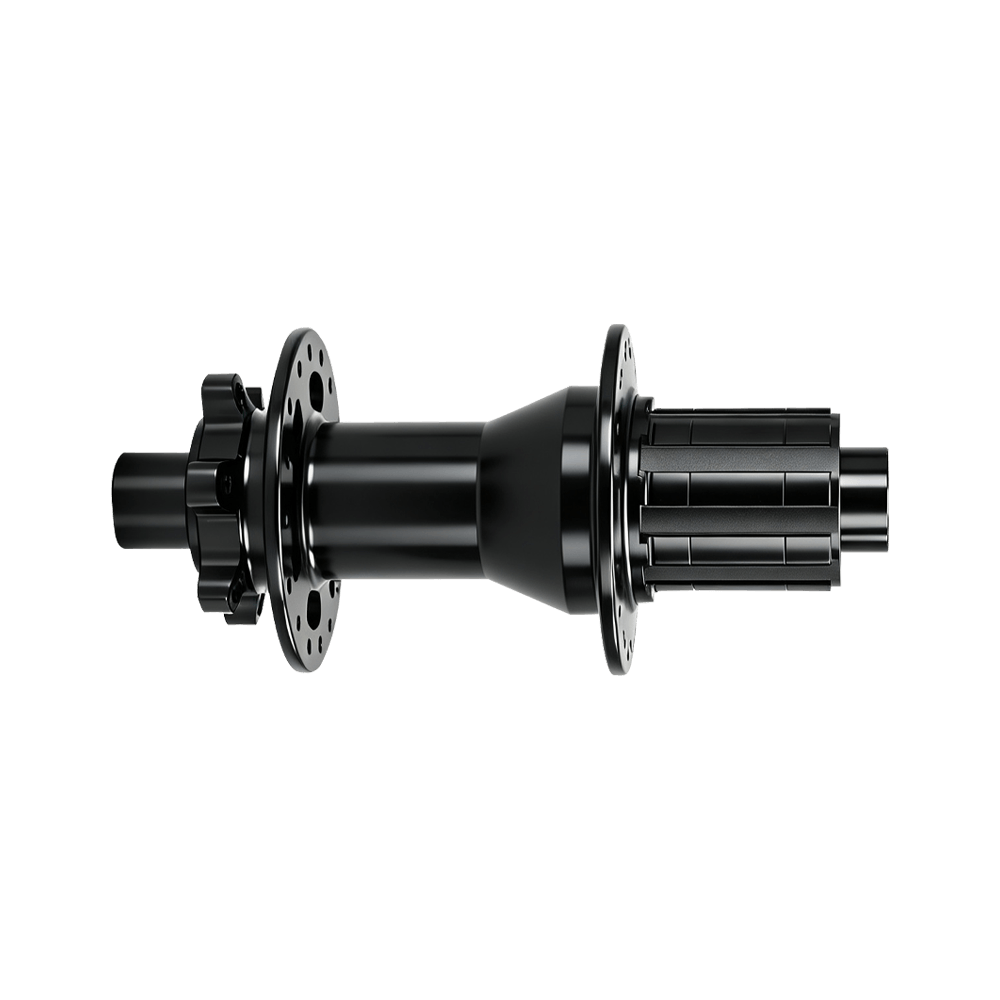

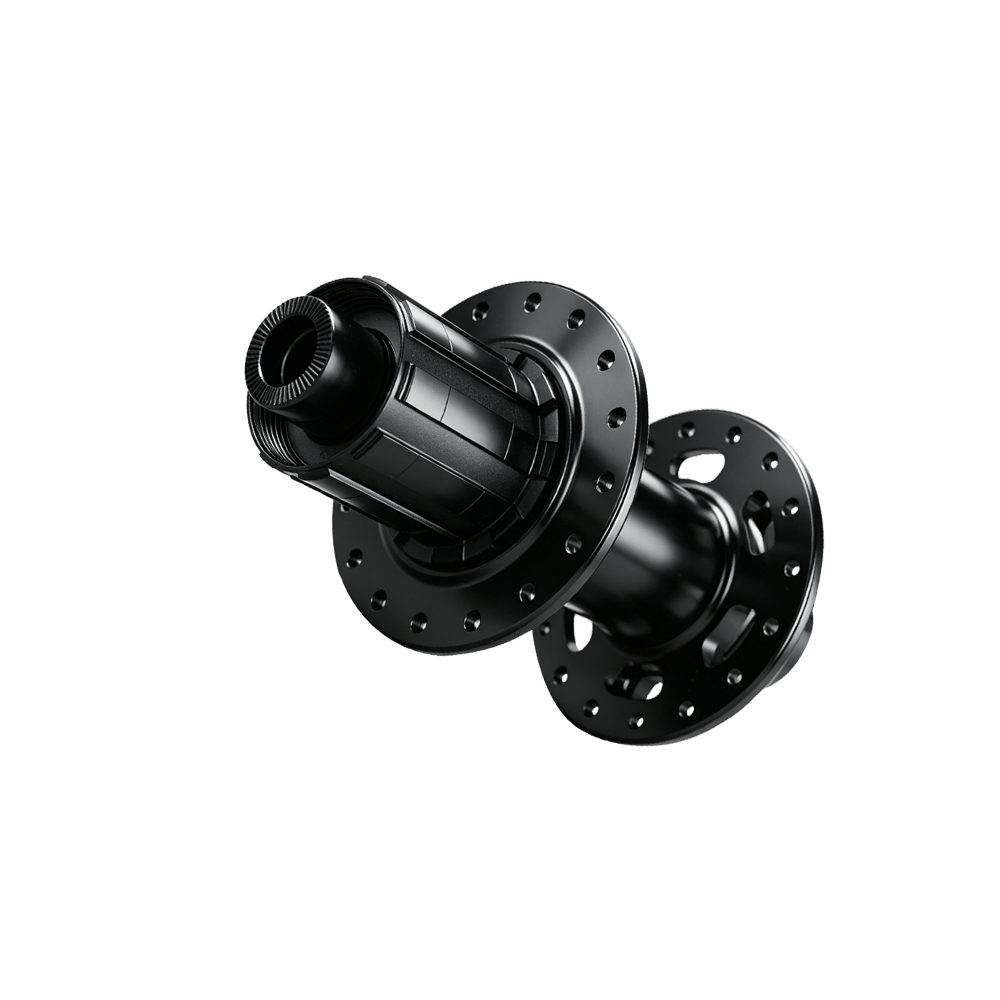

ARC MT-065F/R 32H Boost MTB Hub Set – 36T/54T Ratchet

ARC MT-065F/R 32H Boost MTB Hub Set – 36T/54T Ratchet

MT-065F/R BOOST

Specification

Freehub system

Spoke holes

Bearing

Clear

Inquiry

Product Details

Built for Stronger MTB Performance

Designed for modern MTB six-bolt disc brake wheel builds, MT-065F/R combines a durable AL6061-T6 aluminum hub shell with a high-performance DT-36T/DT-54T ratchet system and Boost axle configuration. With a 15×110mm front and 12×148mm rear spacing, it provides an optimized balance of structural strength, engagement response, and wheel stiffness for demanding trail and all-mountain riding.

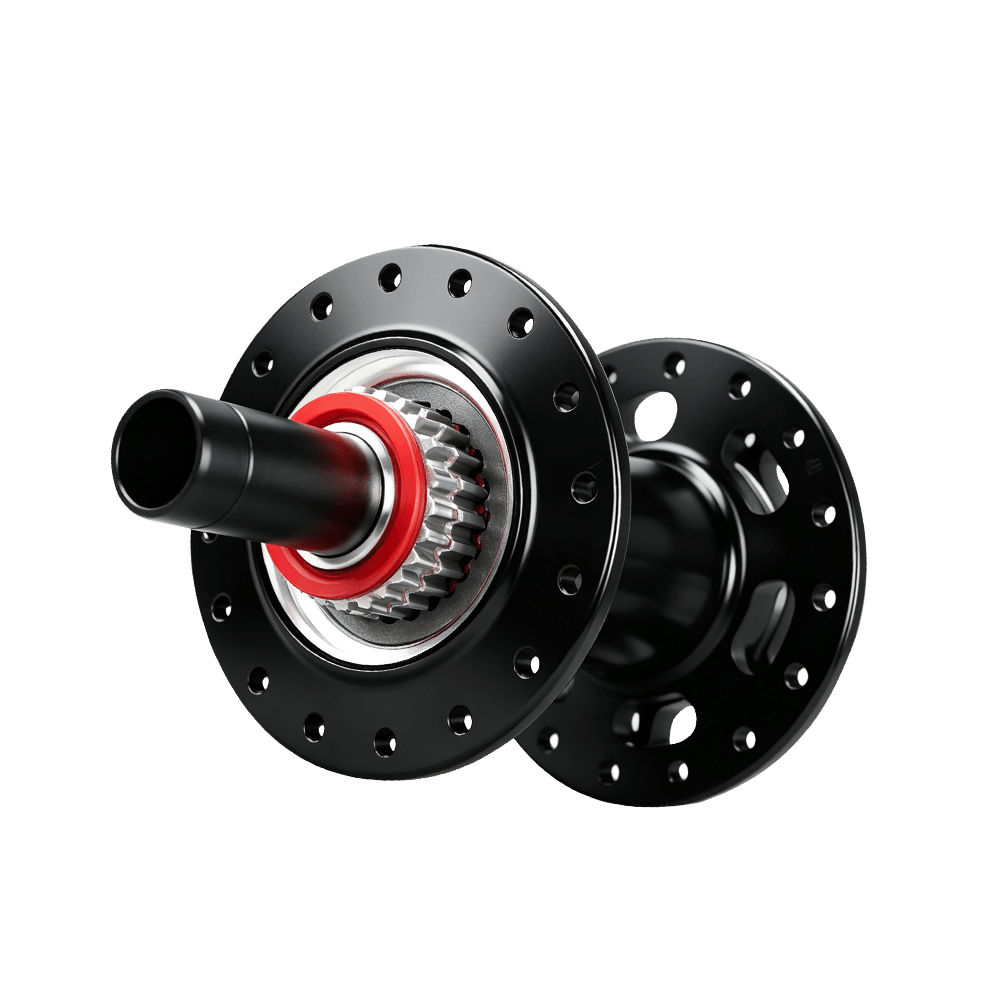

Full-Surface Ratchet Engagement

36T / 54T Ratchet System for Consistent Power Transfer

Compared with conventional pawl systems, the larger contact area distributes drivetrain loads more evenly, reducing localized stress while improving durability, engagement stability, and pedaling efficiency under demanding riding conditions.

Patented One-Piece Ratchet Architecture

Integrated Design for Higher Strength & Reduced Failure Risk

ARC's patented one-piece ratchet design integrates the engagement structure into a single precision-engineered component. The system increases structural rigidity, reduces overall weight, and improves machining accuracy. The simplified construction also enhances long-term reliability while making assembly and maintenance more efficient.

Technical Specification

#	Type	Details
1	Hub Shell Material	AL6061-T6 aluminum alloy（100% Forging）
2	Axle Material	AL7075 aluminum alloy（100% Forging）
3	Freehub Body Material	AL7075 aluminum alloy（100% Forging）
4	End Cap Material	AL7075 aluminum alloy（100% Forging）
5	Disc Brake Interface	Mountain bike disc brake hub (6-bolt, J-bend)
6	Hole Count	F-28H/R-28H;F-32H/R-32H;F-36H/R-36H
7	Hole Diameter	14G
8	Surface Color	Anodized Black
9	Freehub Body Color	Anodized Black
10	Bearing Configuration	S&S Steel Ball Bearings
11	Hub Structure	Ratchet-36T/Ratchet-54T
12	Freehub Body Standard	Shimano HG / Shimano Microspline (MS) / Sram XD
13	O.L.D.	F-15110MM/R-12148MM
14	Weight	453.1g±5g

Precision Materials.

Flexible Configuration.

Engineered with high-strength aerospace-grade aluminum and a Boost-optimized MTB configuration to meet the demands of modern six-bolt disc brake wheel builds.

✓ High-Strength Aerospace-Grade 7075 Aluminum Alloy Axle & Freehub Body
The axle, freehub body, and end caps are manufactured from aerospace-grade AL7075 aluminum alloy, enhancing structural stiffness and durability while maintaining a reliable and lightweight construction.

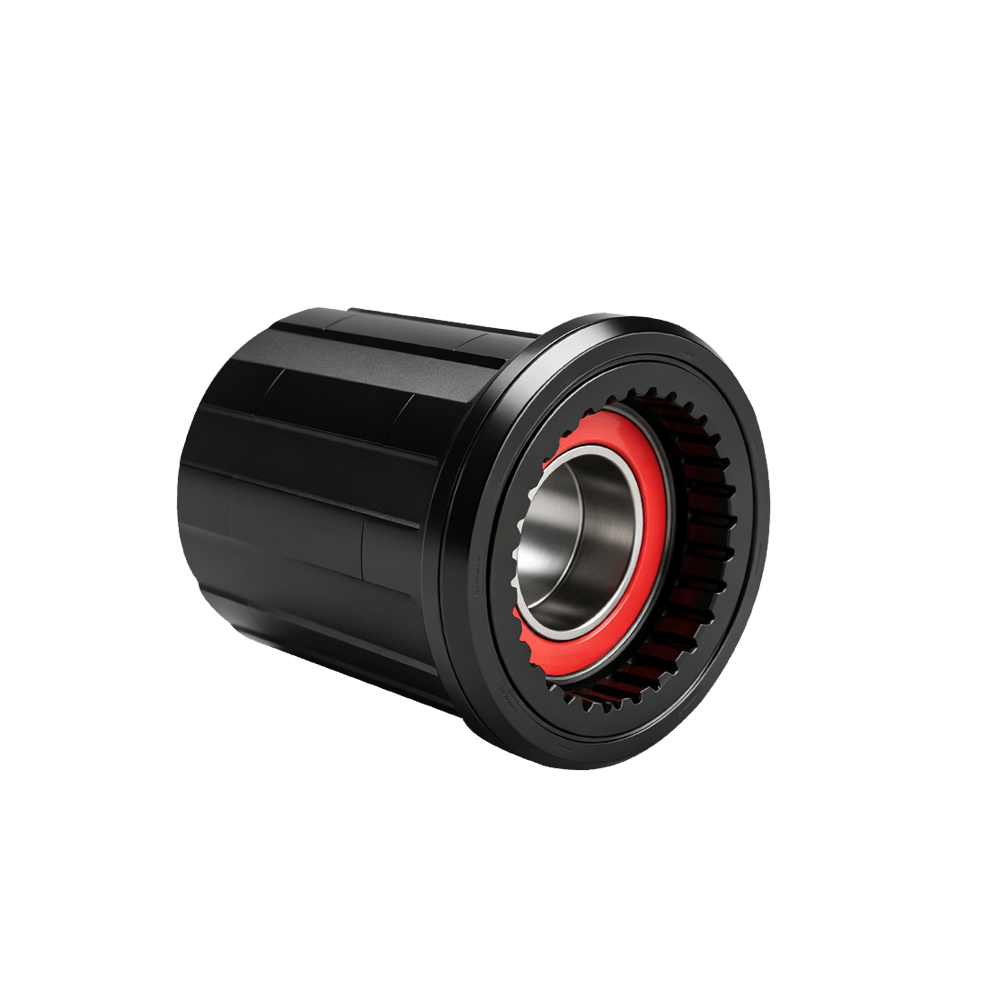

✓ DT-36T / DT-54T Ratchet System
The DT-36T/DT-54T ratchet structure provides responsive engagement and consistent power transfer, delivering reliable drivetrain performance during acceleration, climbing, and technical MTB riding.

✓ Boost 110 / 148mm Configuration
Designed with a 15×110mm front and 12×148mm rear Boost configuration, providing increased hub spacing and a wider wheel platform for improved wheel stiffness and compatibility with modern Boost MTB frames and forks.

✓ Flexible Spoke Configurations
Available in 28H, 32H, and 36H front and rear drilling options, providing flexible wheel-building solutions for different riding styles, wheel structures, and load requirements.

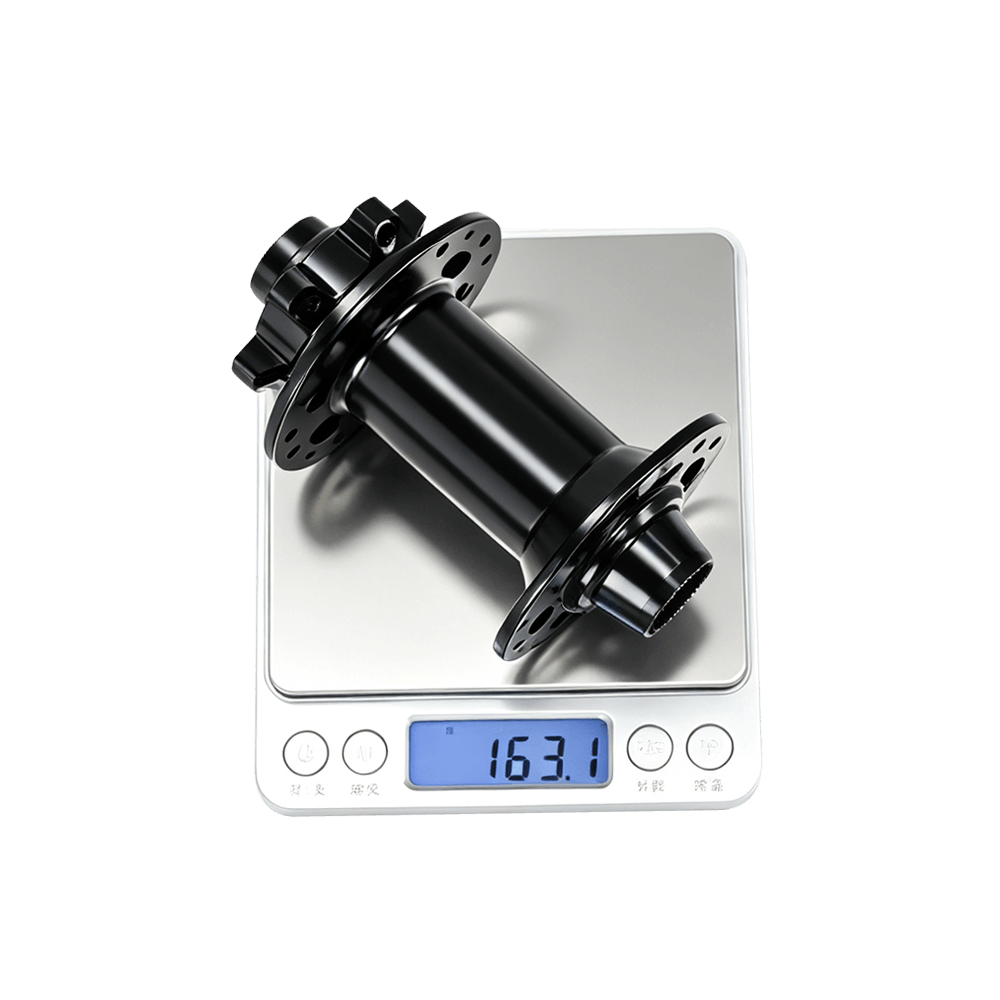

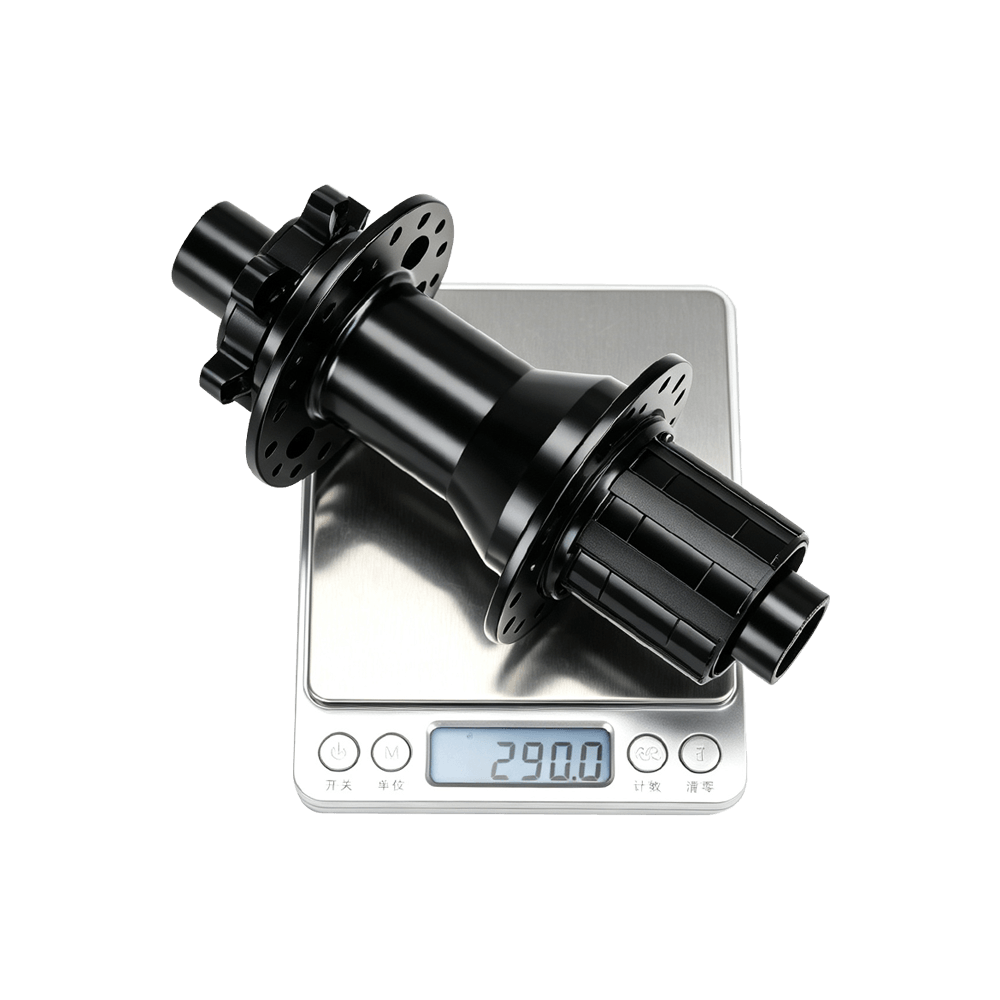

✓ 450g Hubset Construction
The optimized hub structure provides a balanced combination of strength, weight, and durability, with a complete hubset weight of 450g for reliable performance across demanding MTB riding conditions.

✓ Multiple Freehub Standards Available
HG, Microspline, and SRAM XD freehub standards are available to support different MTB drivetrain configurations, providing flexible compatibility for various Boost wheelset applications.

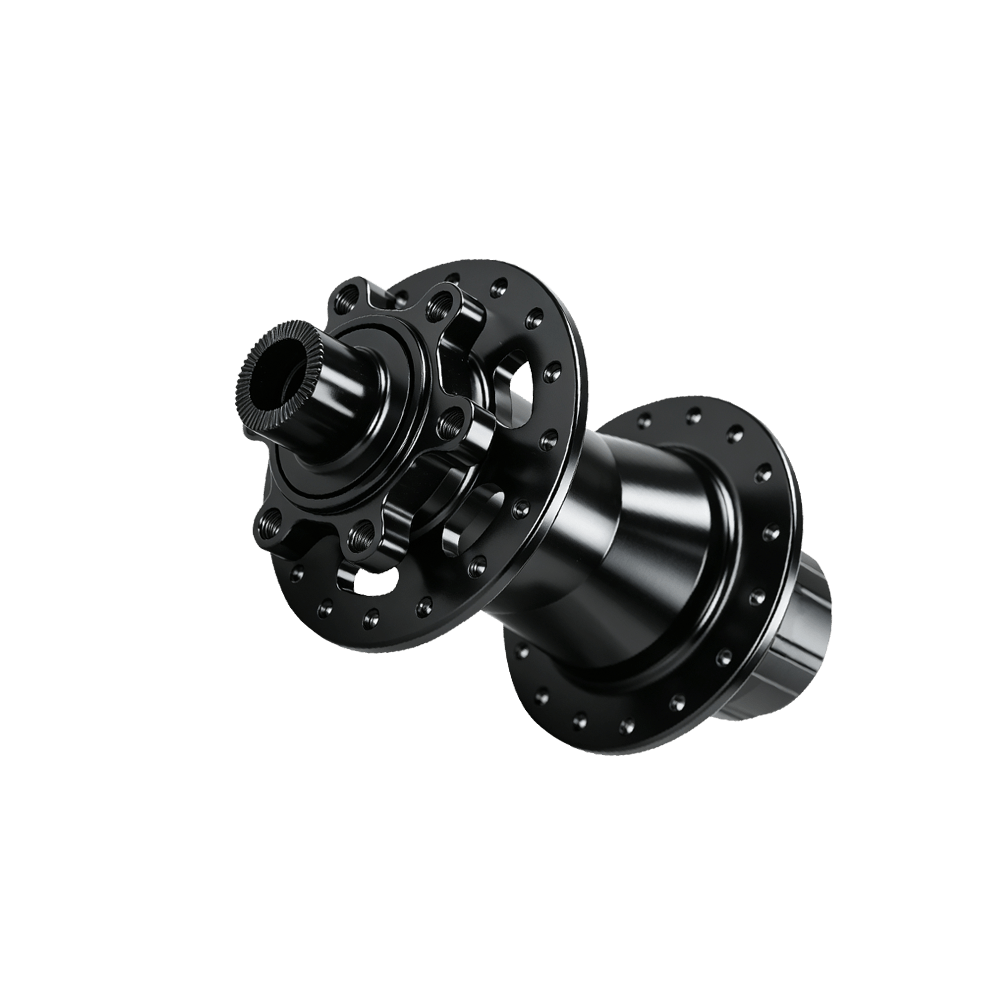

✓ Boost Six-Bolt Disc Brake Compatibility
Designed specifically for modern Boost MTB wheel systems with a six-bolt disc brake interface, providing reliable compatibility for trail, all-mountain, and other demanding MTB applications.
