The refined 4-pawl engagement system ensures stable drivetrain connection and efficient power transfer. Supported by S&S steel bearings and compatible with HG, MSR, XDR, N3W, and CP freehub standards, it offers versatile configuration options for different road wheel applications.

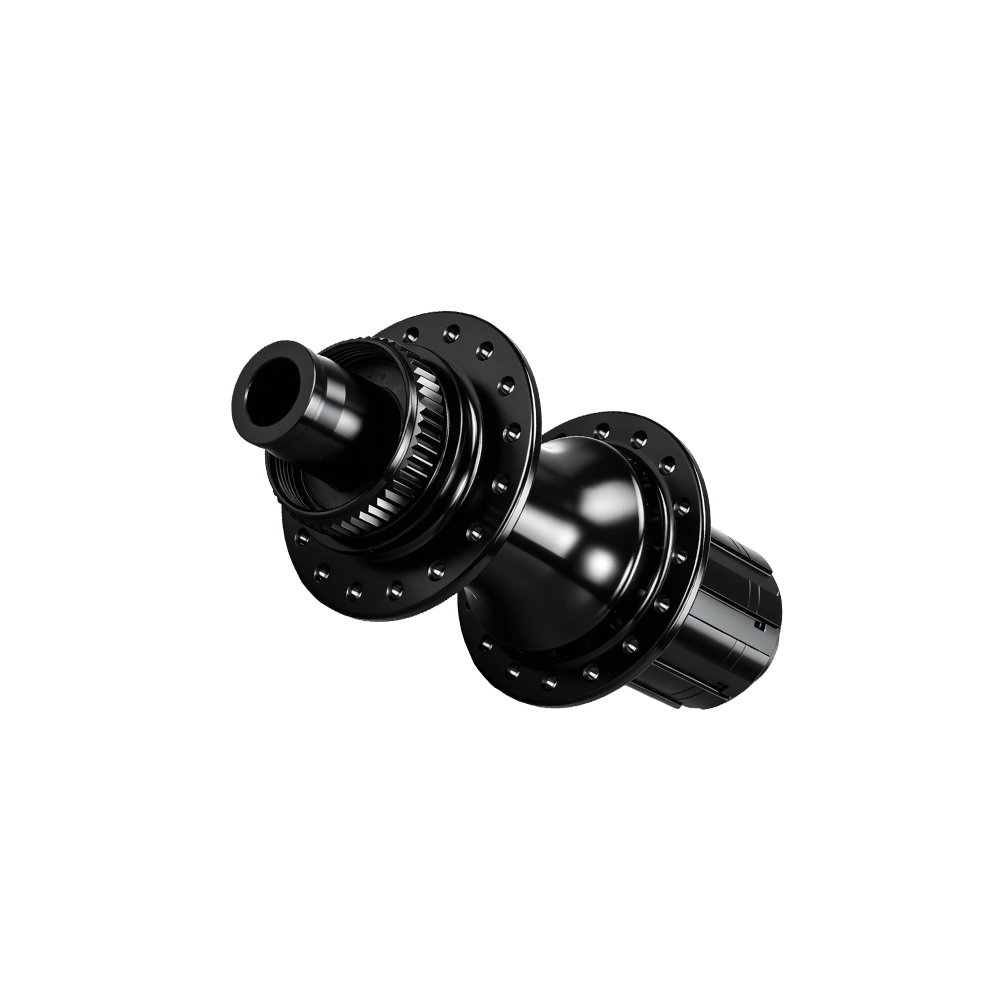

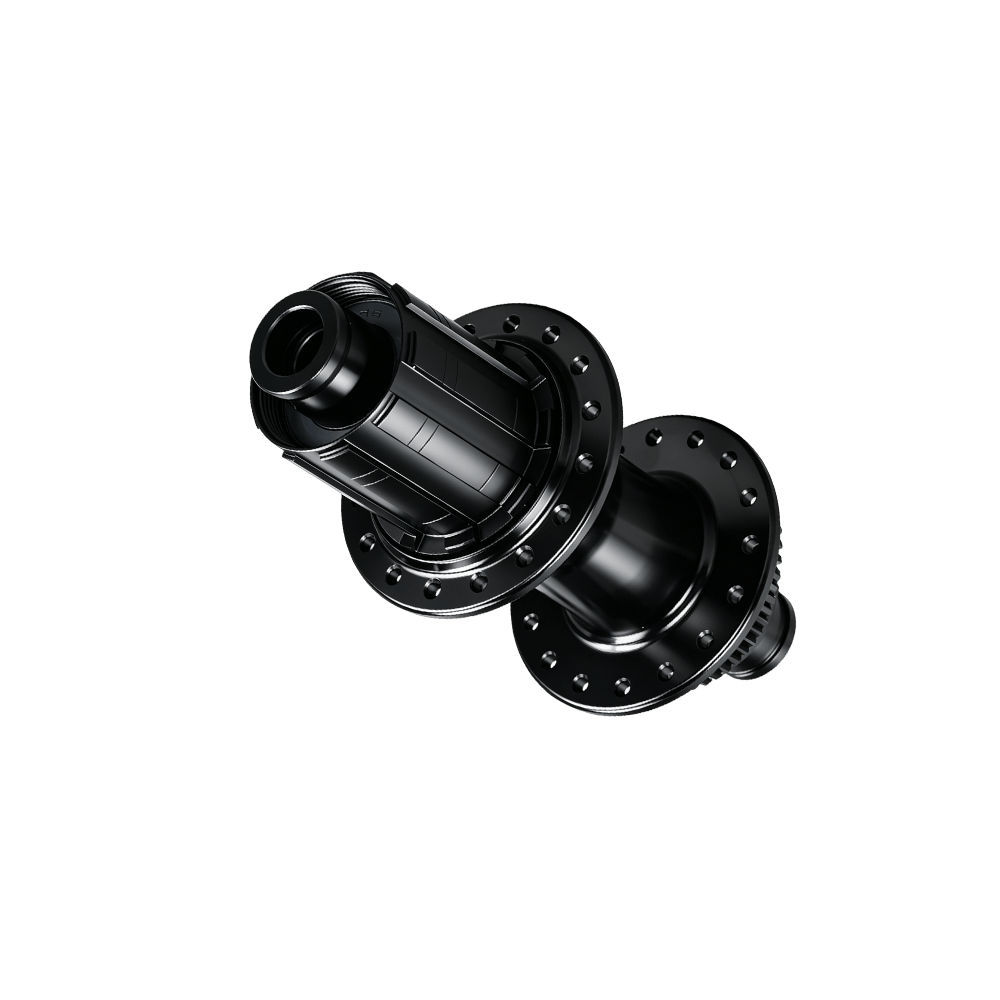

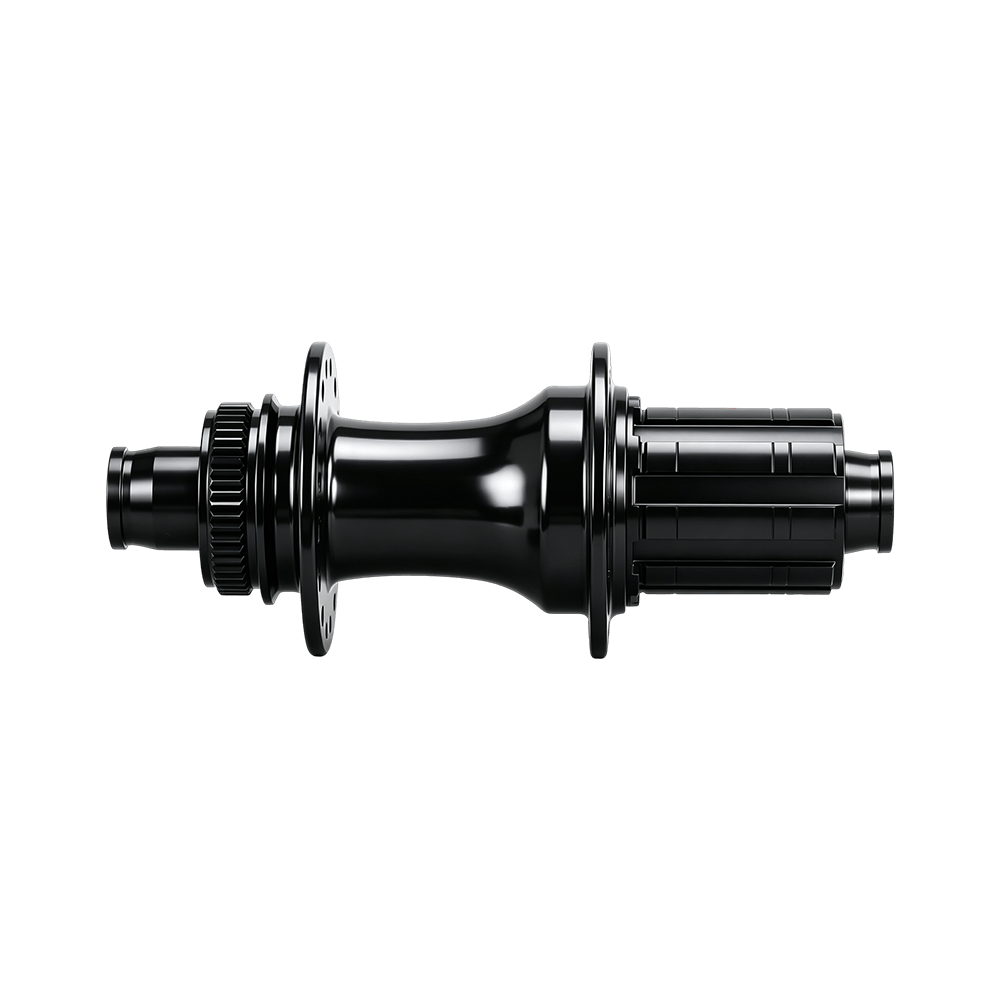

Built for road disc brake wheel systems, the MT-046F/R combines AL6061-T6 aluminum alloy construction with AL7075 precision components to achieve a strong yet lightweight hub platform. The J-bend spoke interface provides practical wheel-building flexibility and long-term durability.
| # |
Type
|
Details
|
|---|---|---|
1 |
Hub Shell Material
|
AL6061-T6 aluminum alloy（100% Forging）
|
2 |
Axle Material
|
AL7075 aluminum alloy（100% Forging）
|
3 |
Freehub Body Material
|
AL7075 aluminum alloy（100% Forging）
|
4 |
End Cap Material
|
AL7075 aluminum alloy（100% Forging）
|
5 |
Disc Brake Interface
|
Road bike Center Lock disc brake hub with J-bend spokes
|
6 |
Hole Count
|
F-24H/R-24H
|
7 |
Hole Diameter
|
14G
|
8 |
Surface Color
|
Anodized Black
|
9 |
Freehub Body Color
|
Anodized Black
|
10 |
Bearing Configuration
|
S&S steel bearings (standard), ENDURO, CeramicSpeed
|
11 |
Hub Structure
|
4 pawls single-tooth
|
12 |
Freehub Body Standard
|
Shimano HG/Shimano Microspline(MS)-Road/SRAM XDR/Campagnolo Next 3/Campagnolo 11/12S
|
13 |
O.L.D.
|
F-12*100MM、R-12*142MM
|
14 |

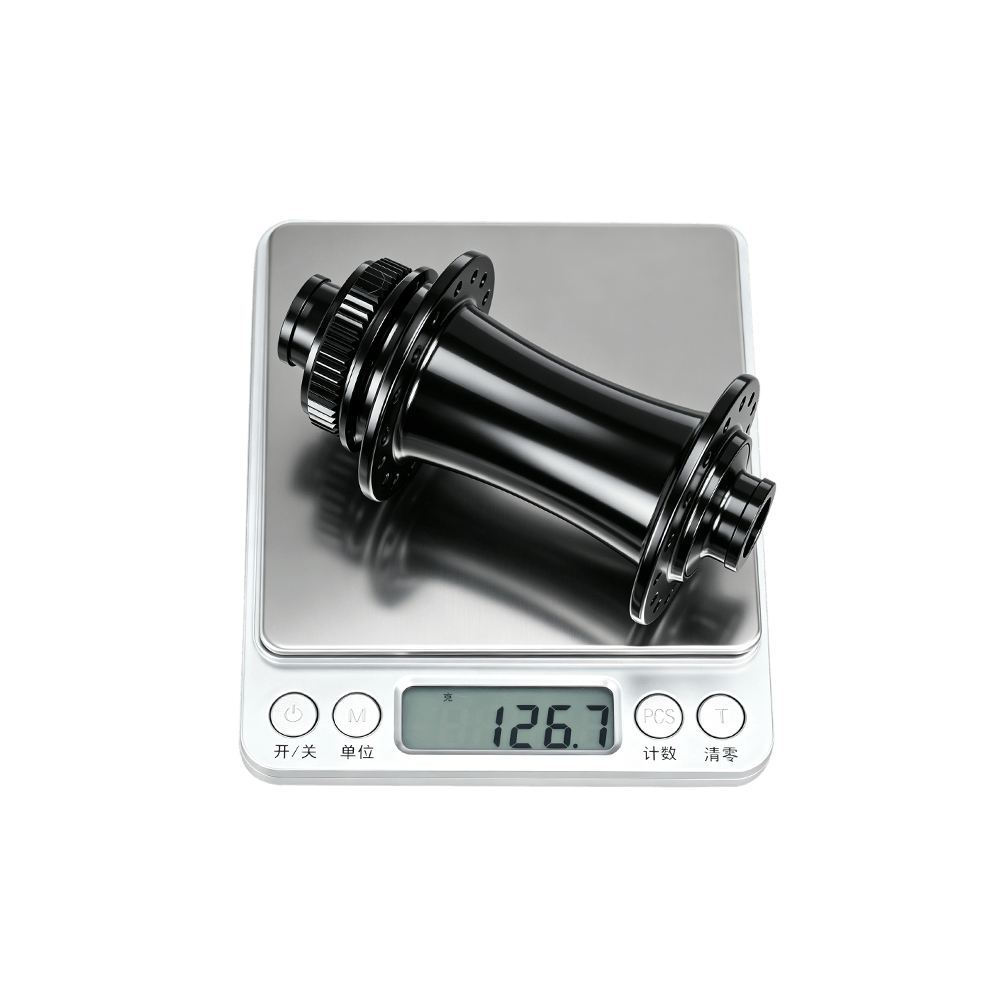

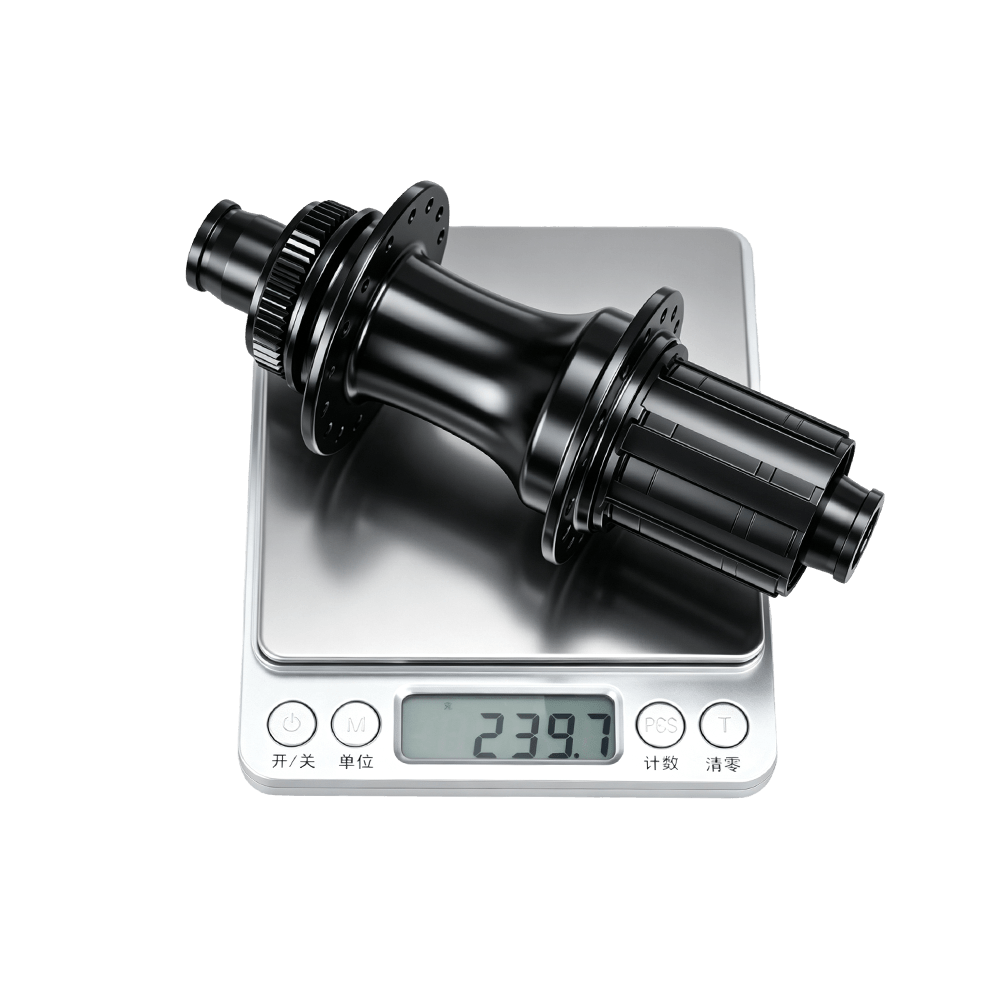

Weight
|
366.4g±5g
|
Built with lightweight aluminum components for modern road disc wheel builds.
✓ AL7075 Key Components
Axle, end caps, and freehub body provide reliable stiffness and durability.

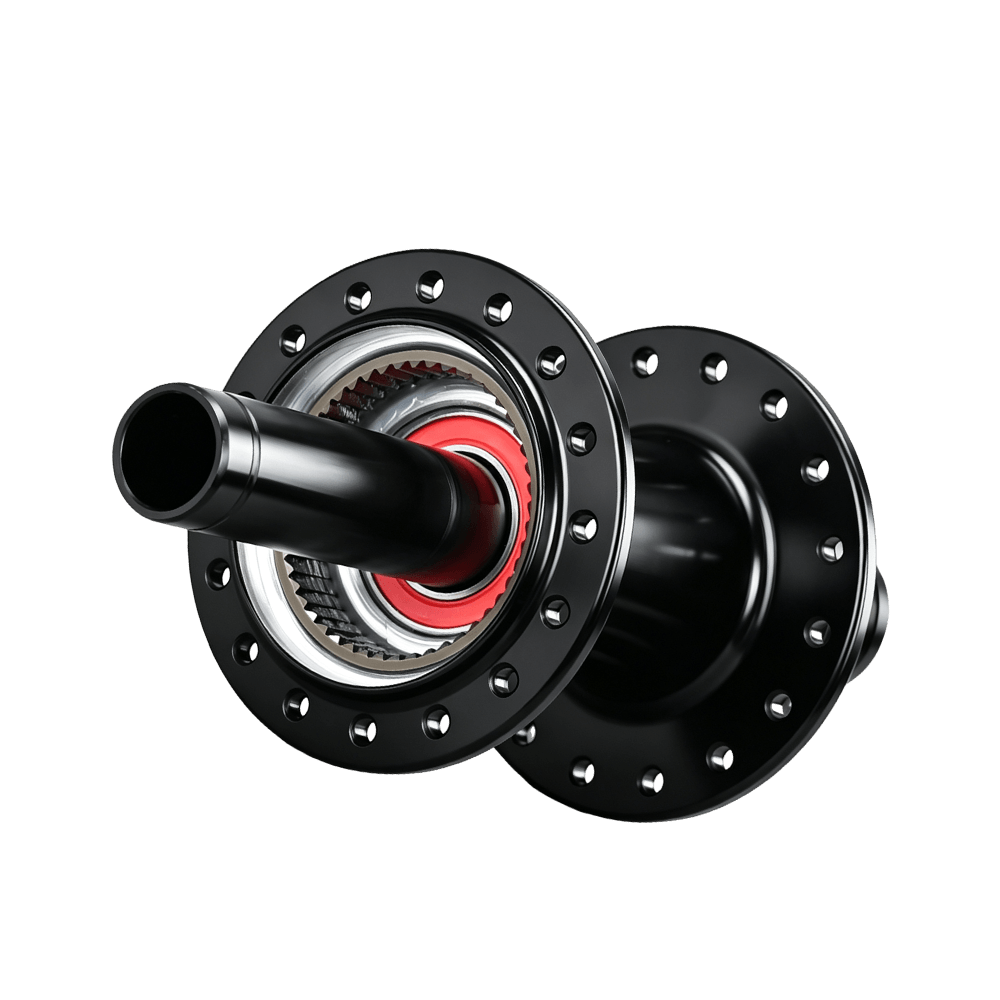

✓ 4-Pawl, Single-Tooth System
Delivers 48-point engagement and consistent power transfer.

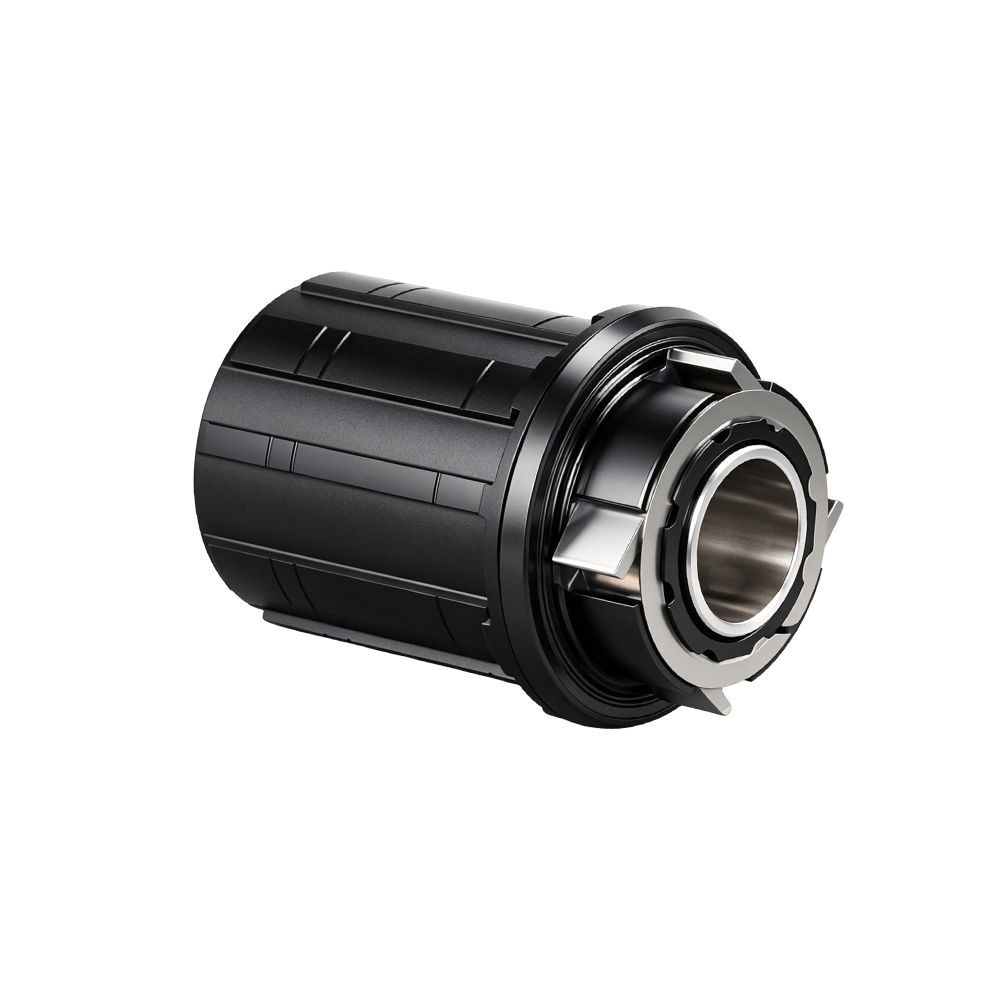

✓ Multiple Freehub Options
Compatible with HG, MSR, XDR, N3W, and CP.
✓ Road Thru-Axle Platform
Features 12×100mm front and 12×142mm rear spacing.
✓ Center Lock J-Bend Design
24H front and rear, 14G spokes, S&S steel bearings, and a total weight of 366.4g.
