Compared with conventional pawl systems, the larger contact area distributes drivetrain loads more evenly, reducing localized stress while improving durability, engagement stability, and pedaling efficiency under demanding riding conditions.

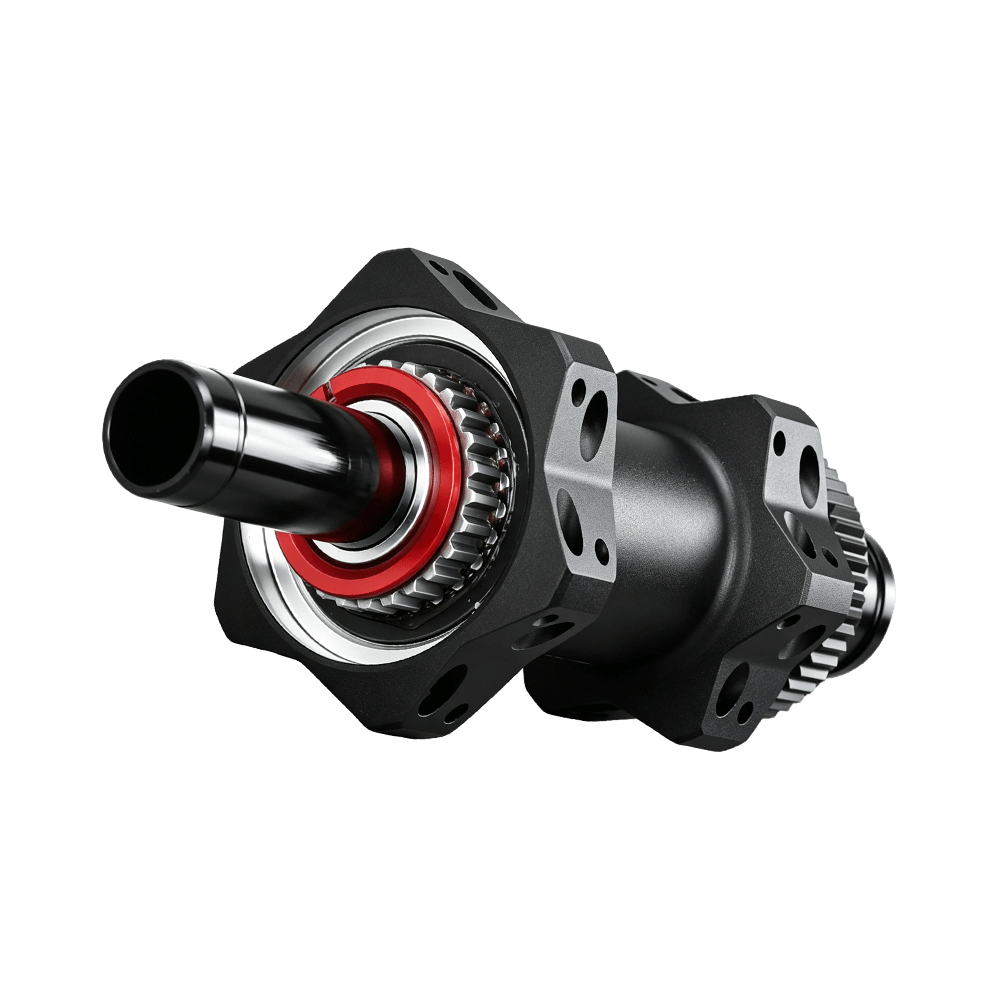

ARC's patented one-piece ratchet design integrates the engagement structure into a single precision-engineered component. The system increases structural rigidity, reduces overall weight, and improves machining accuracy. The simplified construction also enhances long-term reliability while making assembly and maintenance more efficient.
| # |
Type
|
Details
|
|---|---|---|
1 |
Hub Shell Material
|
AL6061-T6 aluminum alloy（100% Forging）
|
2 |
Axle Material
|
AL7075 aluminum alloy（100% Forging）
|
3 |

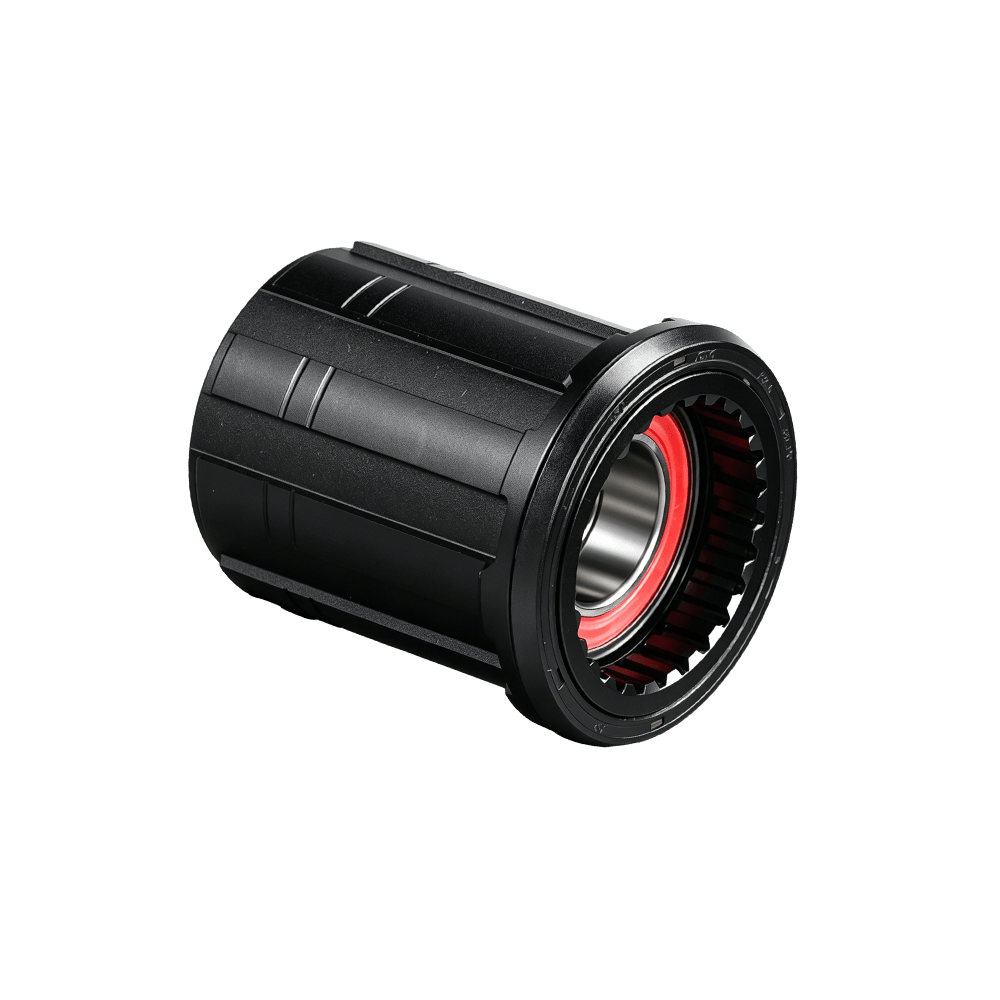

Freehub Body Material
|
AL7075 aluminum alloy（100% Forging）
|
4 |
End Cap Material
|
AL7075 aluminum alloy（100% Forging）
|
5 |
Disc Brake Interface
|
Road Bike Center Lock Disc Brake Straight-Pull Hub
|
6 |
Hole Count
|
F-24H/R-24H
|
7 |
Hole Diameter
|
14G
|
8 |
Surface Color
|
Sandblasted anodized black
|
9 |
Freehub Body Color
|
Anodized Black
|
10 |
Bearing Configuration
|
S&S steel bearings (standard), ENDURO, CeramicSpeed
|
11 |
Hub Structure
|
Ratchet-36T/Ratchet-54T
|
12 |
Freehub Body Standard
|
Shimano HG/Shimano Microspline(MS)-Road/SRAM XDR/Campagnolo Next 3/Campagnolo 11/12S
|
13 |
O.L.D.
|
F-12*100MM/R-12*142MM
|
14 |

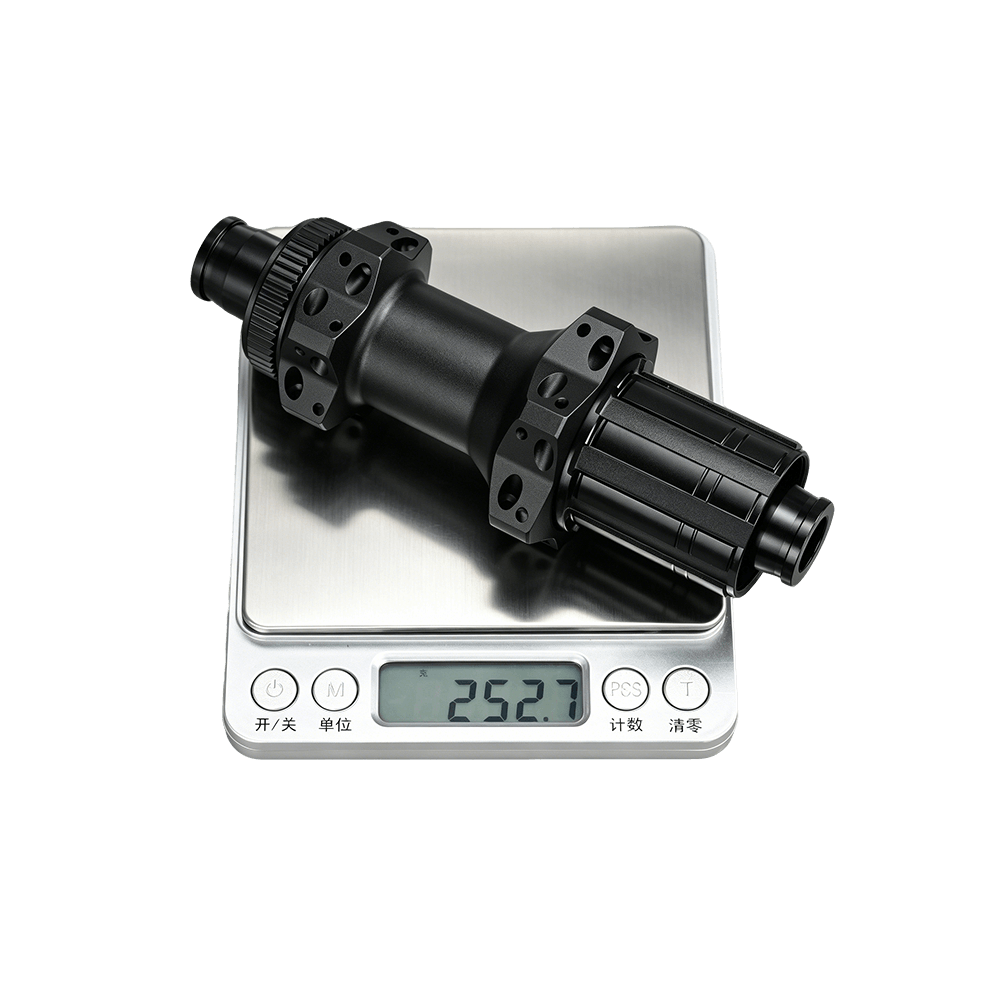

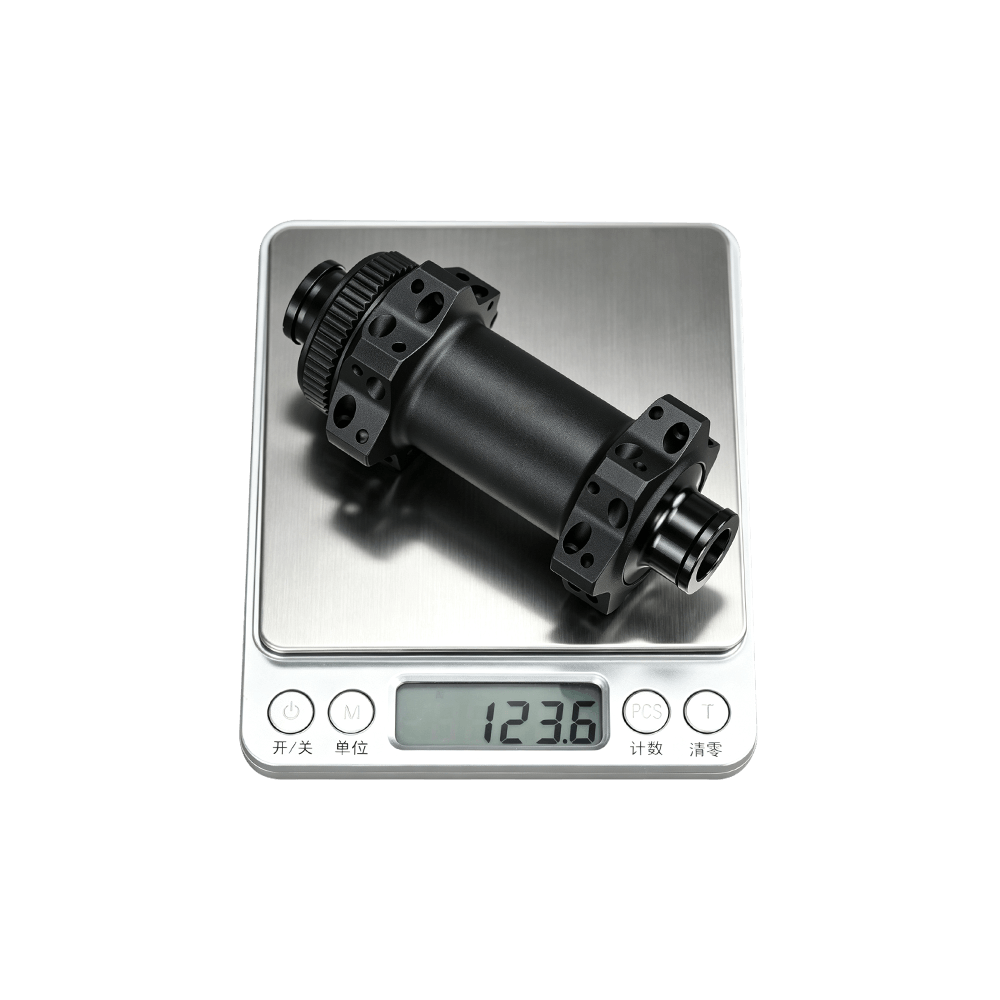

Weight
|
376.3g±5g
|
Engineered with high-strength aerospace-grade aluminum and a direct-pull spoke design to meet the demands of modern road disc brake wheel builds.
✓ High-Strength Aerospace-Grade 7075 Aluminum Alloy Axle & Freehub Body
Enhance structural stiffness and durability while maintaining a lightweight construction for reliable road performance.
✓ Integrated Ratchet Structure
ARC patented one-piece ratchet design improves structural strength, enhances load distribution, and delivers more reliable engagement performance under high-torque riding conditions.
✓ Direct-Pull Spoke Optimized Design
The 24-hole direct-pull configuration is engineered for efficient spoke integration, helping optimize wheel stiffness, spoke alignment, and overall wheel-building performance.
✓ Multiple Freehub Standards Available
HG, Microspline, XDR, N3W and CP options support a wide range of road drivetrain configurations.
✓ Road Disc Brake Compatibility
Designed for 12×100mm front and 12×142mm rear thru-axle standards, providing compatibility with modern road disc brake wheel systems.
