The upgraded pawl width increases by approximately 36%, creating a larger engagement surface for improved torque transfer and reduced stress concentration.
The drive ring width increases by approximately 21%, expanding the load-bearing area by approximately 35% and improving overall hub fatigue strength by approximately 30%.
| # |
Type
|
Details
|
|---|---|---|
1 |
Hub Shell Material
|
AL6061-T6 aluminum alloy（100% Forging）
|
2 |
Axle Material
|
AL7075 aluminum alloy（100% Forging）
|
3 |

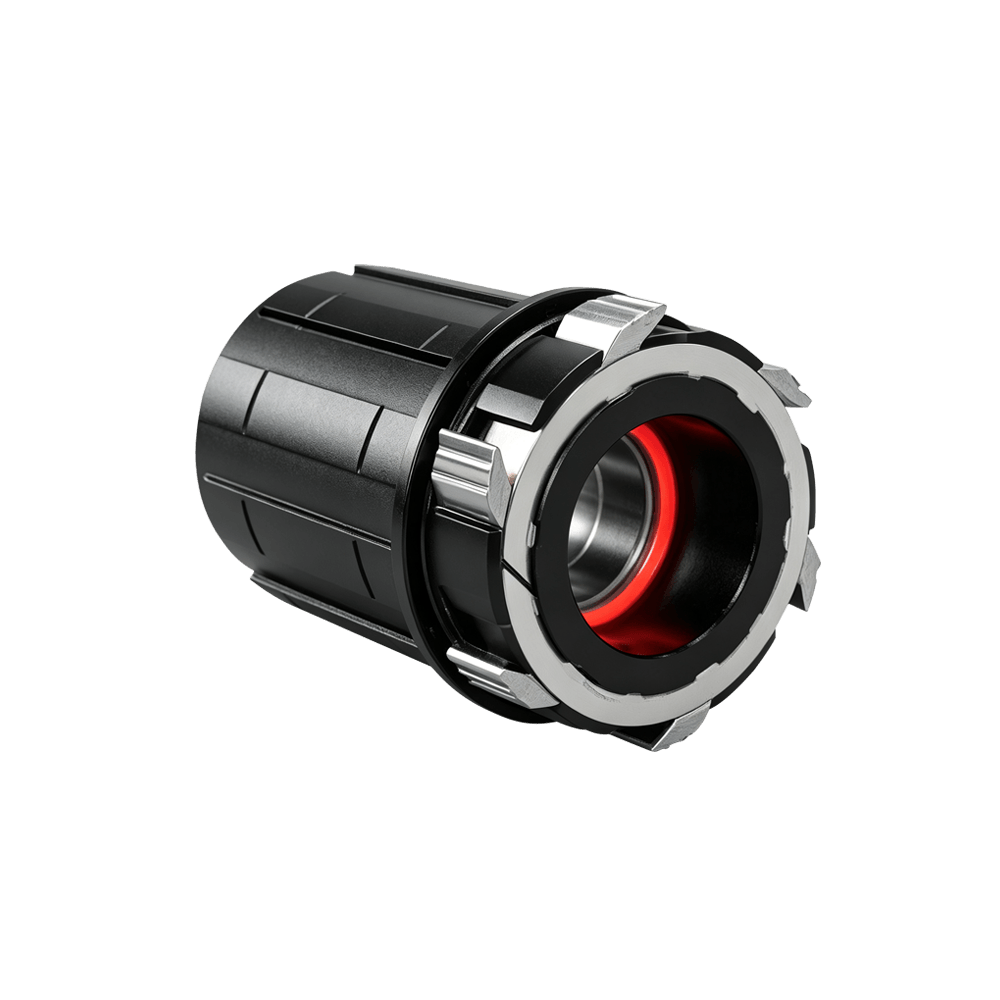

Freehub Body Material
|
AL7075 aluminum alloy（100% Forging）
|
4 |
End Cap Material
|
AL7075 aluminum alloy（100% Forging）
|
5 |
Disc Brake Interface
|
Mountain Bike Disc Brake Hub (J-Bend) / BOOST
|
6 |
Hole Count
|
F-28H;R-28H/F-32H;R-32H/F-36H;R-36H
|
7 |
Hole Diameter
|
14G
|
8 |
Surface Color
|
Anodized Black
|
9 |
Freehub Body Color
|
Anodized Black
|
10 |
Bearing Configuration
|
S&S steel bearings (standard), ENDURO, CeramicSpeed
|
11 |
Hub Structure
|
6 pawls 3 teeth
|
12 |
Freehub Body Standard
|
Shimano HG / Shimano Microspline (MS) / Sram XD
|
13 |
O.L.D.
|
F-15*110MM*R-12*148mm
|
14 |
Weight
|
427.7g±5g
|
✓ AL6061-T6 aluminum hub shell provides an optimized balance of strength and weight.
✓ High-Strength Aerospace-Grade 7075 Aluminum Alloy Axle, Freehub Body & End Caps enhance structural stiffness and durability.
✓ 6-pawl / 3-tooth freehub system with 120 clicks delivers rapid engagement response.
✓ Shimano HG, Microspline and SRAM XD freehub standards available for different drivetrain setups.
✓ BOOST axle configuration with 15×110mm front and 12×148mm rear spacing provides a wider platform for enhanced wheel stiffness and stability.
✓ Available in 28H / 32H / 36H spoke configurations with anodized black finish and customized OEM logo solutions.
✓ Available in 28H, 32H, and 36H with 14G spokes, Center Lock disc mounting, and S&S steel bearings.
