The upgraded pawl width increases by approximately 36%, creating a larger engagement surface for improved torque transfer and reduced stress concentration.

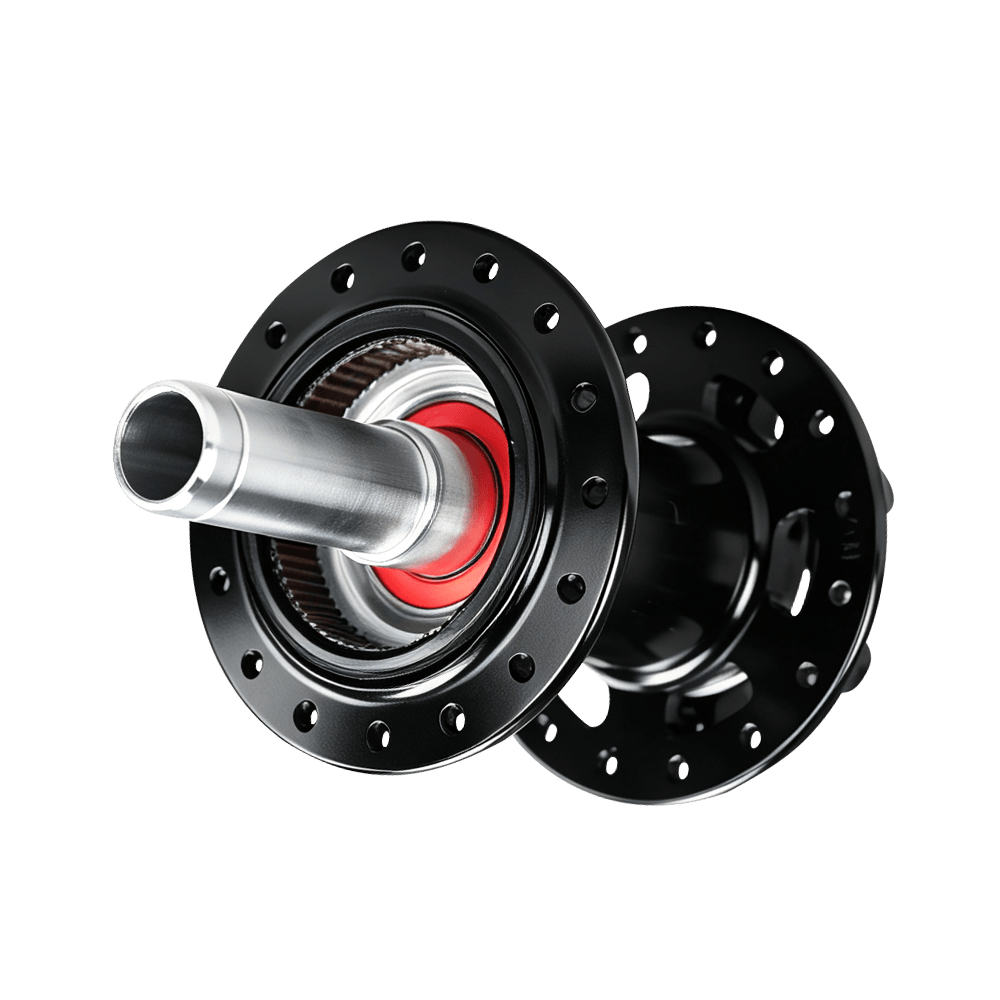

The drive ring width increases by approximately 21%, expanding the load-bearing area by approximately 35% and improving overall hub fatigue strength by approximately 30%.
| # |
Type
|
Details
|
|---|---|---|
1 |
Hub Shell Material
|
AL6061-T6 aluminum alloy（100% Forging）
|
2 |
Axle Material
|
AL7075 aluminum alloy（100% Forging）
|
3 |
Freehub Body Material
|
AL7075 aluminum alloy（100% Forging）
|
4 |
End Cap Material
|
AL7075 aluminum alloy（100% Forging）
|
5 |

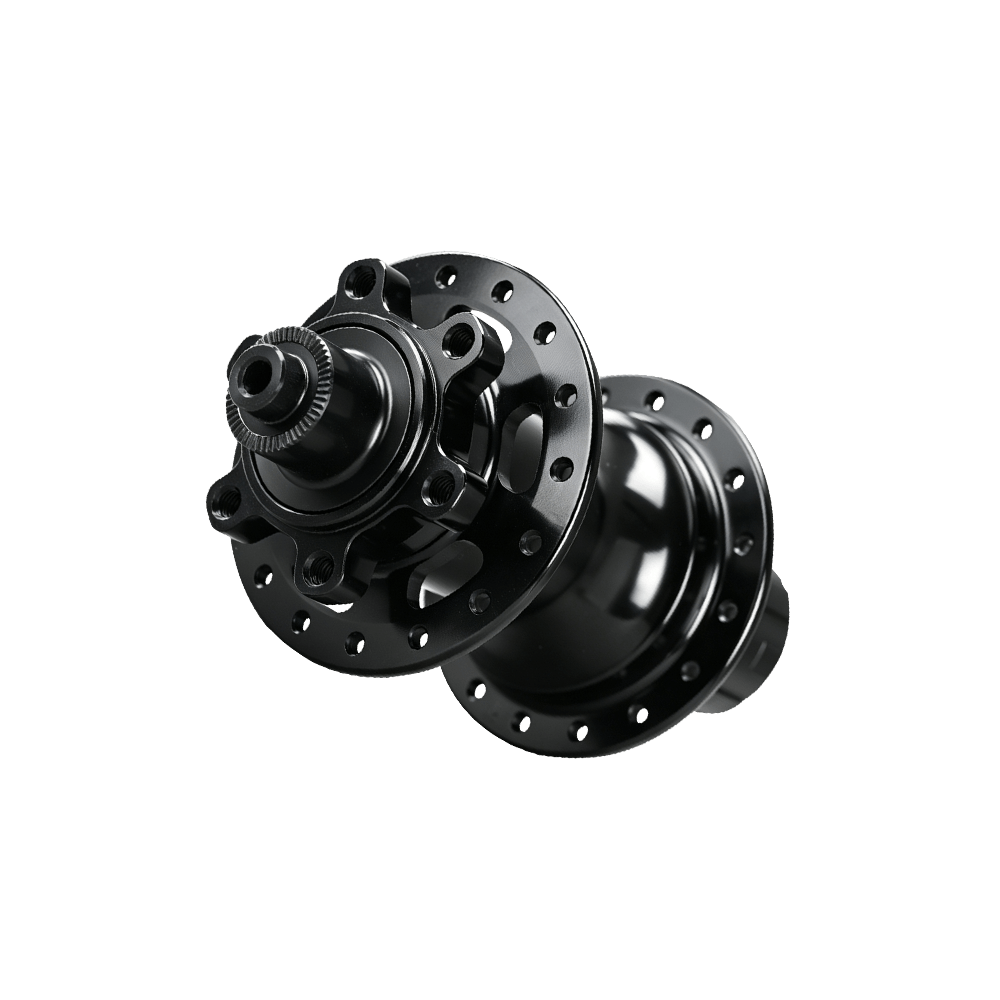

Disc Brake Interface
|
6-bolt disc brake hub with J-bend spokes
|
6 |
Hole Count
|
F-28/32/36H;R-28/32/36H
|
7 |
Hole Diameter
|
14G
|
8 |
Surface Color
|
Red,Orange,Purple,Blue,Gray,Gold,Rainbow,Black
|
9 |
Freehub Body Color
|
Anodized Black
|
10 |
Bearing Configuration
|
Front 2 pcs, Rear 4 pcs; S&S steel bearings (standard), ENDURO, CeramicSpeed
|
11 |
Hub Structure
|
6 pawls 3 teeth,120 clicks
|
12 |
Freehub Body Standard
|
Shimano HG / Shimano Microspline (MS) / Sram XD
|
13 |
Quick Release Included
|
QR001 MTB quick release
|
14 |
O.L.D.
|
F-9*100MM/R-10*135MM;F-15*100MM/R-12*142MM
|
15 |

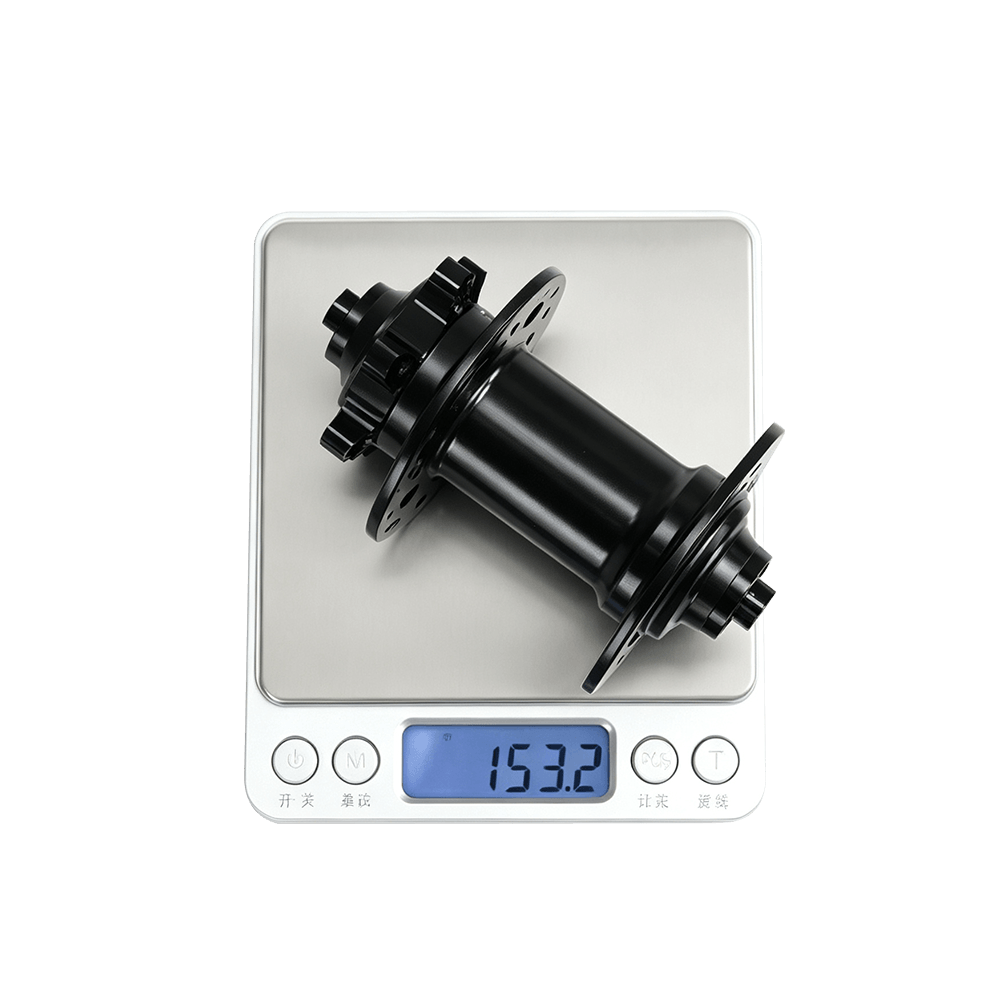

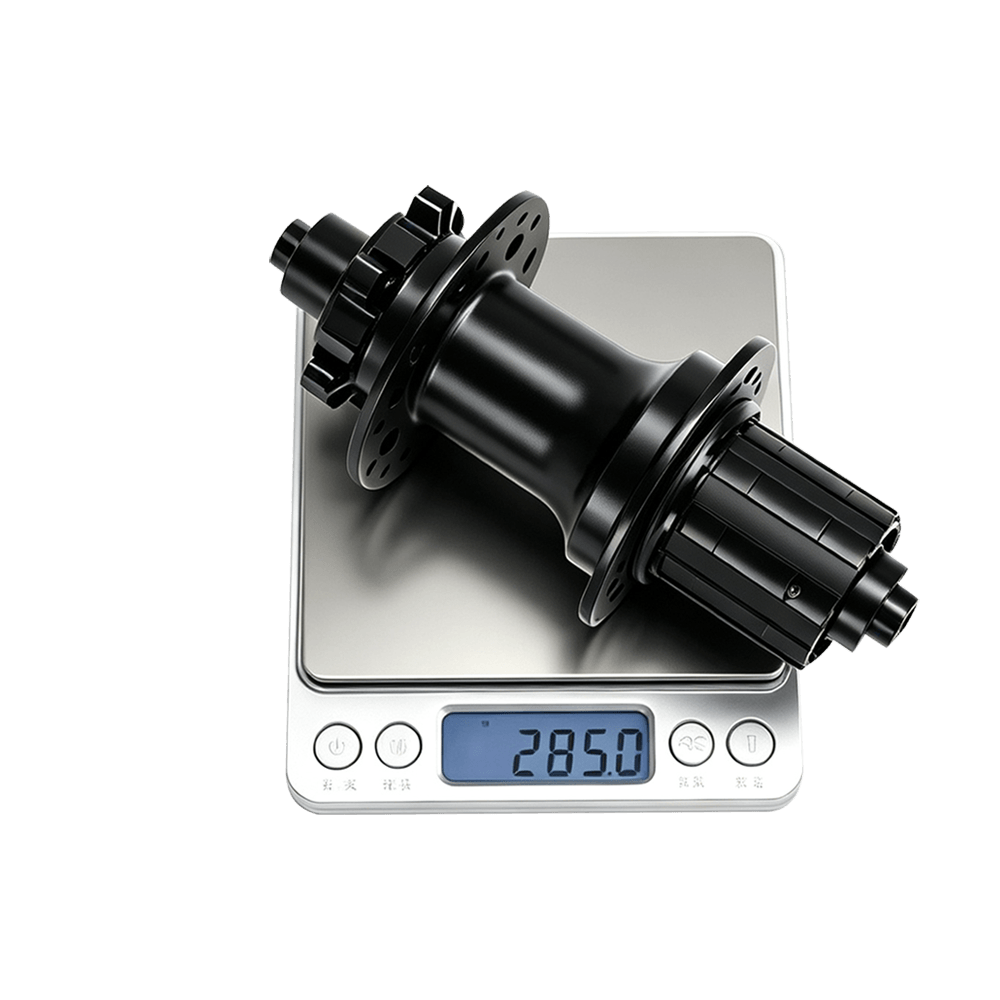

Weight
|
Total:438.2g±5g
|
Engineered with premium materials and adaptable design to meet the demands of modern MTB builds.
✓ High-Strength Aerospace-Grade 7075 Aluminum Alloy Axle & Freehub Body
Enhance structural stiffness and durability for reliable performance.

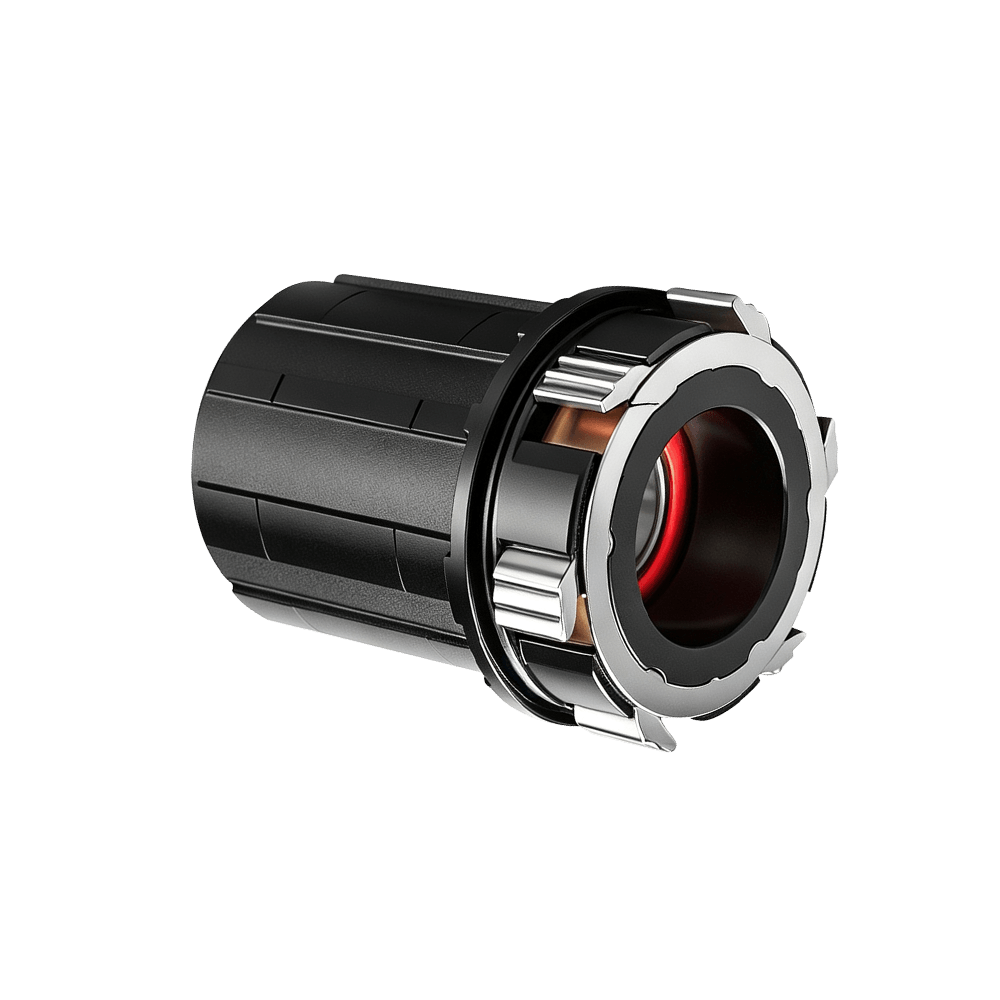

✓ 6-Pawl/3-Tooth Freehub System (120 Clicks)
Delivers rapid engagement response for precise power transfer.
✓ Multiple Freehub Standards Available
Shimano HG, Microspline and SRAM XD for different drivetrain setups
✓ Compatible with MTB Axle Configurations
Including QR and Thru Axle for wide frame compatibility.
✓ Multiple Spoke Options & Customization
Available in 28H/32H/36H with customized anodized colors and OEM logo solutions.
