ARC MT-006F/R 32H Quick Release MTB Disc Hub Set

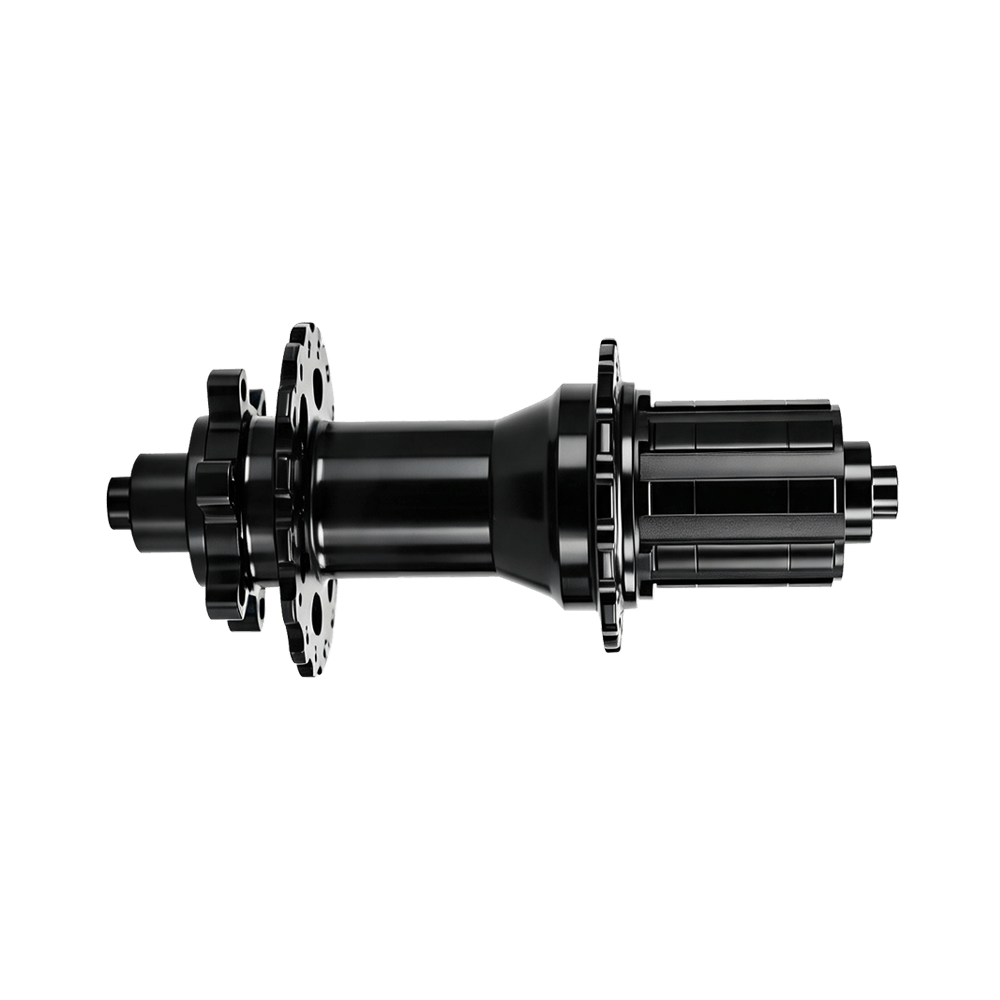

ARC MT-006F/R 32H Quick Release MTB Disc Hub Set 1

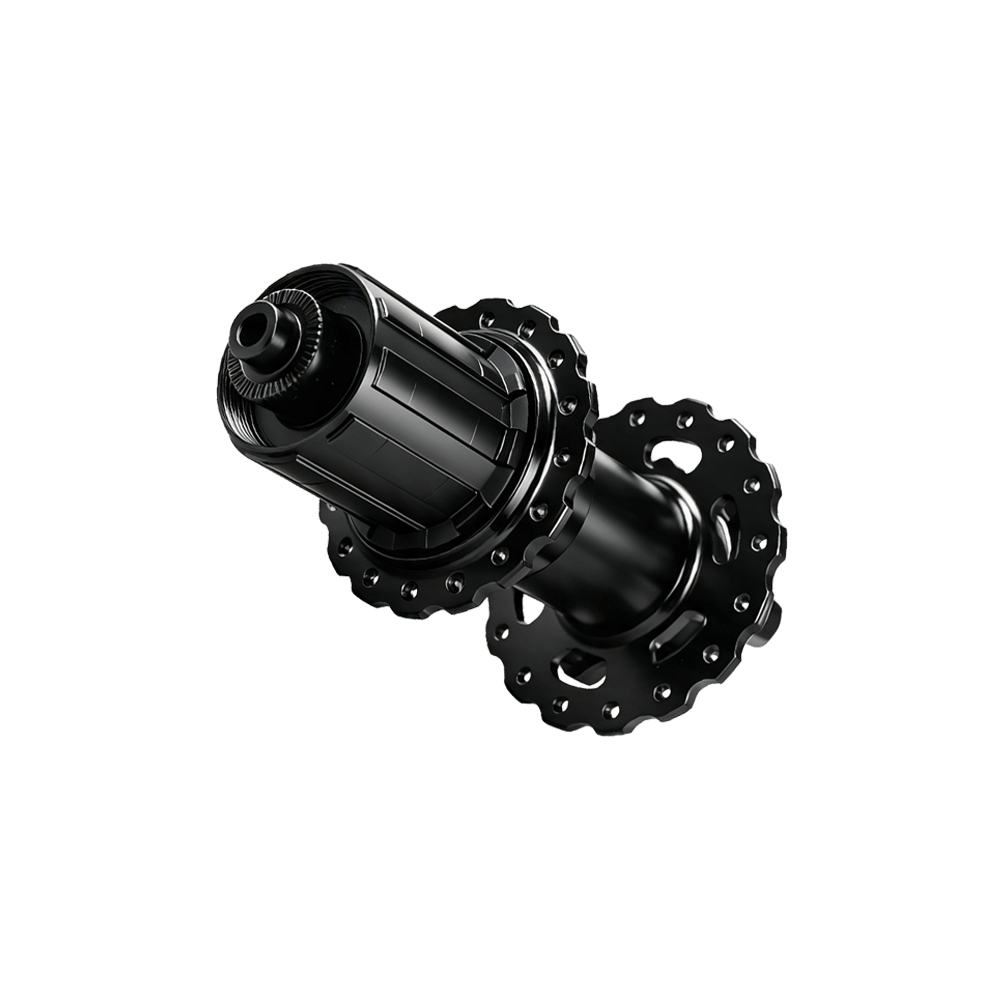

ARC MT-006F/R 32H Quick Release MTB Disc Hub Set 2

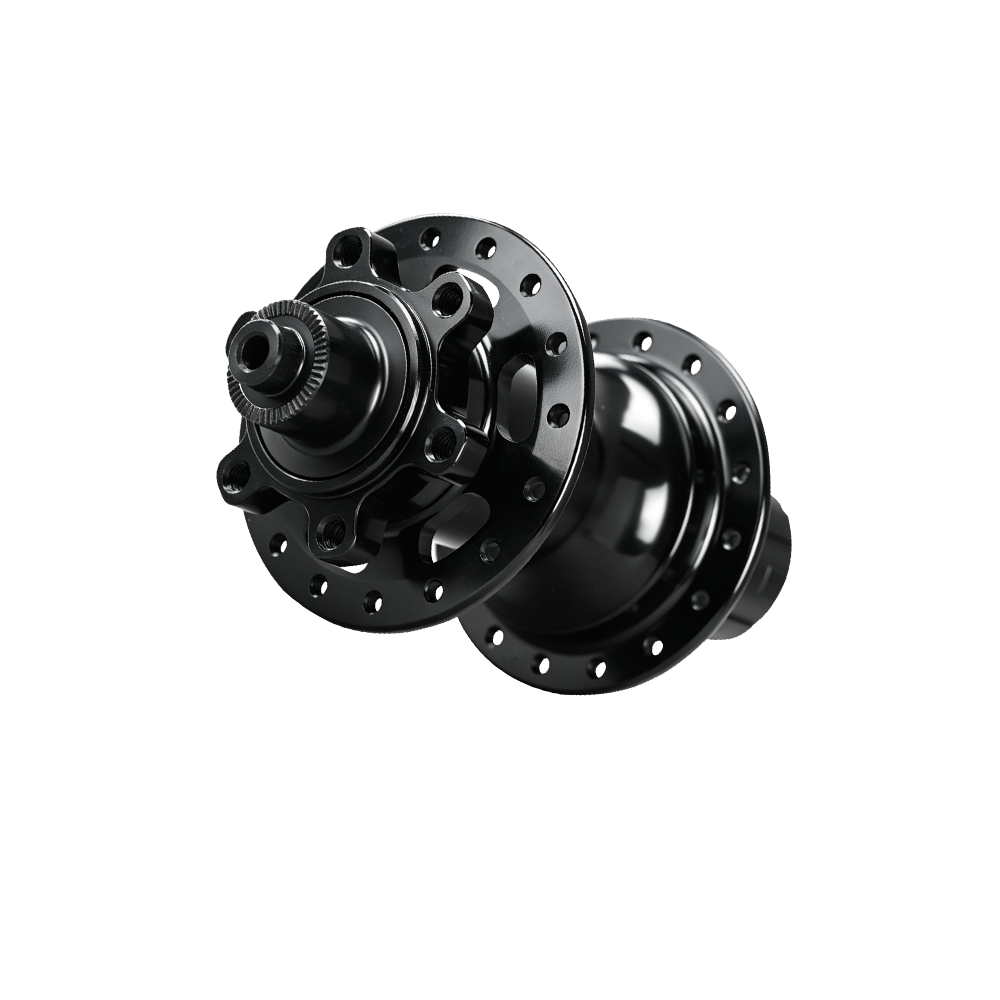

ARC MT-006F/R 32H Quick Release MTB Disc Hub Set 3ARC MT-006F/R 32H Quick Release MTB Disc Hub Set 3

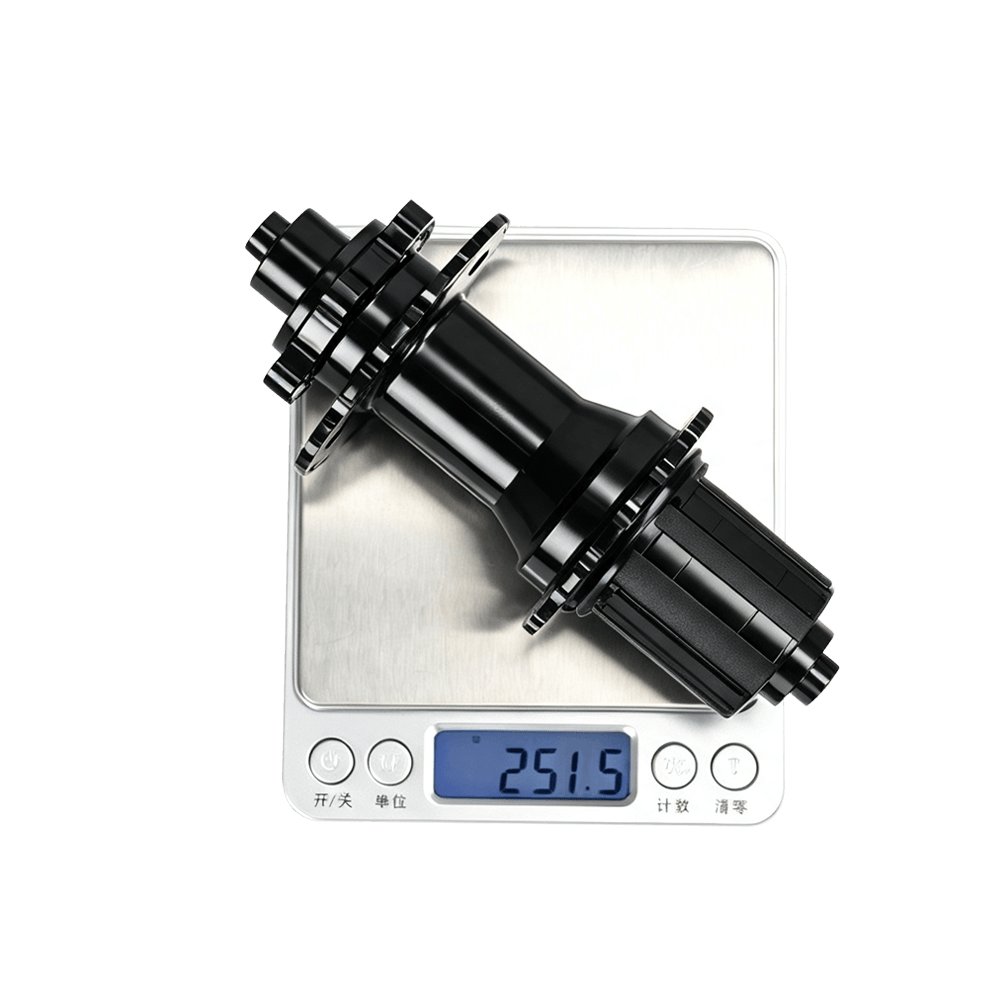

MT-001FG/003RC 32H 6-Bolt QR MTB Hub Set

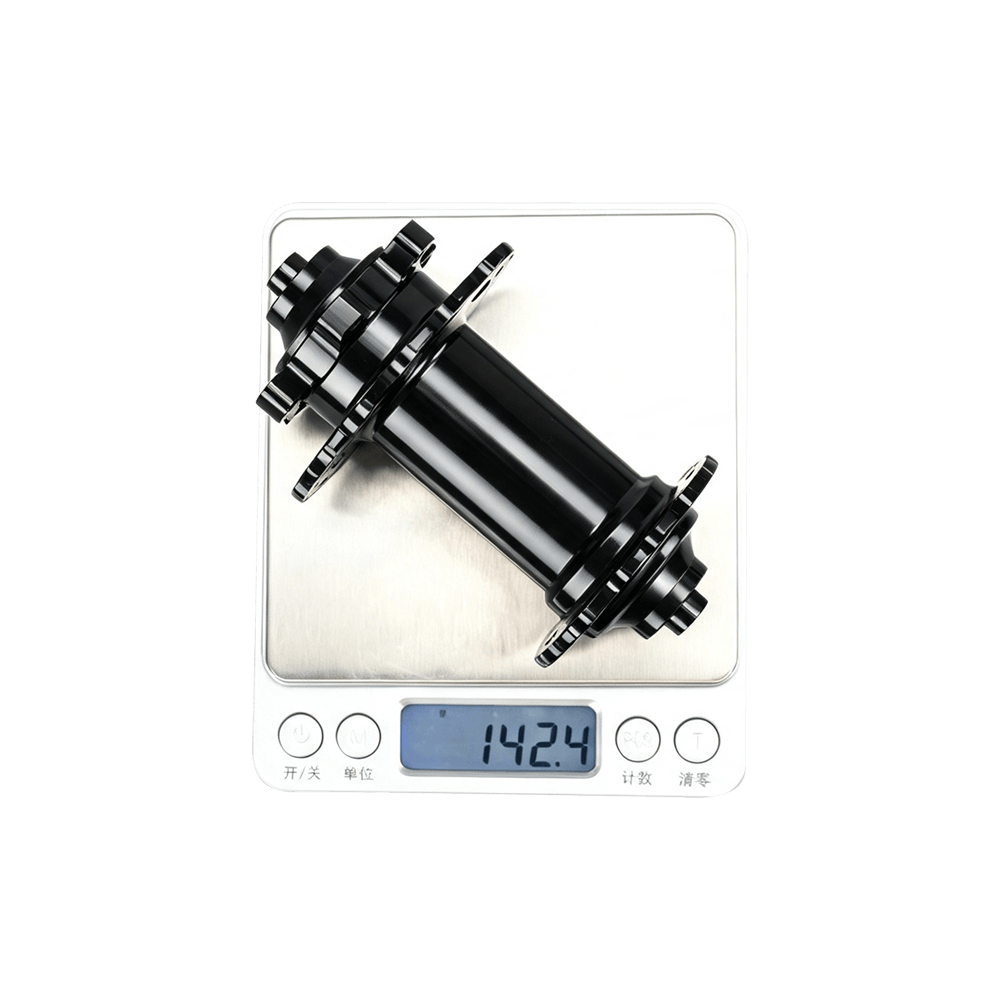

ARC MT-006F/R 32H Quick Release MTB Disc Hub Set 4

ARC MT-006F/R 32H Quick Release MTB Disc Hub Set

MT-006F/R

Specification

Freehub system

Spoke holes

Bearing

Clear

Inquiry

Product Details

Lightweight MTB Performance. Precision in Every Detail.

Designed for modern MTB builds, the MT-006F/R combines a lightweight 392g hubset with high-strength AL7075 aluminum components and a responsive 4-pawl/3-tooth freehub system. The specially CNC-machined hub shell adds a distinctive technical aesthetic while maintaining a strong and reliable structure for everyday trail riding.

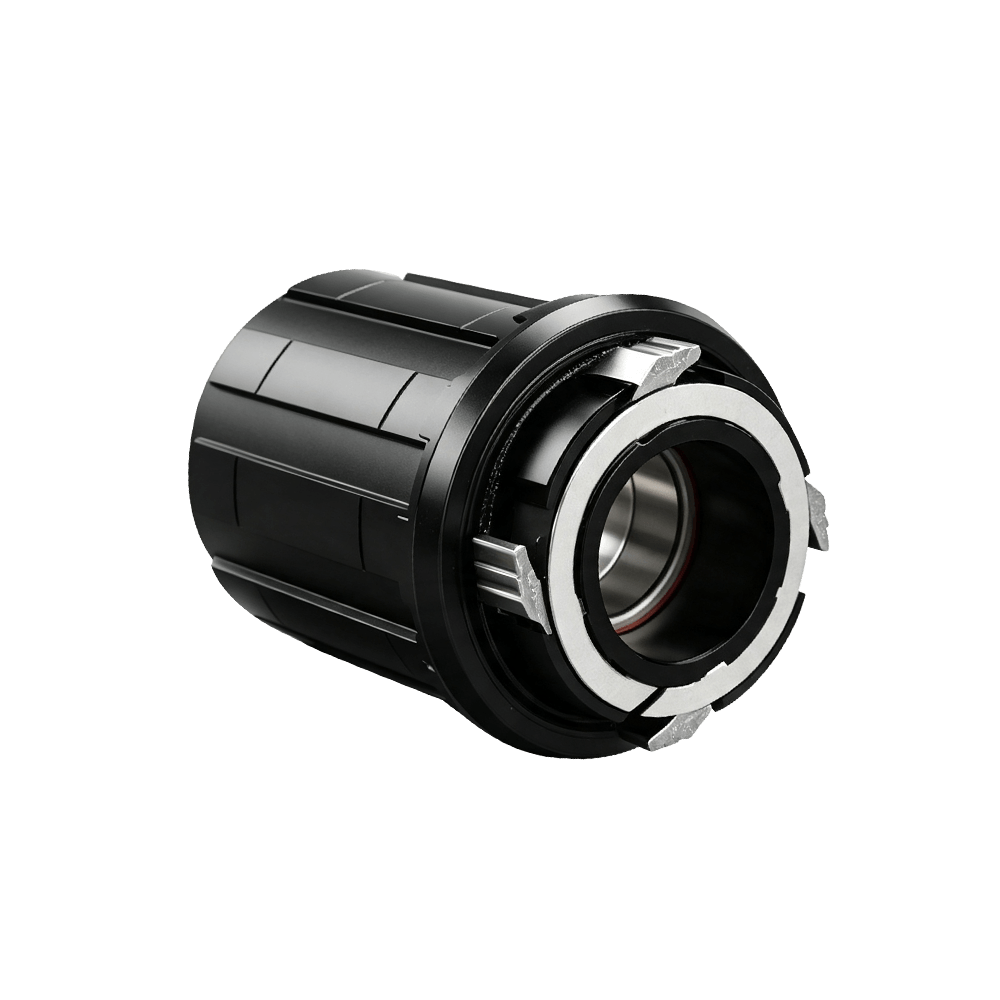

4-Pawl / 3-Tooth Freehub System

Fast Engagement. Reliable Power Transfer.

The 4-pawl/3-tooth engagement system provides a responsive drivetrain connection with multiple engagement points for efficient power transfer and dependable performance on varied MTB terrain.

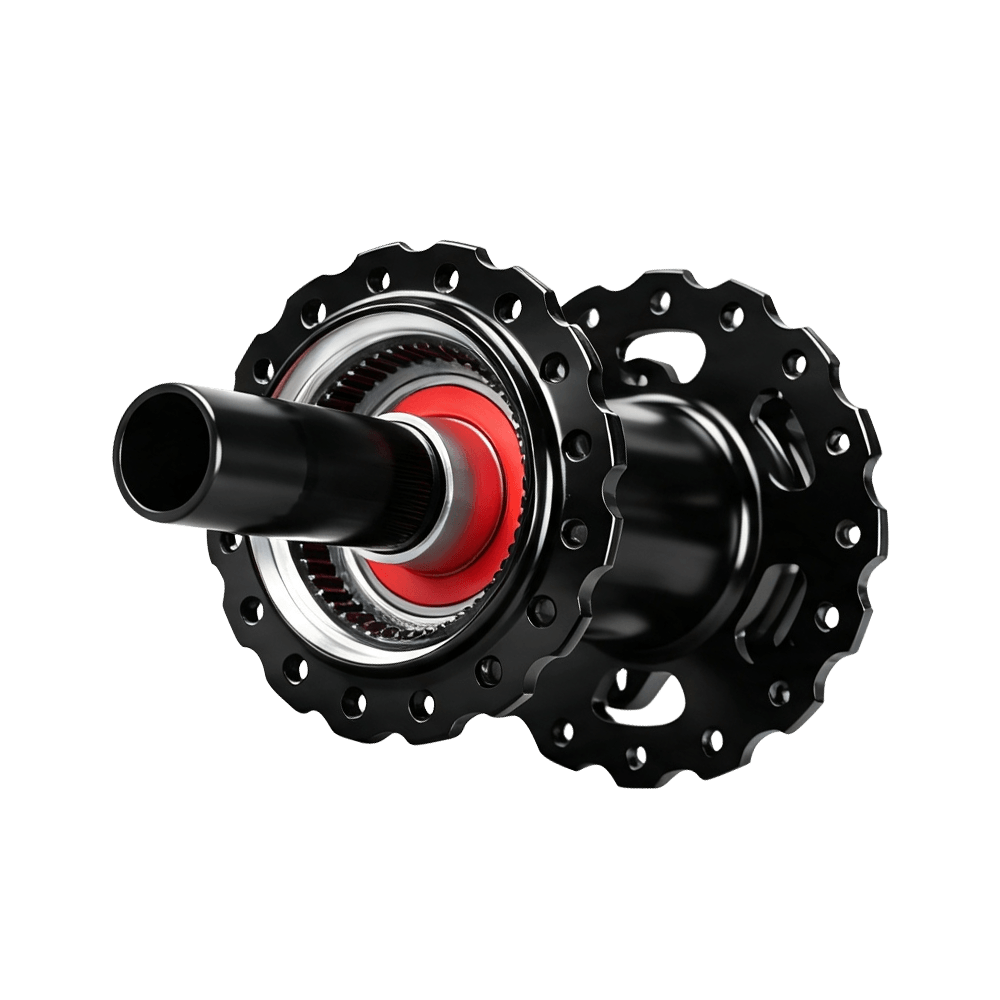

Precision CNC-Machined Hub Shell

Distinctive Design with Functional Precision

The specially machined decorative edge design creates a distinctive technical appearance while maintaining the structural integrity of the hub shell. CNC-machined details bring greater visual refinement to the overall wheel build.

Technical Specification

#	Type	Details
1	Hub Shell Material	AL6061-T6 aluminum alloy（100% Forging）
2	Axle Material	AL7075 aluminum alloy（100% Forging）
3	Freehub Body Material	AL7075 aluminum alloy（100% Forging）
4	End Cap Material	AL7075 aluminum alloy（100% Forging）
5	Disc Brake Interface	6-bolt disc brake hub with J-bend spokes
6	Hole Count	F-28H/32H/36H;R-28H/32H/36H
7	Hole Diameter	14G
8	Surface Color	Anodized Black
9	Freehub Body Color	Anodized Black
10	Bearing Configuration	S&S Steel Ball Bearings
11	Hub Structure	4 pawls 3 teeth
12	Freehub Body Standard	Shimano HG
13	Quick Release Included	QR001 MTB quick release（Note: The thru-axle version does not include a quick-release skewer.）
14	O.L.D.	F-9100MM/R-10135MM;F-15100MM/R-12142MM
15	Weight	393.9g±5g

Precision Materials.

Flexible Configuration.

Engineered with high-strength aluminum components and versatile axle configurations to meet the demands of modern MTB builds.

✓ High-Strength Aerospace-Grade 7075 Aluminum Components
AL7075 aluminum is used for the axle, freehub body and end caps, delivering a strong and lightweight foundation for reliable MTB performance.

✓ 4-Pawl / 3-Tooth Freehub System
The multi-pawl engagement design provides responsive engagement and dependable power transfer for confident drivetrain performance.

✓ Precision CNC-Machined Hub Shell
A distinctive CNC-machined decorative edge design adds refined technical detailing while maintaining a clean and durable hub structure.

✓ Multiple MTB Axle Configurations
Available in F-9×100mm / R-10×135mm and F-15×100mm / R-12×142mm configurations for compatibility with different MTB frame standards.

✓ Multiple Spoke Hole Options
Available in 28H, 32H and 36H configurations, providing flexible wheel-building options for different MTB applications.

✓ Lightweight 392g Hubset
The optimized construction keeps the complete hubset weight at approximately 392g, balancing low weight with reliable structural performance.”
