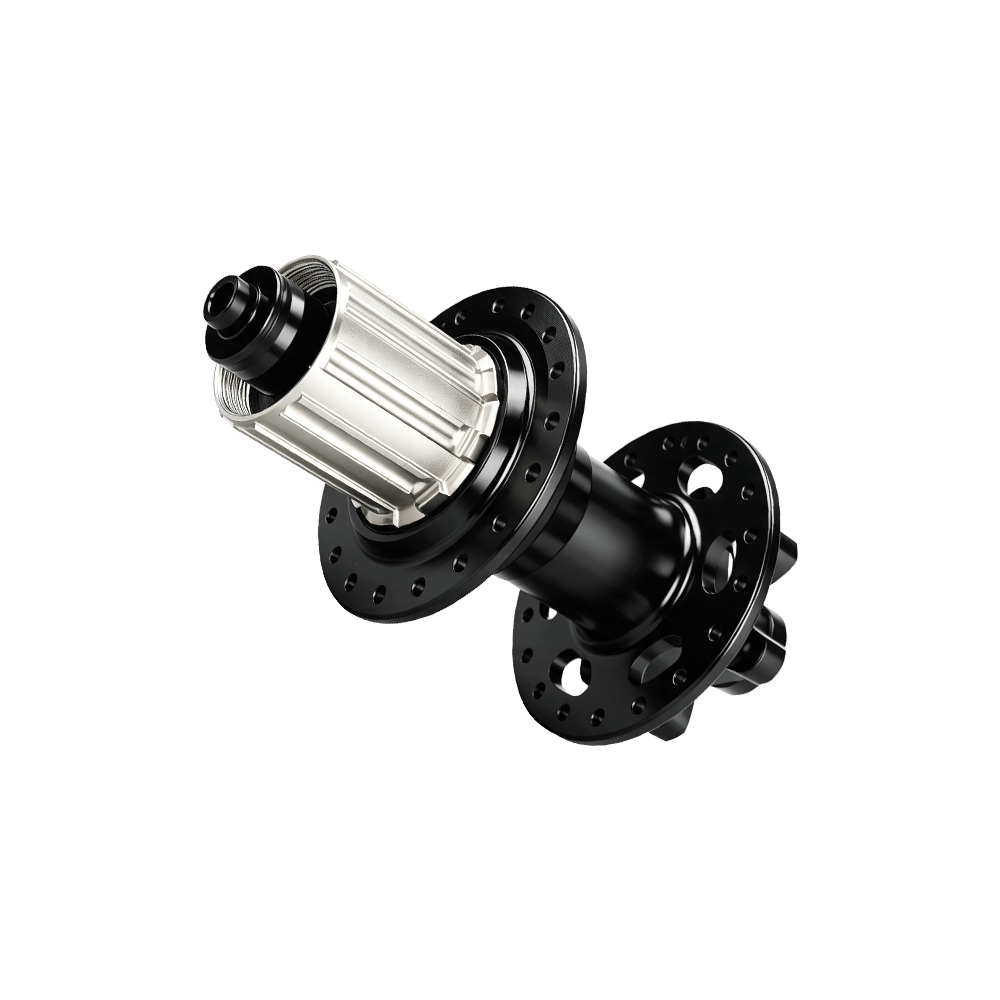

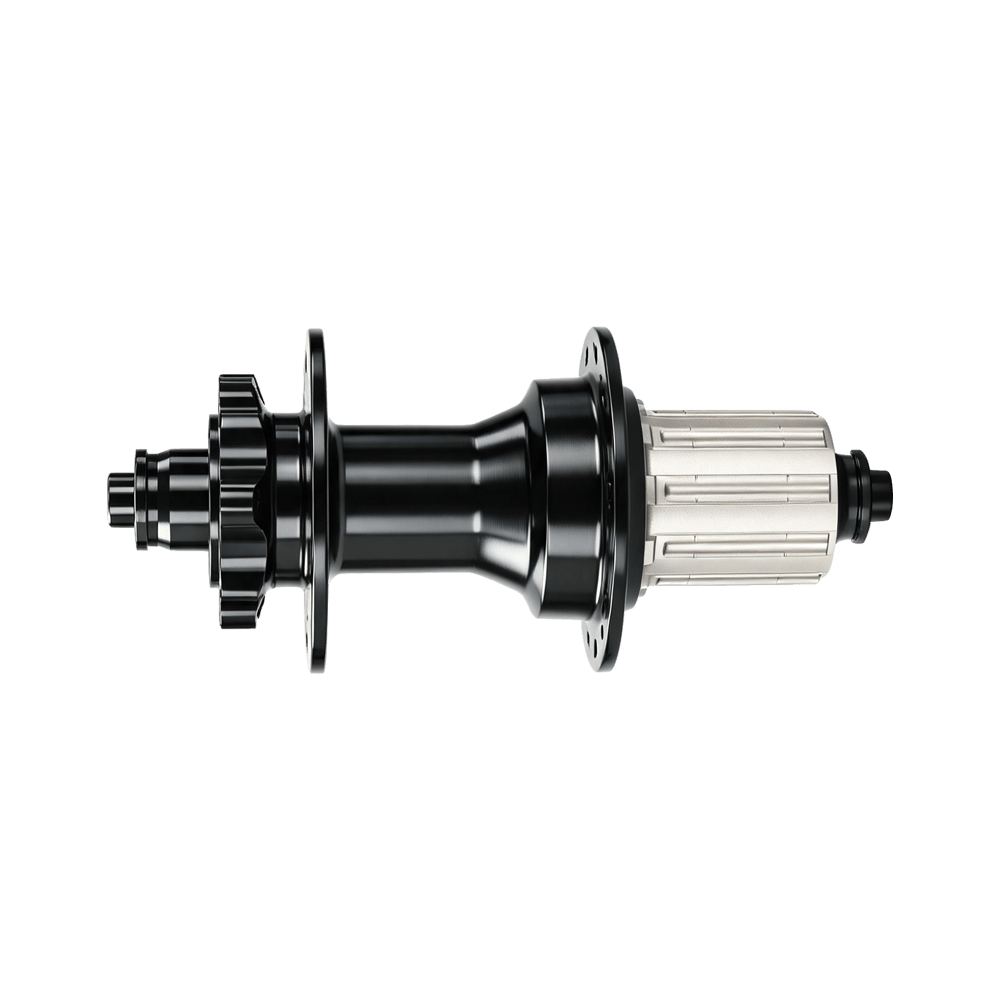

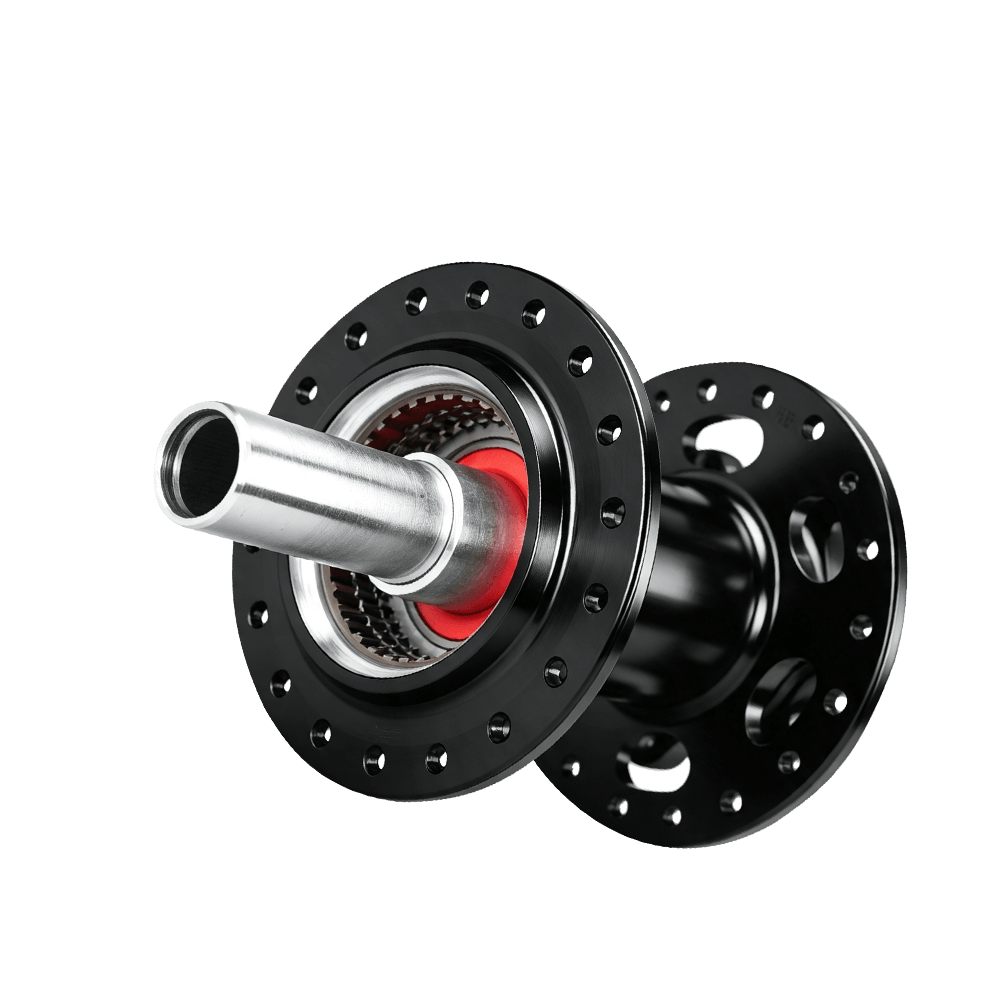

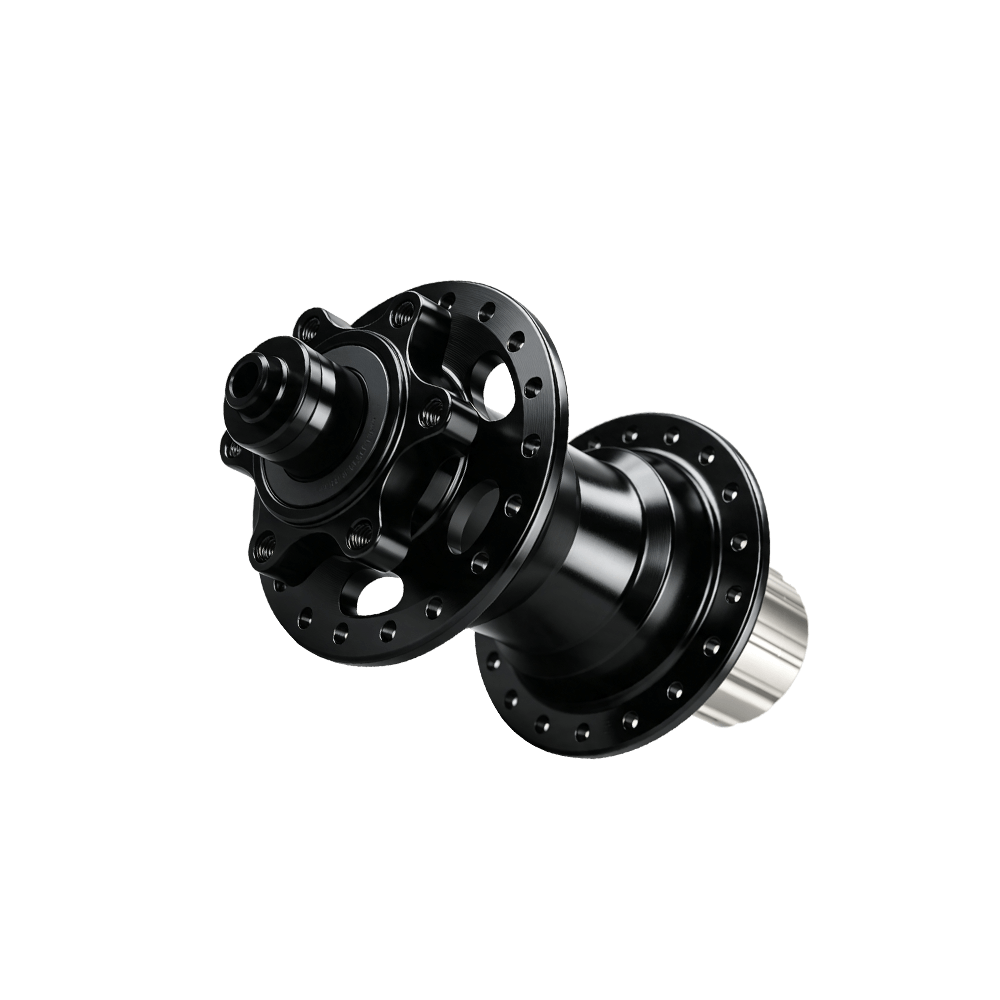

ARC MT-001FS/RS 28/32/36H 6-Bolt QR MTB Hub Set

ARC MT-001FS/RS 28/32/36H 6-Bolt QR MTB Hub Set

MT-001FS/RS

Specification

Freehub system

Spoke holes

Bearing

Clear

Inquiry

Product Details

Reliable MTB Performance. Built for Everyday Riding.

Designed for entry-level MTB applications, the MT-001FS/RS combines a proven 3-pawl freehub system with a durable aluminum construction to deliver dependable power transfer and long-term reliability for everyday trail riding.

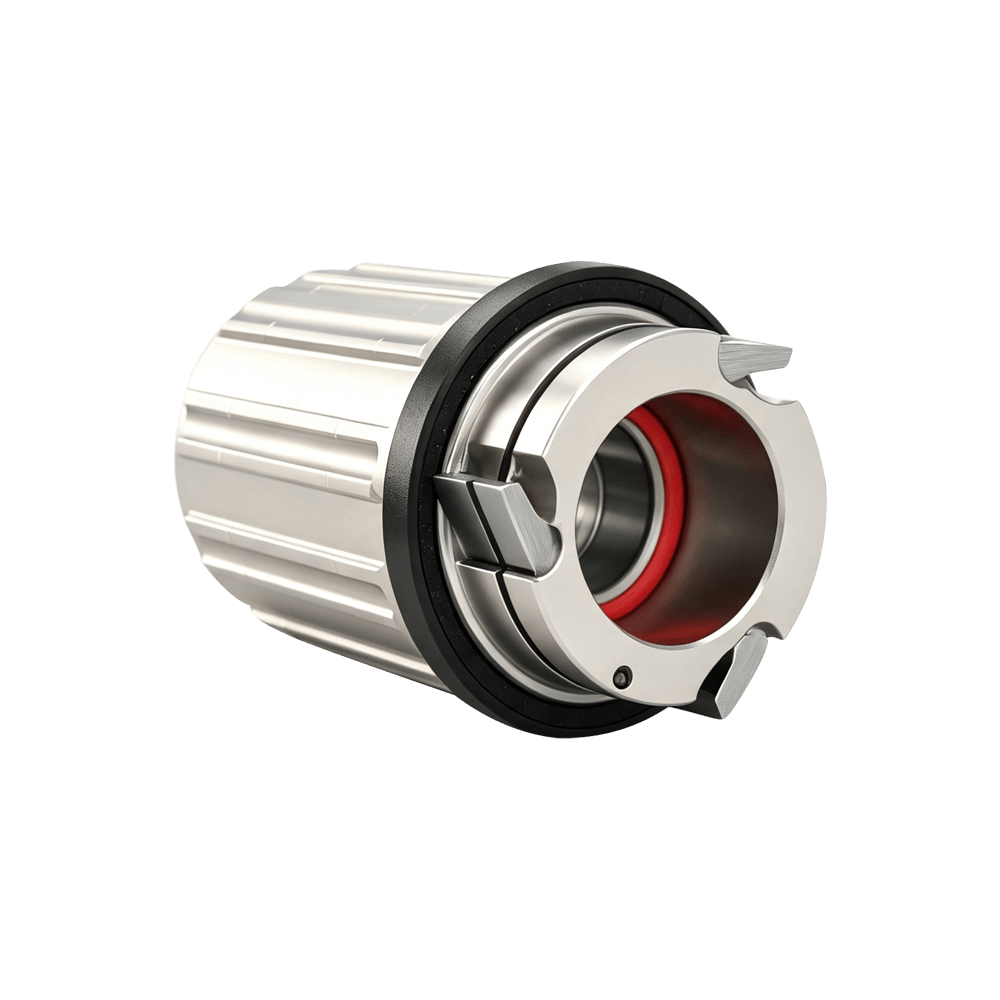

3-Pawl Single-Tooth Freehub System

Simple. Reliable. Proven.

The 3-pawl single-tooth engagement design provides a straightforward and dependable drive system, delivering stable power transfer while maintaining a simple structure for easy maintenance and reliable everyday performance.

Durable Aluminum Construction

Lightweight Strength for MTB Riding

Built with AL6061-T6 aluminum for the hub shell and high-strength AL7075 aluminum for the axle, freehub body and end caps, providing a strong and durable foundation for everyday mountain bike use.

Technical Specification

#	Type	Details
1	Hub Shell Material	AL6061-T6 aluminum alloy（100% Forging）
2	Axle Material	AL7075 aluminum alloy（100% Forging）
3	Freehub Body Material	AL7075 aluminum alloy（100% Forging）
4	End Cap Material	AL7075 aluminum alloy（100% Forging）
5	Disc Brake Interface	MTB 6-bolt disc brake J-bend hub
6	Hole Count	F-28H/R-28H;F-32H/R-32H;F-36H/R-36H
7	Hole Diameter	14G
8	Surface Color	Anodized Black
9	Freehub Body Color	Silver steel tower base
10	Bearing Configuration	S&S(Standard)\|Enduro\|CeramicSpeed
11	Hub Structure	3 pawls Single tooth
12	Freehub Body Standard	Shimano HG / Shimano Microspline (MS) / Sram XD
13	Quick Release Included	QR001 MTB quick release（Note: The thru-axle version does not include a quick-release skewer.）
14	O.L.D.	74mm ; 130mm
15	Weight	537.1g

Precision Materials.

Flexible Configuration.

Built with carefully selected aluminum components and versatile configuration options to meet the needs of entry-level MTB builds.

✓ High-Strength AL7075 Aluminum Axle & Freehub Body
High-strength AL7075 aluminum components provide reliable structural support and durability for everyday MTB riding.

✓ 3-Pawl Single-Tooth Freehub System
A proven and straightforward engagement design delivers dependable power transfer with a simple structure for easy maintenance.

✓ Multiple Freehub Standards Available
Shimano HG, Microspline and SRAM XD options support different drivetrain configurations.

✓ Standard MTB QR Configuration
Compatible with F-9×100mm / R-10×135mm spacing and equipped with the QR001 MTB quick-release system.

✓ Multiple Spoke Hole Options
Available in 28H, 32H and 36H configurations, providing flexible wheel-building options for different MTB applications.
